With all the trends in networking, how could we fulfill the demands of

Low Latency, High Computing, High Bandwidth, More Connectivity, PoE Support, and IP Security?

We bring you our answer:

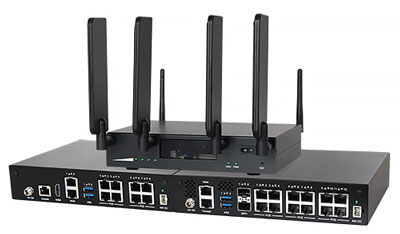

ANS series, the Advanced Network Solutions.

Intel Platform

With Intel CPU platform, ANS series implements Intel Apollo Lake CPU with low power consumption and Intel Denverton CPU with high computing efficiency to fulfill the requirements from edge to server.

Wireless

In the system, in addition to the physical Copper & Fiber and Ethernet connection, it also supports rich wireless transmission interfaces such as WiFi, 3G, LTE module and LPWAN: LoRa, ZigBee.

DATA COM

In 1/2 width of the cabinet, it provides up to 12 high-density Ethernet GbE Ports. What’s more, 2x 10GbE Fiber Ports are euipped on Intel Denverton system to support more uplink network bandwidth.

Smart Design

Compare to the solutions with equivalent level in the market, ANS series is highly competitive with its up-to-12 LAN ports support. Dimension-wise, its compact design in size makes it feasible to configure two ANS devices in each rack unit.

IoT Solution

With the development of AI under mature IoT networks, edge-computing with powered devices enables us to implement the on-site solution and process the data in short time. ANS series provides 8-12 LAN ports, each of which can be upgraded as PoE.

Software & IPSec

For the IoT solution, the software development process can be shortened while maintenance efforts can be drastically reduced with our PoE API and GUI. To enhance the security of all types of infrastructures, Intel features DPDK and QAT in her latest product selections.

PRODUCTS

ANS-12000/12001

ANS-12000/12001

Intel® Amston Lake x7433RE (4C) / x7835RE (8C) Processor
Up to 8 E-cores with Intel® UHD Graphics (Xe-based) and Intel® DL Boost support
1x DDR5 4800 SO-DIMM (ECC / non-ECC) up to 32GB
Compact fan-less system with 5G & WiFi 6 readiness

ANS-12002/12003

ANS-12002/12003

Intel® Amston Lake x7405C / x7809C Processor with up to 8 Efficient Cores
Support for Intel® DL Boost (INT8) and AVX2 acceleration
1x DDR5 4800 SO-DIMM (ECC / non-ECC) up to 32GB
Compact fan-less system designed for SD-WAN applications

ANS-9A44S

ANS-9A44S

Intel® Atom® C3758R (8C) / C3558R (4C) Processor (Denverton Refresh)
4x 10GbE SFP+ and 4x 2.5GbE RJ45 ports with bypass
2x DDR4 2400 SO-DIMM (ECC / non-ECC) up to 64GB
Multiple expansion options including M.2 slots and PCIe x4

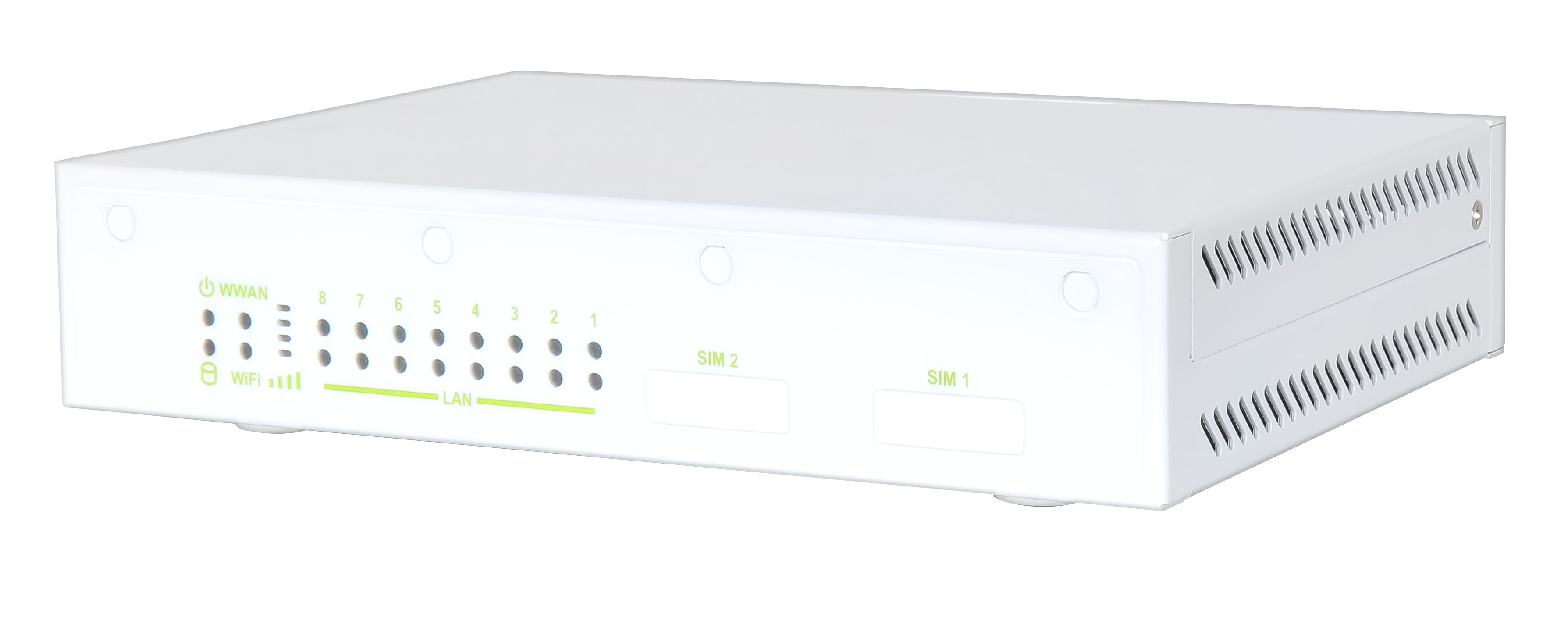

ANS-9142 / ANS-9141

ANS-9142S

Intel® Atom® C3436L (4C) / C3338R (2C) Processor (Denverton Refresh)
2x 2.5GbE + 2x GbE RJ45 with bypass, 2x GbE RJ45/SFP combo ports
1x DDR4 2400 ECC / non-ECC SO-DIMM up to 32GB
Compact network system with 5G & WiFi 6 readiness

ANS-7A44E

ANS-7A44E

AMD V3C18I Processor with 8 cores and 16 threads
6x 2.5GbE RJ45 with bypass and 2x 10GbE SFP+ ports
2x DDR5 4800 SO-DIMM up to 64GB
Fanless desktop platform with wide operating temperature range

ANS-7A44G

ANS-7A44G

AMD V3000 Processor series with up to 8 cores and 16 threads
6x 2.5GbE RJ45 with bypass and 2x 10GbE SFP+ ports
2x DDR5 4800 SO-DIMM up to 64GB
Multiple M.2 expansion slots for storage and connectivity modules

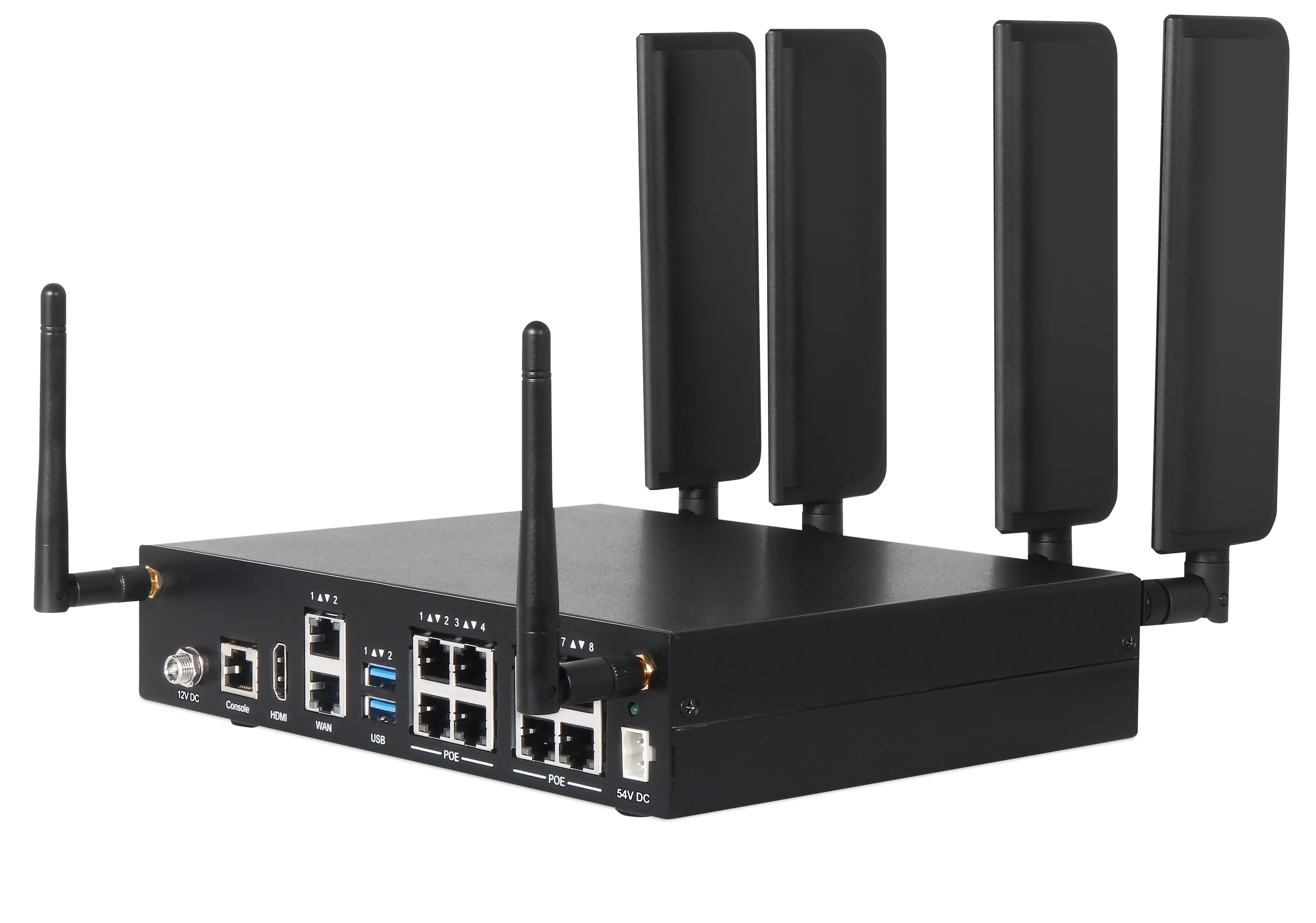

ANS-2121/41/42P

ANS-2121/41/42P

Intel® Atom® x5-E3940 (4C) / E3930 (2C) Processor (Apollo Lake)
Up to 10x GbE RJ45 ports with optional PoE+ support
1x DDR3L ECC SO-DIMM up to 8GB, onboard 16GB eMMC
Compact 2-in-1U rackmount design with 5G & WiFi 6 readiness

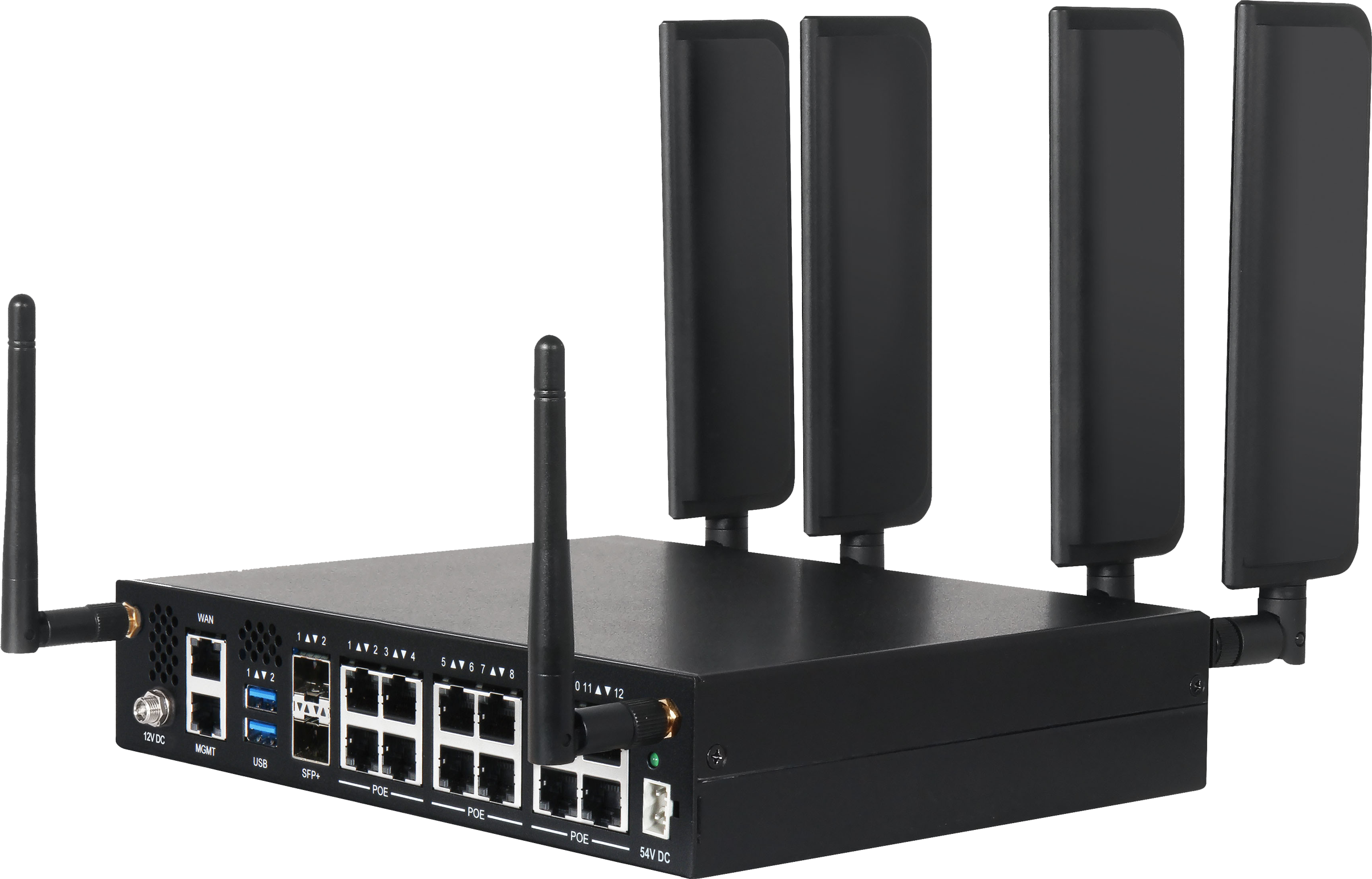

ANS-8A62/64P

ANS-8A62/64P

Intel® Atom® C3758 (8C) / C3558 (4C) Processor (Denverton)
2x 10Gb SFP+, 13x GbE ports with optional PoE+ support
2x DDR4 2400/2133 ECC SO-DIMM up to 32GB
Compact 2-in-1U rackmount design with 5G & WiFi 6 readiness

ANS-9A44F/42F

ANS-9A44F/42F

Intel® Atom® C3758R (8C) / C3558R (4C) Processor
2x 10GbE SFP+, 4x combo ports, and 4x GbE RJ45 (including PoE+ support)
2x DDR4 1866 SO-DIMM (ECC / non-ECC) up to 64GB
Compact 2-in-1U rackmount system with multiple M.2 expansion options

Application Value & Added Advantages

Telecom & Enterprise Networks

Consolidates routing, firewall, and VPN for enhanced flexibility and security.

Smart Factory & AIoT

High-density LAN with PoE and edge computing for real-time data processing.

Smart City & Retail

Multi-protocol wireless connectivity for distributed deployments.
