Wie können die Anforderugen von allen Trends in der Netzwerktechnologie erfüllen?

Geringe Latenz, hohe Datenverarbeitung, hohe Bandbreite, mehr Konnektivität, PoE-Unterstützung und IP-Sicherheit?

Wir haben die Antwort:

ANS Serie, die Advanced Network Solutions

Intel Platform

Mit der Intel-CPU-Plattform implementiert die ANS-Serie eine Intel Apollo Lake-CPU mit geringem Stromverbrauch und eine Intel Denverton-CPU mit hoher Recheneffizienz, um die Anforderungen vom Edge bis zum Server zu erfüllen.

Wireless

Im System werden neben der physischen Kupfer- und Glasfaser- und Ethernet-Verbindung auch umfangreiche drahtlose Übertragungsschnittstellen wie WLAN, 3G, LTE-Modul und LPWAN wie LoRa und ZigBee unterstützt.

DATA COM

In der halben Breite eines 19" Gehäuses bietet es bis zu 12 Ethernet-GbE-Ports mit hoher Dichte. Darüber hinaus werden 2x 10-GbE-Glasfaseranschlüsse auf dem Intel Denverton-System bereitgestellt, um mehr Uplink-Netzwerkbandbreite zu unterstüzen.

Smart Design

Im Vergleich mit vergleichbaren Lösungen im Markt ist die ANS-Serie mit ihrer Unterstützung von bis zu 12 LAN-Ports äußerst wettbewerbsfähig. Die kompakte Bauweise ermöglicht die Konfiguration von zwei ANS-Geräten in einer Rackeinheit.

IoT Solution

Mit der Entwicklung von KI für IoT-Netzwerke können wir mithilfe von Edge-Computing mit aktiven Geräten die Vor-Ort-Lösung implementieren und die Daten in kurzer Zeit verarbeiten. Die ANS-Serie bietet 8-12 LAN-Ports, von denen jeder auf PoE ausgelegt werden kann.

Software & IPSec

Der Softwareentwicklungsprozess für IoT Lösungen kann verkürzt werden, während der Wartungsaufwand mit unserer PoE-API und GUI drastisch reduziert werden kann. Um die Sicherheit aller Arten von Infrastrukturen zu verbessern, bietet Intel in seinen neuesten Produkten DPDK und QAT an.

PRODUKTE

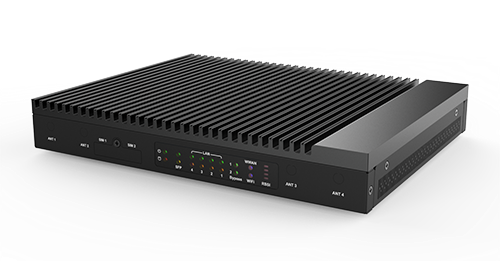

ANS-12000/12001

ANS-12000/12001

Intel® Amston Lake x7433RE (4C) / x7835RE (8C) Processor
Up to 8 E-cores with Intel® UHD Graphics (Xe-based) and Intel® DL Boost support
1x DDR5 4800 SO-DIMM (ECC / non-ECC) up to 32GB
Compact fan-less system with 5G & WiFi 6 readiness

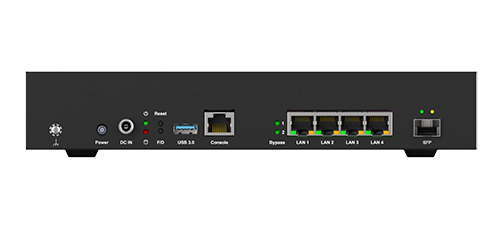

ANS-12002/12003

ANS-12002/12003

Intel® Amston Lake x7405C / x7809C Processor with up to 8 Efficient Cores
Support for Intel® DL Boost (INT8) and AVX2 acceleration
1x DDR5 4800 SO-DIMM (ECC / non-ECC) up to 32GB
Compact fan-less system designed for SD-WAN applications

ANS-9A44S

ANS-9A44S

Intel® Atom® C3758R (8C) / C3558R (4C) Processor (Denverton Refresh)
4x 10GbE SFP+ and 4x 2.5GbE RJ45 ports with bypass
2x DDR4 2400 SO-DIMM (ECC / non-ECC) up to 64GB
Multiple expansion options including M.2 slots and PCIe x4

ANS-9142 / ANS-9141

ANS-9142S

Intel® Atom® C3436L (4C) / C3338R (2C) Processor (Denverton Refresh)
2x 2.5GbE + 2x GbE RJ45 with bypass, 2x GbE RJ45/SFP combo ports
1x DDR4 2400 ECC / non-ECC SO-DIMM up to 32GB
Compact network system with 5G & WiFi 6 readiness

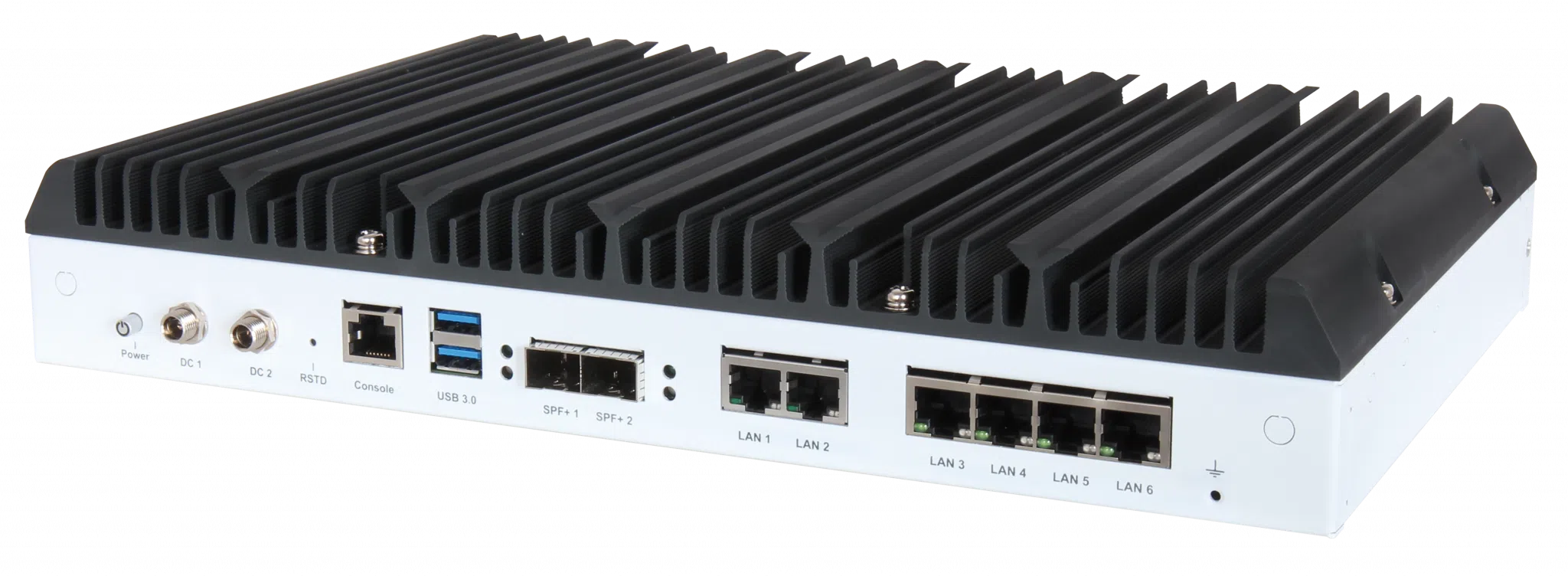

ANS-7A44E

ANS-7A44E

AMD V3C18I Processor with 8 cores and 16 threads
6x 2.5GbE RJ45 with bypass and 2x 10GbE SFP+ ports
2x DDR5 4800 SO-DIMM up to 64GB
Fanless desktop platform with wide operating temperature range

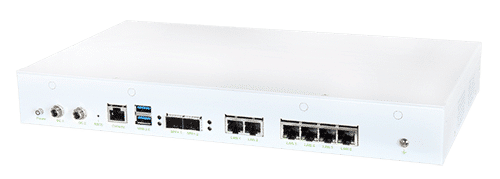

ANS-7A44G

ANS-7A44G

AMD V3000 Processor series with up to 8 cores and 16 threads
6x 2.5GbE RJ45 with bypass and 2x 10GbE SFP+ ports
2x DDR5 4800 SO-DIMM up to 64GB
Multiple M.2 expansion slots for storage and connectivity modules

ANS-2121/41/42P

ANS-2121/41/42P

Intel® Atom® x5-E3940 (4C) / E3930 (2C) Processor (Apollo Lake)
Up to 10x GbE RJ45 ports with optional PoE+ support
1x DDR3L ECC SO-DIMM up to 8GB, onboard 16GB eMMC
Compact 2-in-1U rackmount design with 5G & WiFi 6 readiness

ANS-8A62/64P

ANS-8A62/64P

Intel® Atom® C3758 (8C) / C3558 (4C) Processor (Denverton)
2x 10Gb SFP+, 13x GbE ports with optional PoE+ support
2x DDR4 2400/2133 ECC SO-DIMM up to 32GB
Compact 2-in-1U rackmount design with 5G & WiFi 6 readiness

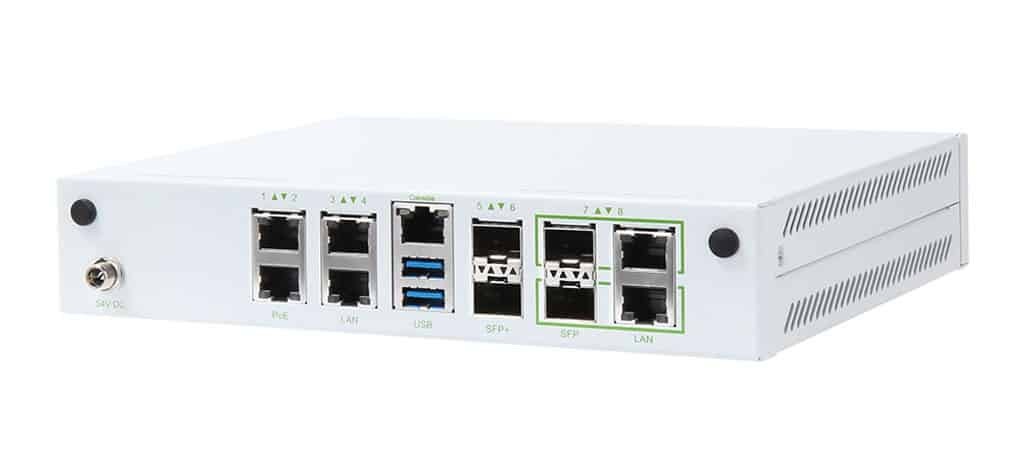

ANS-9A44F/42F

ANS-9A44F/42F

Intel® Atom® C3758R (8C) / C3558R (4C) Processor
2x 10GbE SFP+, 4x combo ports, and 4x GbE RJ45 (including PoE+ support)
2x DDR4 1866 SO-DIMM (ECC / non-ECC) up to 64GB
Compact 2-in-1U rackmount system with multiple M.2 expansion options

Application Value & Added Advantages

Telecom & Enterprise Networks

Consolidates routing, firewall, and VPN for enhanced flexibility and security.

Smart Factory & AIoT

High-density LAN with PoE and edge computing for real-time data processing.

Smart City & Retail

Multi-protocol wireless connectivity for distributed deployments.
