Portwell - ANS-12000/12001

ANS-12000/12001

Compact Fan-less System with Intel® Amston Lake

ANS-12000 series builds on Intel® Amston Lake x7433RE / x7835RE
Up to 32GB 1x DDR5 4800 MT/s ECC and non-ECC SO-DIMM
8 Efficient Cores (E-cores) with Intel UHD Graphics (Xe-based, up to 32 EUs) and support Intel DL Boost (INT8), AVX2
1x TPM2.0 (On-Board)
2x SIM slots
Design ready for 5G and WiFi 6(802.11ax)

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Compact Fan-less System with Intel® Amston Lake x7433RE(4C)/ x7835RE(8C) Processor for SD-WAN solution

Specifications

CPU:	Intel Atom® x7433RE Processor (4 / 3.4 GHz, 6 MB, 9 W) Intel Atom® x7835RE Processor (8 / 3.6 GHz, 6 MB, 12 W)
Processor:	Intel® Atom® x7433RE Processor Intel® Atom® x7835RE Processor
Firmware:	AMI uEFI BIOS
Memory:	Support up to 32GB on 1 non-ECC/ECC SODIMM
Storage:	1 x 2.5″ SSD/HDD 2242 Slot (SATA) 1 x eMMC 32G on board
Expansion:	1 x E Key w/ 3042 USB 2.0 and PCIe x1 1 x M Key 2242/2280 PCIe Gen3 x4 or 1 x B+M Key 2230 Wi-Fi module
Security:	TPM 2.0

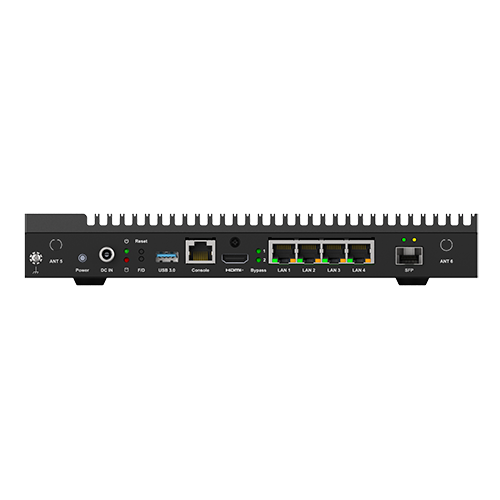

USB:	1 x USB 3.2 Gen1 Type A on Rear
Console:	1x RJ45 Console
Ethernet:	4 x 2.5 GbE w/ Intel WGI226IT Bypass 1 x GbE w/ Intel WGI210IT Combo
Dimension:	200 x 255 x 36 mm (7.87″ x 10.04″ x 1.42″ )
Mounting:	Desktop, Wall Mount
Operating Temperature:	-40 ~ 40 °C (-40°F ~ 104°F)
Storage Temperature:	-40 ~ 70 °C (-40.0 ~ 158.0 °F)
Relative Humidity:	5% to 90%, non-condensing
Certificates:	CE, FCC Class B Part18, CE LVD Safety (EN32638-1)
Watchdog Timer:	Programmable, time out period from 1 s to 255 s
Graphic Controller:	Intel® UHD Graphics
Display Area:	1 x HDMI® 2.0 3840 x 2160@60Hz
Other:	Power Button, Reset Button
Console:	1 x RJ45

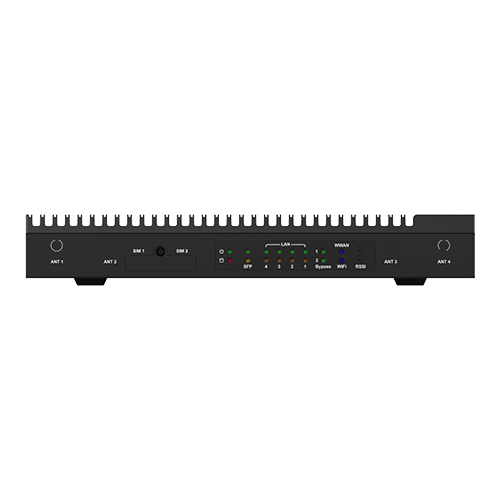

Antenna:	6 x SMA Antenna holes for 5G / LTE / Wi-Fi
SIM:	2 x Micro-SIM
Weight:	2.25 kg
Power Supply:	DC Jack 12V Single
Cooling Fan:	Fanless
