Portwell's Solutions for Internet of Things (IoT)

Most pundits in the industry predicated that there will be more than 200 billion devices by 2020, connected to the Internet, or some would call the “cloud”. This is described as the era of Internet of Things (IoT). The IoT is a big collection of smart sensors, networks, servers, and services that interact among them. This trend applies to all sectors or markets, and it is a way to automate, control, and manage factory, home, transportation, energy, medical/healthcare facility, etc. All layers of networks, from applications, middleware, virtualization, connectivity, and devices, will contribute to realize the full power of IoT. For edge connectivity, the intelligent gateways play a major role in between the devices and the cloud in building the path for, collecting data from the devices for analysis, and forwarding the instructions from the upend servers to activate the devices.

Portwell's Solutions for Internet of Things (IoT)

To leverage the current internet infrastructure, an intelligent IoT gateway is developed for the purpose of connecting legacy and new equipment, from garage door opener, vending machine, cooling or heating devices to industrial robot and wind turbine, to get the data from them, and in return to control them intelligently based on the instructions or analytical results from the connected servers. Since most of the industrial automation devices are often designed in different protocols of interconnectivity.

Portwell IoT Gateway Solutions

Portwell, a world-leading innovator in Industrial PC (IPC) and a Premier member of the Intel Internet of Things (IoT) Alliance, provides a series of the off-the-shelf Intelligent IoT Gateway solutions. Furthermore, to address customers’ needs in supporting various protocols to different sensors, actuators, and devices, Portwell offers design service, including but not limited to, adding I/Os for more connectivity, customizing the chassis, fine-tuning the power source. Also, Portwell has been taken full advantage of the Intel SoC (system on chip) processors to design compact and sleek intelligent gateway devices packed with great features, such as local data or decision processing, advanced data encryption, remote security management, and in-device analytics.

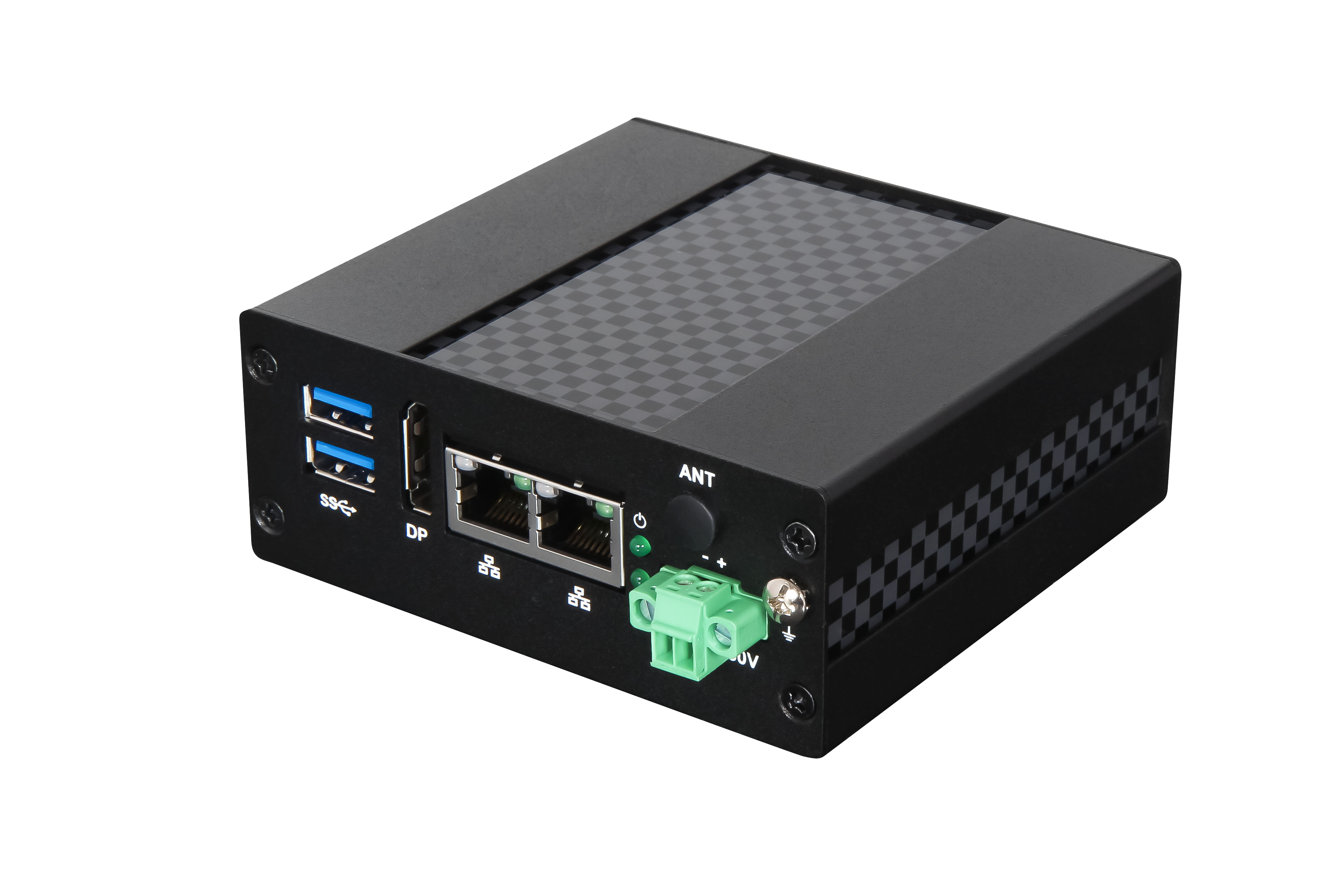

LYNX-6110 is acompact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor

  • Intel® Celeron® processors
  • Support 2x LAN and 1x M.2 for wireless module
  • Heavy Industry EMC standard
  • Support customized appearance (Optional)
  • Support extended temperature (Optional)

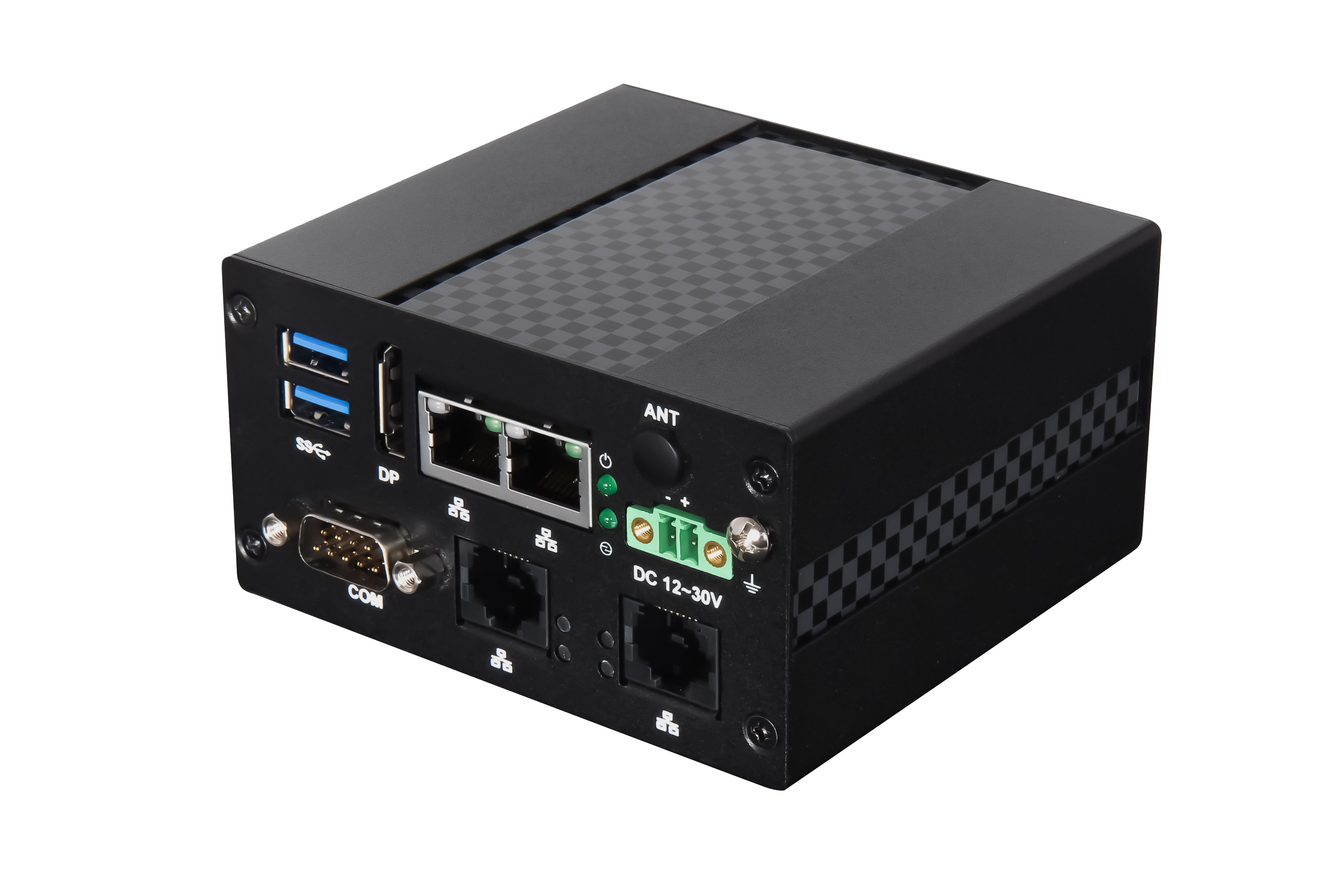

LYNX-612A is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor

  • Intel® Celeron® processors
  • 1x M.2 Key E 2230 for wireless module
  • Heavy Industry EMC standard
  • M.2 Key E for Wireless communication
  • Support customized appearance (Optional)
  • Support extended temperature (Optional)

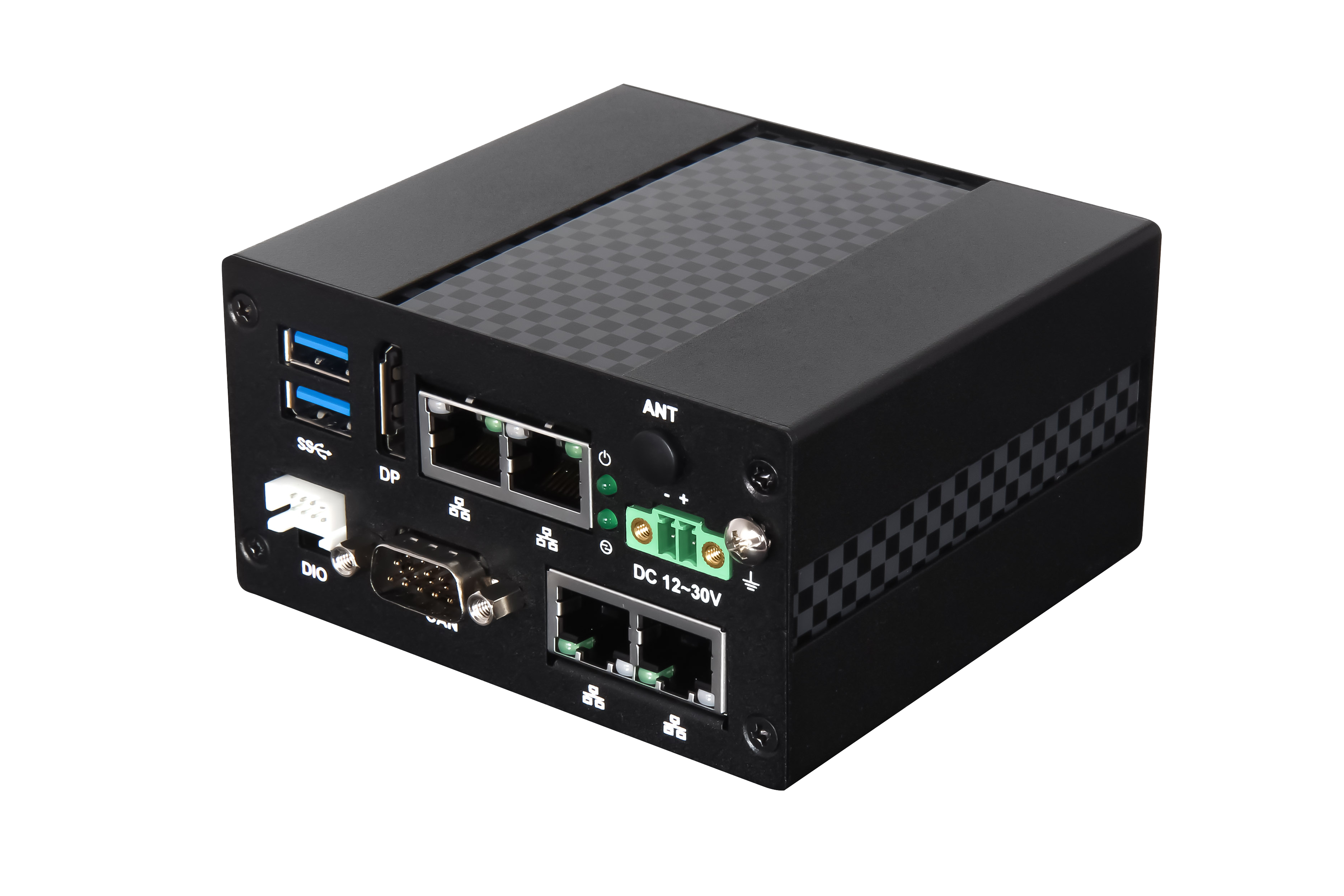

LYNX-612B is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor

  • Intel® Celeronl® processors ("Apollo Lake"), up to 4 cores (optional)
  • 4GB onboard LPDDR4 memory, 2400 MT/s, non-ECC; up to 8GB (Optional)
  • 32GB onboard eMMC 5.0 storage (up to 256GB - optional)
  • Windows® 10 IoT Enterprise (64bit) Yocto v2.7

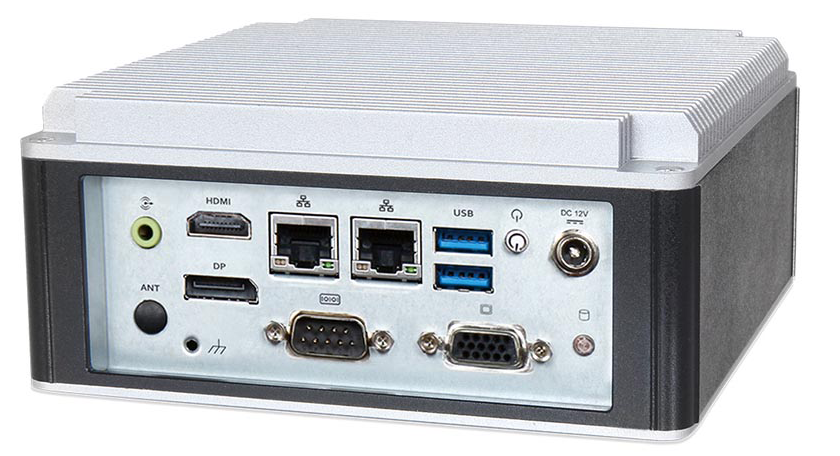

Embedded Compact Fan-less System with Intel® Atom® x6000E Series based NANO-ITX Board

  • Powered by Intel® Atom® Elkhart Lake Dual/Quad-core™ x6000 Series SoC
  • Support 1x 2.5” SSD, 1x mSATA,1x Micro SD
  • 1x M.2 and 1x Full-size Mini-PCIe socket
  • Support Wall mount and DIN Rail mount

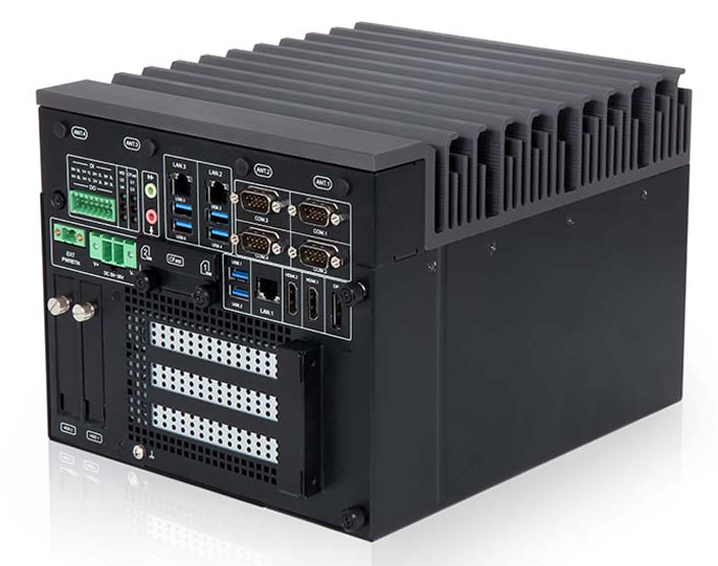

Embedded rugged fan-less system with Intel 10th Generation Intel® Core™ i3/i5/i7/i9(Comet Lake) based Proprietary Board

  • Supports 10th Generation Intel® Core™ i3/i5/i7/i9 processors
  • Upto 64GB DDR4 2400/2666 Non-ECC SDRAM
  • Triple 4K displays including HDMI 1.4, HDMI 2.0, DP

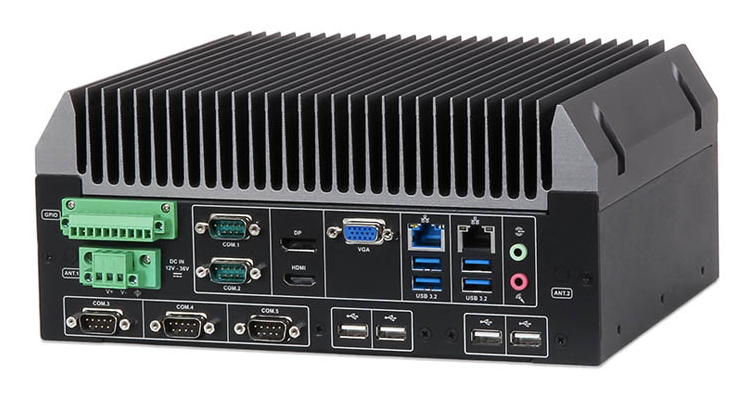

Embedded rugged fan-less system with Intel 10th Generation Comet Lake i3/i5/i7/i9 based Mini-ITX board.

  • 10th Generation Intel® Core™ i3/i5/i7/i9 processors
  • Upto 64GB DDR4 2400/2666 Non-ECC SDRAM
  • Triple displays including HDMI, DP and VGA
  • One M.2 E Key, One M.2 M Key and one M.2 B Key socket

Intel Atom Processor E3900 Series based Fanless Embedded System

  • System motherboard: NANO-6062 Nano-ITX embedded system board
  • Intel® Atom® processor E3900 series (formerly Apollo Lake)
  • DDR3L 1866/1600 MHz memory, 1x 204-pin SODIMM socket, up to 8GB
  • 1x 2.5" SATA HDD/SSD, 1x mSATA, 1x microSD card

Intel Atom Processor E3900 Series based Fanless Embedded System

  • System motherboard: PEB-2773 3.5" form factor embedded system board
  • Intel® Atom® processor E3900 series (formerly Apollo Lake)
  • DDR3L 1866/1600 MHz memory, 1x 204-pin SODIMM socket, up to 8GB
  • 1x 2.5" SATA HDD/SSD, 1x mSATA

Embedded fanless system for IIoT application

  • System motherboard: WUX-3350 4x4-inch mini PC board
  • Intel® Atom® 14nm SOC with Dual/Quad Core
  • Dual Channel DDR3L 1866 SO-DIMM up to 8G
  • Dual display by DP & HDMI up to UHD resolution
