WMP-24P

WMP-24P-IP54 Raptor Lake 24"

Mobile Intel® 12th/13th generation Core i CPU (U series)
The newest regulation EN 60601-1: 2006/A2:2021 Compliance
23.8″ (1920X1080) MVA Diagnostic Panel w/ P-Cap Multi-Touch
Hot-Swappable Batteries X3; IP54 rear cover batteries x 1
IP54 Rear w/Full Sealed Upside Housing Sku
Fanless Design with Reliable Thermal Solution
Hospital white Plastic Housing with Anti-bacteria Treatment

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Best Suit for Non-Powered Medical Carts

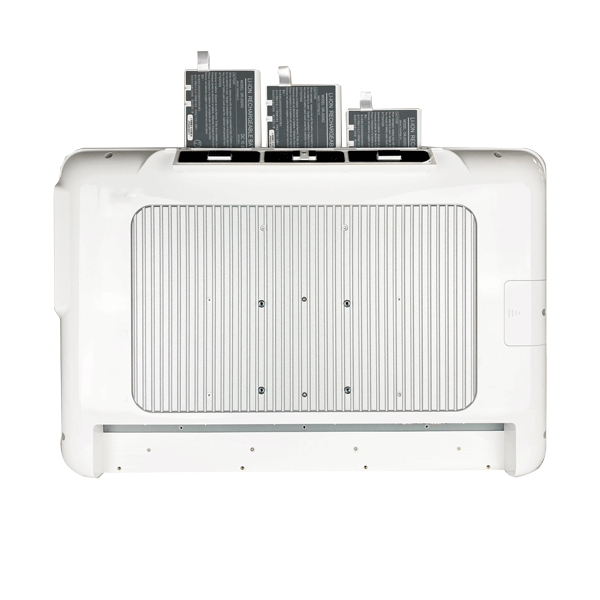

Up to Three Hot Swappable Batteriesor UPS Battery for IP54 Sku

These medical cart panel PC with hot swappable batteries are designed to be used with non-powered carts. Hot swap batteries provide up to 8-10 hours of up time on a single charge. Wincomm innovated i-Control intelligent management SW to optimize CPU, Thermal, and Power performance to utilize computing performance to secure medical professionals using safty in any condition while under mobile medical cart applications.

Specifications

CPU/Clock/Cache:	FCBGA1744 Intel® 12th/13th Gen. Core i7/i5/i3 & Celeron Processor (15W Max.) / Support Vpro by Core i7/i5 CPU
Memory:	Two 4800 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 64GB
Storage:	1 x M.2 (M Key 2280) with PCIex4 for SSD Standard rear cover:2.5” SATA3 HDD/SSD drive bay x 1 with doggy door IP54 rear cover:2.5” SATA3 HDD/SSD drive bay x 1
Expansion:	1 x PCIex4 (25W max.), 1 x M.2 E Key
Display Area:	23.8” wide TFT-Color LCD (16:9)
Display Feature:	1920 x 1080 (Full HD), 16.7M colors (Ture 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000: 1 (Typ)
Touch:	Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 85% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000

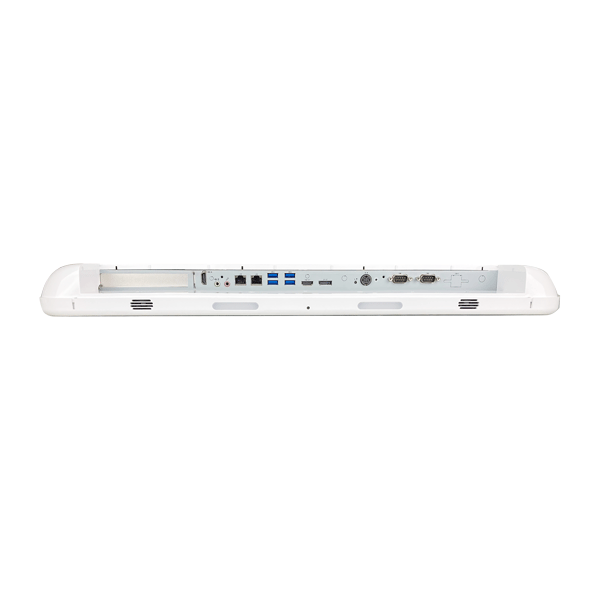

USB:	WMP 24P IP0A (STD)/ WMP 24P IP0P (IP54) : 4 x USB3.2 gen II WMP 24P IP0B (ISO): 4 x USB3.2 gen II, 1 x ISO USB 2.0
COM Type:	1 x RS232/RS422/RS485 1 x RS-232
LAN Chipset:	WMP 24P IP0A (STD)/ WMP 24P IP0P (IP54) : 2 x RJ45 (1 x 1.0 Gbps, 1 x 2.5 Gbps) WMP 24P IP0B (ISO): 2 x RJ45 (1 x 1.0 Gbps, 1 x 2.5 Gbps), 1 x ISO RJ45
Audio:	1 x Line-out & 1 x Microphone-in (3.5mm phone jack)
Video Adaptor:	1 x DP1.4a, 1 x HDMI2.0, 1 x HDMI® (video-in ; without audio ; Not support in S5 mode)
Cooling Fan:	Fanless Design with External Heatsink
Power DC IN:	DC-In x 1, DC 14-24V input/ AC input 100~240V / 47 ~ 63 Hz / DC output 24V, 180W
Operating Temperature:	0~40℃ (Burn-in, not airtight, W/ Battery 0~35℃)
Storage Temperature:	-20~60℃
IP Protection:	WMP 24P IP0A (STD): Front IP65, IPx1 for Whole System WMP 24P IP0P (IP54): Front IP65, Rear IP54 WMP 24P IP0B (ISO): Front IP65, IPx1 for Whole System
Dimension:	594.0mm(H) x 397.0mm(V) x 56.0 mm(T)
Weight:	9.0 kg (w/o power adapter/battery pack), 10.5 kg (w/ x3 battery pack & no power adaptor)
Mounting:	Optional Stand, VESA 100 X 100
Certificates:	CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1) EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project ISO 14971 / IEC62133
OS Support:	Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise GAC
Other:	Add ons parts: IP54 Rear Cover (optional order configuration) 802.11 be WLAN + Bluetooth module (Wifi-7) Auto focus 5M pixel webcam module 2.5” storage M.2 type 2280 module RFID (13.56MHz); RFID with single sign on TPM 2.0 module (SPI) Full HD capture card or 4K SC710N1 12G SDI capture card USB 2.0 x 2 at side (different rear housing) Smart card reader at side or CAC / PIV Reader (FIPS-201) (different rear housing) 5V1A power Jack (for Standard Type) Equipotential terminal pin AG film (Can’t exist with DICOM) Light sensor for LCD auto brightness (Can’t exist with webcam, DICOM) DICOM part 14 compliance (optional order configuration) Isolated 4KV module (optional order configuration) 30 Watt Power output card for external device USB 5/6 (USB 2.0 can’t co-exist with side USB) Integrated hot-swappable batteries (DR-202 series)
Graphics:	Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU)
Speaker:	2 x 2-watt Speakers & Integrated Microphone (at Housing Bottom Side)
