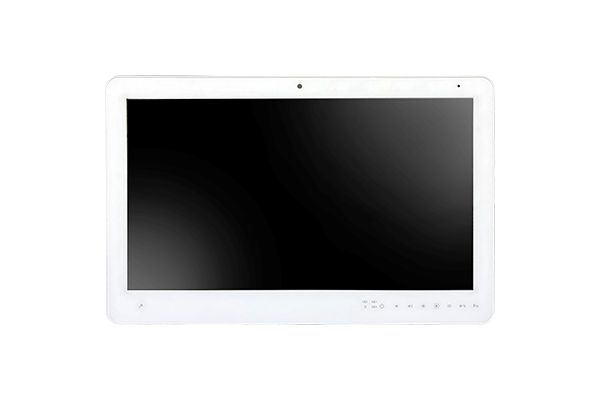

WMP-22U

WMP-22U Fanless Core Ultra 21.5"

Intel® Core Ultra 200 Series (Arrow Lake) CPU (15W Max.)
The newest regulation EN 60601-1: 2006/A2:2021 Compliance
21.5" FHD AHVA Diagnostic Panel w/ P-Cap Multi-Touch
Optional Hot-Swappable Batteries X3
Hospital White Plastic Housing w/ Anti-bacteria Treatment
Fanless Design with Reliable Thermal Solution
Dual Storage w/ M.2 SSD for RAID 0/1

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Fanless Hot-swappable Batteries 21.5″ Medical Grade

Specifications

CPU/Clock/Cache:	FCBGA2049 Intel® Core Ultra 200 Series (Code Name: Arrow Lake) Processor (15W Max.) / SoC / Support Vpro
Memory:	Two 5600 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 96GB
Storage:	1 x M.2 (M Key 2280) with PCIex4 for SSD, 1 x M.2 M Key, 2280 with PCIe x4 PCIe
Expansion:	1 x M.2 M Key 2280 PCIex4 PCIe 1 x M.2 E Key 2230
Display Area:	21.5” wide TFT-Color LCD (16:9)
Display Feature:	1920 x 1080 (Full HD), 16.7M colors (Ture 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000: 1 (Typ)
Touch:	Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 88% / Hardness: ≥ 7H pencil, pressure 765g/45° / Life: 50,000 Hrs
USB:	2 x USB3.2, 2 x USB2.0, 1 x USB3.2 Type C
COM Type:	1 x 1.5KV ISO RS232/RS422/RS485, Optional 1 x RS-232
LAN Chipset:	1 x 1.5KV ISO RJ45 (2.5 Gbps), 1 x RJ45 (2.5 Gbps, Support AMT/Vpro)
Audio:	1 x 3.5mm combo phone jack connector (Line-out & Microphone-in)
Video Adaptor:	1 x HDMI2.0
LCD:	Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light, LCD On/Off & Clean Me, Function Key
Cooling Fan:	Fanless Design with External Heatsink
Power Connector:	DC-In x 1, DC 19-24V input/ AC input 100~240V / 50 ~ 60 Hz / DC output 24V, 158.4W
Operating Temperature:	Operating Temperature: 0~40℃ (IEC60068-2-78) w/ Battery 0~35°C / Storage Temperature: -20~60℃
Storage Temperature:	Operating Temperature: 0~40℃ (IEC60068-2-78) w/ Battery 0~35°C / Storage Temperature: -20~60℃
IP Protection:	Front IP65, IPx1 for Whole System
Dimension:	536.0mm(H) x 349.6mm(V) x 61.2 mm(T)
Weight:	5.9 kg (w/o power adapter/battery pack), 7.25 kg (with x3 battery pack & no power adaptor)
Mounting:	Optional Stand, VESA 100 X 100
Certificates:	CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1) EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B (PSU/Battery with PSE) / FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project ISO 14971 / IEC62133
OS Support:	Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise LTSC
Other:	1. 802.11 be WLAN + Bluetooth module (Wifi-7) 2. Auto focus 5M pixel webcam module 3. M.2 type 2280 SSD module (can’t co-exist with capture card) 4. RFID (13.56MHz); RFID with single sign on 5. Full HD SC400N1 M2 AIO capture card or 4K M.2 SC710N1_M2_12G-SDI+HDMI2.0 capture card (can’t co-exist with 30W power output module) 6. 2 x USB 3.0 at side 7. 1 x COM (Extra COM at Downside) 8. 1 X USB2.0 (Extra USB at Downside) 9. Smart card reader at side or CAC / PIV Reader (FIPS-201) 10. Equipotential terminal pin 11. AG film 12. 30 Watt Power output module for external device (can’t co-exist with capture card) 13. Win 10 or Win 11 64 bit IoT Enterprise LTSC
Speaker:	2 x 3-watt Speakers & Integrated Microphone (at Housing Bottom Side)
