WMP-22T-PIS

Medical Grade MDR Ready 22" Fanless Power Inside

Intel 12th / 13th generation Core i CPU (H series)
Anti-bacteria Aluminum Housing
21.5″ FHD AHVA Diagnostic Panel
IP65 at front, Rear IP54 protection with cable cover attached
4K capture card, Dual Channel DDR5 SODIMM
Fast booting with M.2 M Key 2280 PCIe X 4 SSD (Support NVMe SSD) as drive disk
Fanless solution

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Medical OR All In One PC

Integrated with Built-in Power Supply, Secure Operation Procedure

Medical OR All In One PC series is designed for operating room applications, such as endoscopic surgery, robotic surgery, and so on. With anti-bacteria elegant aluminum housing, it supports full sealed waterproof for IP65 whole system, and two display port output, one unique video-input function to receive medical capture devices for all types of minimally invasive surgery. The special power adapter inside design is featuring at clean and easy installation to secure operating safety.

Specifications

CPU/Clock/Cache:	FCBGA1744 12th / 13th generation Intel® Core i7/i5/i3 and Celeron processor (35W max.)/ Soc
Memory:	Two 4800 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB
Storage:	1 x M.2 (M Key, 2280) with PCIe x4 for SSD 1 x 2.5” SATA3 HDD/SSD drive bay
Expansion:	1 x PCI-E x8 expansion slot (PCI-E x4 Signal) 1 x M.2 E key 2230

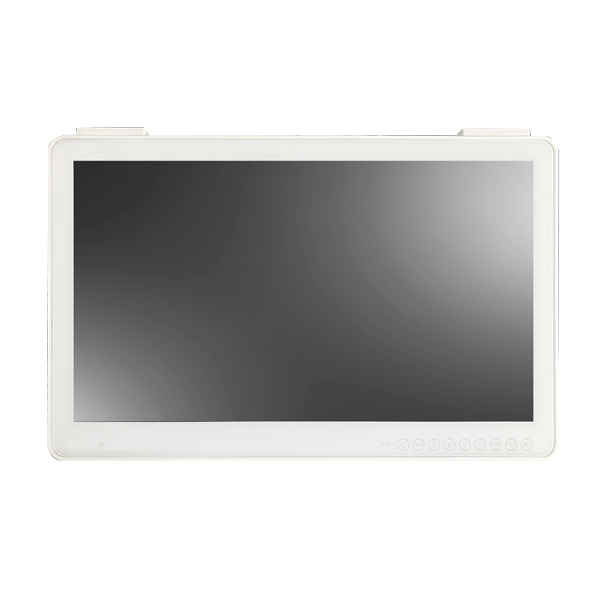

Display Area:	21.5” 16:9
Display Feature:	1920 x 1080 (Full HD), 16.7M colors 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch:	Full flat projective capacitive touch panel / Light Transmission: >85% / Hardness: 6H pencil, pressure 765g/45° / Life: ≥50,000 times

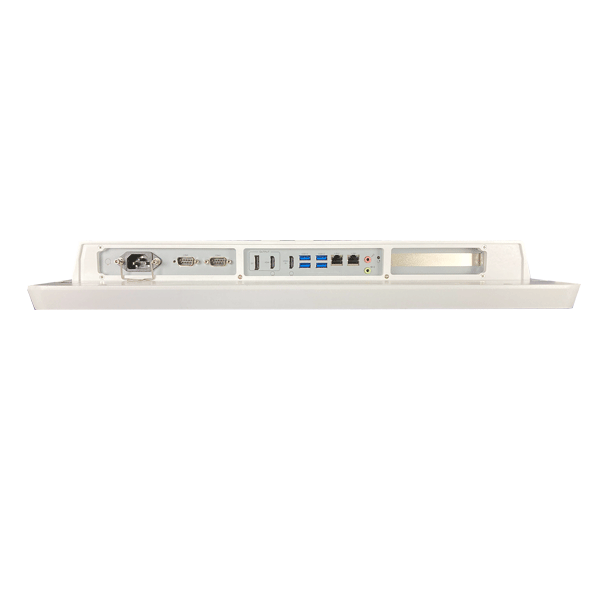

USB:	4 x USB 3.2 gen 2
COM Type:	WMP-22T-PIS IP0A (STD): 1 x RS232, 1 x RS232/RS422/RS485 WMP-22T-PIS IP0B (ISO): 1 x ISO RS232/RS422/RS485
LAN Chipset:	WMP-22T-PIS IP0A (STD): 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro)/ 1 x RJ45 2.5Gbps Intel® I226V WMP-22T-PIS IP0B (ISO): 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro)/ 1 x RJ45 2.5Gbps Intel® I226V/ 1 x ISO RJ45 1Gbps
Audio:	3.5mm phone jack connector x 2 (Line-out, Mic-In) ; Waterproof 2 x 2W speaker
Video Adaptor:	1 x HDMI®-in (without audio); Support in S5 mode
LCD:	Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In LCD On/Off; Clean Me; Programmable Function
Cooling Fan:	Fanless
Power Connector:	AC input 100 ~240V / 47 ~ 63 Hz, DC output 24V 250W (MBU-250-108)
Graphics:	Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU)
Operating Temperature:	0~35℃ (IEC60068-2-78)
Storage Temperature:	Storage Temperature: -20~60℃
IP Protection:	Front: IP65, Rear: IP54 with cable cover attached
Dimension:	549.1mm (H) x 347.1mm (V) x 68mm (T)
Weight:	9.2 kg

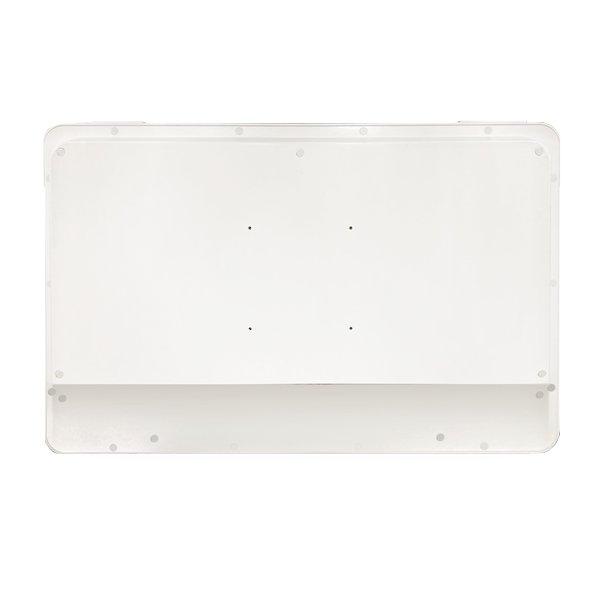

Mounting:	VESA 100 x 100
Certificates:	CE: EN 60601-1-2:2015(V4.1) EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 (By project) cUL: CAN/CSA-C22.2 No. 60601-1:14 (By project) ISO 14971
OS Support:	Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise GAC 64 bit
Other:	2.5” SSD module 802.11 be WLAN + Bluetooth module (Wifi-7) (optional order configuration) M.2 type 2280 module RFID (13.56MHz) TPM 2.0 module (SPI Interface) Full HD capture card or 4K SC710N1 12G SDI capture card Equipotential terminal pin AG film (Can’t exist with DICOM) DICOM part 14 compliance (max. error ratio less than 20%, optional order configuration) Optical bonding 4KV ISO USB2.0 x 2 card (High speed – optional order configuration) Windows 10 IoT Enterprise LTSC 64 bit / Windows 11 IoT Enterprise GAC 64 bit Auto focus 5M pixel webcam module (optional order configuration)
