Portwell - WMP-22S

Products / Human Machine Interface / Medical Panel PC

WMP-22S

Medical AI Raptor Lake 22″

Anti-Bacteria (MRSA) Plastic Housing & Touch

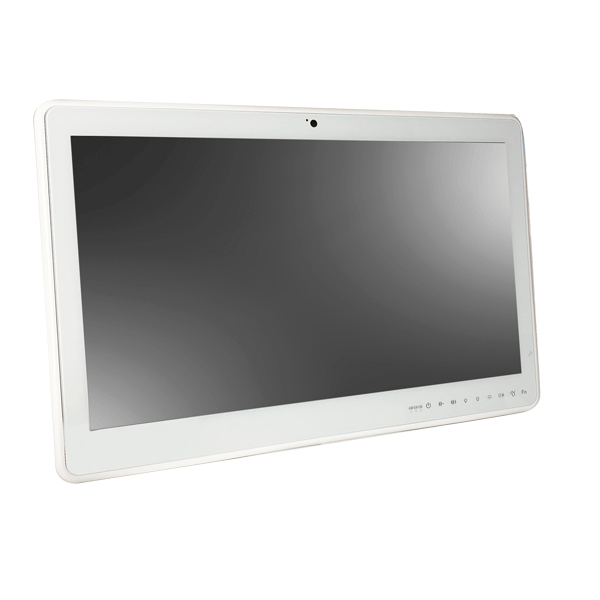

21.5″ Full HD (1920 x 1080) AHVA Diagnostic Panel
High performance intel 12th /13th generation Core i CPU
Dual Channel DDR5 up to 96GB
Projective Capacitive Multi-touch screen (10 fingers)
Independent Nvidia A4500 graphic with 16GB dedicated video memory
Video in port with RGB Color adjustment function

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Medical AI Raptor Lake 22″

Specifications

CPU/Clock/Cache:	LGA1700 package 12th /13th generation Intel® Core i7/i5/i3/Pentium/Celeron processor (35W max.)
Memory:	Two 5600 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 96GB
Storage:	M.2 M.Key 2280 PCIe X 4 SSD (Support NVMe SSD up to 1TB) M.2 B/M Key, (2280) with PCIe x1 PCIe/SATA/USB
Expansion:	M.2 E key 2230 x 1 M.2 B/M Key, (2280) with PCIe x1 PCIe/SATA/USB PCI-E x 4 expansion slot x 1 (40W max)
Display Area:	21.5” LED Backlight
Display Feature:	1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ.), CR: 1000 : 1 (Typ)
Touch:	Projected Capacitive Multi-Touch Panel (10 fingers) / Light Transmission: ≥ 87% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000

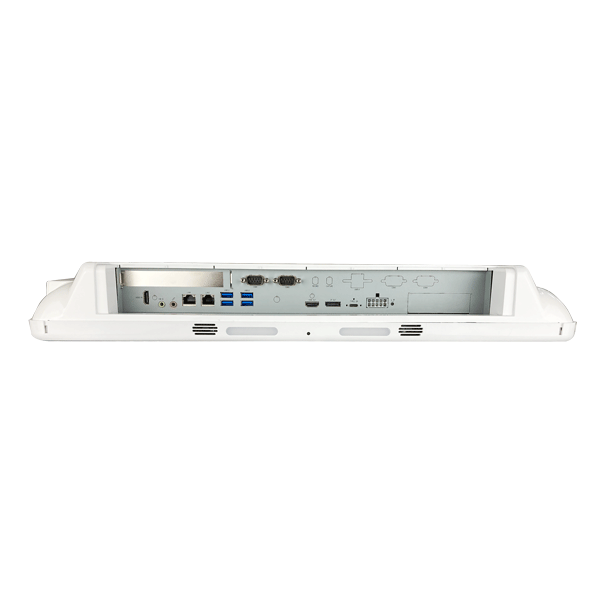

USB:	WMP 22S IP0A (STD): 4 x USB 3.2 Gen II (Type A) 1 x USB 3.2 II (Type C, Support DP 1.4a display output; 5V/3A power output) WMP 22S IP0B (ISO): 4 x USB 3.2 Gen II (Type A) 1 x USB 3.2 II (Type C, Support DP 1.4a display output; 5V/3A power output)
COM Type:	WMP 22S IP0A (STD): 1 x RS232/RS422/RS485 1 x RS232 WMP 22S IP0B (ISO): 1 x RS232/RS422/RS485
LAN Chipset:	WMP 22S IP0A (STD): 1 x Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro 1 x Intel® I226V with 10/100/1000/2500 Mbps WMP 22S IP0B (ISO): 1 x Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro 1 x Intel® I226V with 10/100/1000/2500 Mbps, 1 x ISO RJ45
Audio:	3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Adaptor:	DP 1.4a/DP++ x1, HDMI® 2.0b x 1, HDMI®-in x 1 (Without Audio)
Cooling Fan:	Fan
Power DC IN:	DC 14~19V input
Operating Temperature:	0~40℃ (IEC60068-2-78)
Storage Temperature:	-20~60℃
IP Protection:	IP65 (Front Side) IPX1 for whole system / Plastic White w/Anti-bacteria (MRSA)
Dimension:	541 mm (H) x 352.9 mm (V) x 74.7 mm (T)
Weight:	8.0 KG (w/o power adapter)

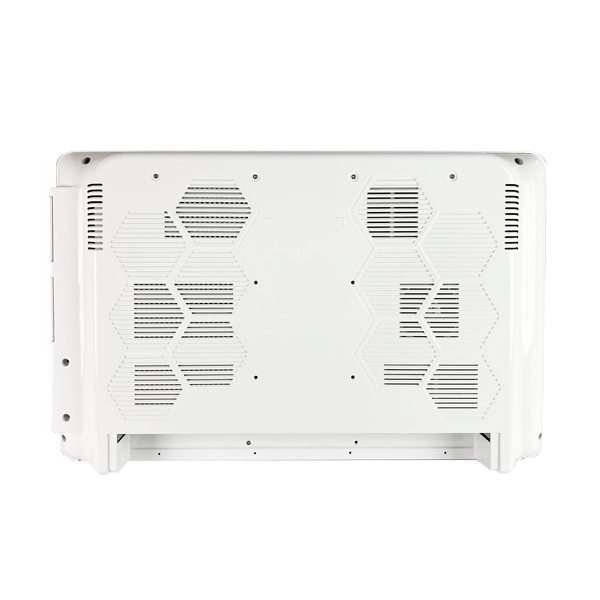

Mounting:	Optional Stand, VESA 100
Certificates:	CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1) EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project ISO 14971 / IEC62133 (All regulation with CPU i7-13700TE and Nvidia A4500 graphic MXM module)
OS Support:	Windows 10 IoT LTSC 2021 (64bit) / Windows 11 IoT GAC (64bit)
Other:	Options: 1. WLAN + Bluetooth module (Wifi-7) 2. Auto focus 5M pixel webcam module 3. RFID (13.56Hz); RFID with single sign on 4. TPM 2.0 module 5. PCI-E x4 Riser card 6. Full HD capture card / 4K SC710N1 M2 12G SDI capture card / SC710N1-L HDMI2.0 7. Battery pack (100W max) (DR-202 series) (100min battery life by PCmark test condition) 8. Equipotential terminal pin 9. AG film(Can’t co-exist with DICOM) 10. USB 2.0 (Type A) x 2 at side 11. Smart card reader at side or CAC / PIV Reader (FIPS-201) 12. USB 2.0 x 2 (USB 5,6) 13. RS-232 x 2 (COM 3,4)-only for Standard type configuration 14. DICOM part 14 compliance module Max. Error Ratio less than 20% (optional order configuration) 15. Independent Nvidia MXM A4500/A2000/A1000 graphic 16. GPIO capture card control solution
Graphics:	Intel® integrated UHD Graphics 770 by CPU
