The Portwell PNSR-6001 1U rackmount network appliance is powered by a single Intel® Xeon® 6 processor, delivering exceptional performance and efficiency for today’s complex network workloads, AI-driven applications, and data-intensive environments. Supporting up to 1024GB of DDR5 ECC RDIMMs, the PNSR-6001 ensures high task-parallel throughput and optimized data handling for modern network infrastructures.

Designed for scalability and flexibility, the PNSR-6001 features 4x OCP NIC 3.0 slots (PCIe Gen5 x16) for high-speed connectivity and diverse configuration options. It also provides 2x M.2 Key M 2280 NVMe storage sockets, enabling rapid data access and efficient performance for demanding network operations.

Built with reliability and security in mind, the PNSR-6001 integrates Intel® Platform Firmware Resilience (Intel® PFR) and supports TPM 2.0, safeguarding systems against potential threats. With IPMI featuring AST2600 BMC and comprehensive out-of-band management capabilities, this platform provides enhanced serviceability and remote management.

The Portwell PNSR-6001 is an ideal solution for enterprises and service providers seeking a compact yet powerful 1U platform that combines performance, expandability, and security to meet the evolving demands of next-generation network and AI infrastructure.

• Specifications

CPU/Clock/Cache:	Single processor   Intel® Xeon® 6700 Series Processors with E-Cores up to 144 Cores, 330W TDP per CPU Intel® Xeon® 6700/6500 Series Processors with P-Cores up to 86 Cores, 350W TDP per CPU
Firmware:	AMI Aptio® V UEFI BIOS
Memory:	Total 8 DIMMs (1SPC) (1DPC) 8x DDR5 6400MHz ECC RDIMM, up to 1024GB
Expansion:	OCP NIC 3.0 slots (extended depth): - 4x PCIe Gen5 x16 from CPU#0
Ethernet:	2x 10GbE RJ45 MGMT via Intel® Ethernet Controller E610-XAT2 (with NCSI)
Storage:	2x M.2 Key M 2280 socket (NVMe) Supports Intel® VROC
Power Supply:	1300W 1+1 CRPS Redundant Power Supply AC 100V-240V @47Hz-63Hz
Cooling Fan:	CPU: Passive 1U heatsink System: 6x fans
Security:	Optional TPM 2.0 Intel® Platform Firmware Resilience (PFR)
Dimension:	438mm (W) x 600mm (D) x 44 mm (H) 17.24" (W) x 23.62" (D) x 1.73" (H)
Serial Interface:	1x RJ45 Console port
USB:	2x USB 3.0, Type A 2x USB 3.0 header onboard
Display Feature:	1x VGA header at rear I/O

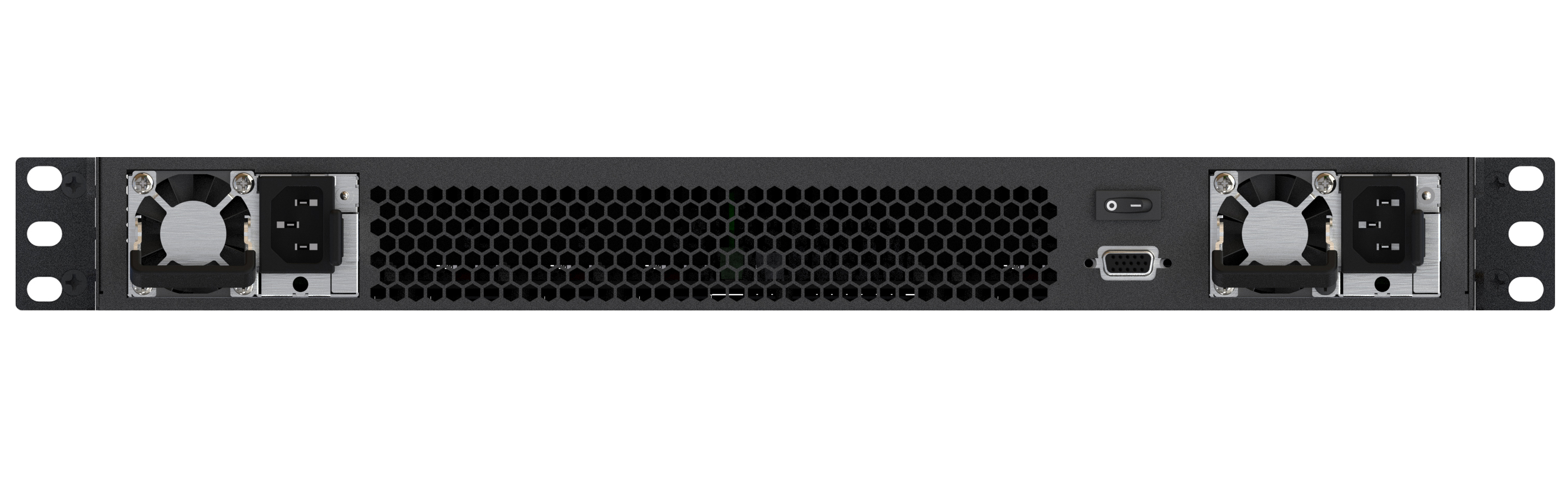

Power:	Front: 1x Reset button Rear: 1x Power switch 2x AC power inlets for CRPS
Indicator:	Power/Status/Storage LEDs System ID LED
Operating Temperature:	0°C to 40°C (32°F to 95°F )
Storage Temperature:	-20°C to 70° C (-4°F to 158°F)
Relative Humidity:	5% to 95% RH, non-condensing
Certificates:	CE/FCC Compliance
OS Support:	Linux
