- Dual Intel® Xeon® 6 Processors
- Up to 32x DDR5 6400/5200MHz ECC RDIMMs
- 8x OCP NIC 3.0 slots, 2x PCIe Gen5 x16 slots
- 1x M.2 Key M for storage
- IPMI with AST2600 BMC
- Optional TPM 2.0 for security
- Ethernet Bypass available with the Portwell PNC series OCP NIC 3.0 network adapters
Contact us, for customized product package!
Get A Quote

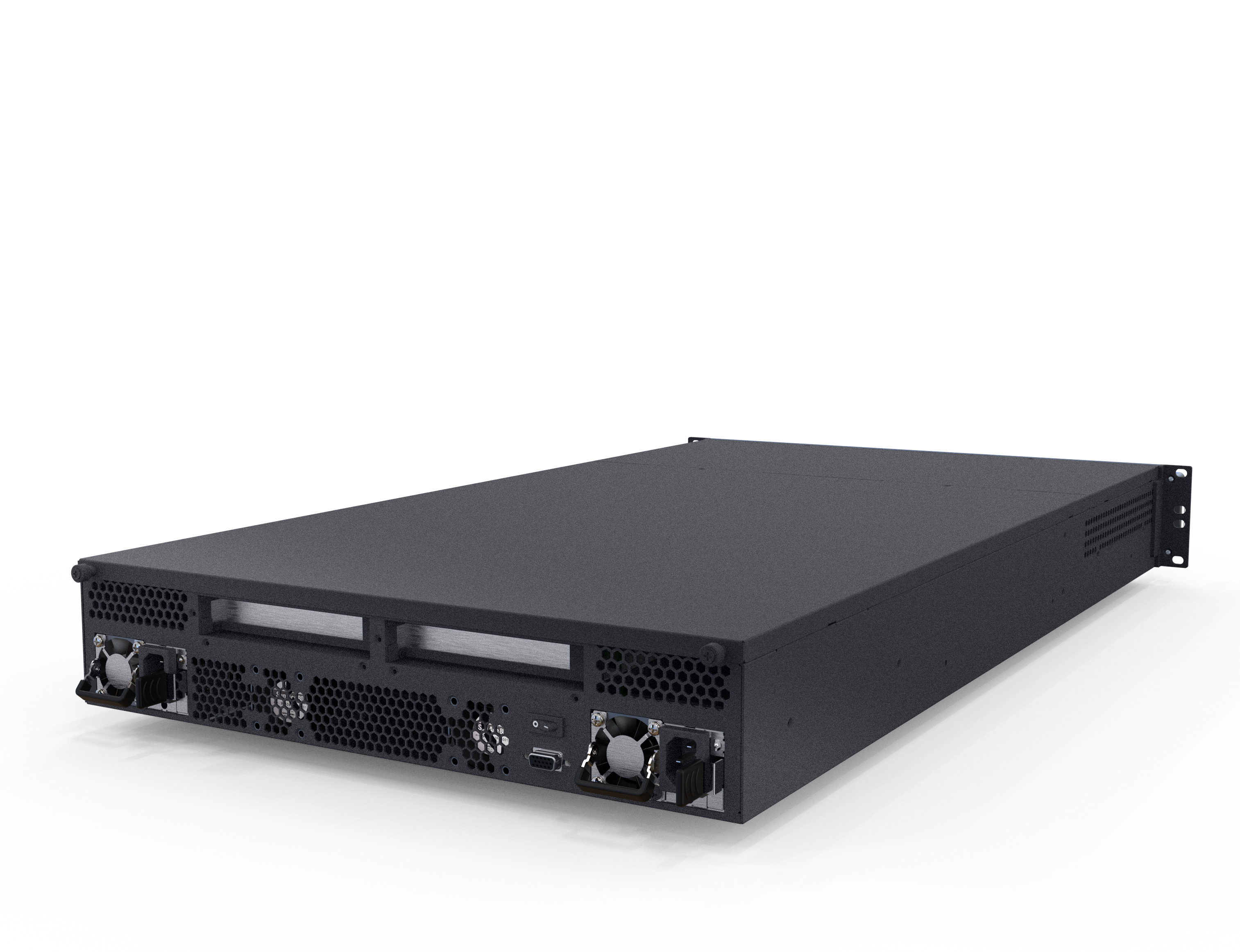

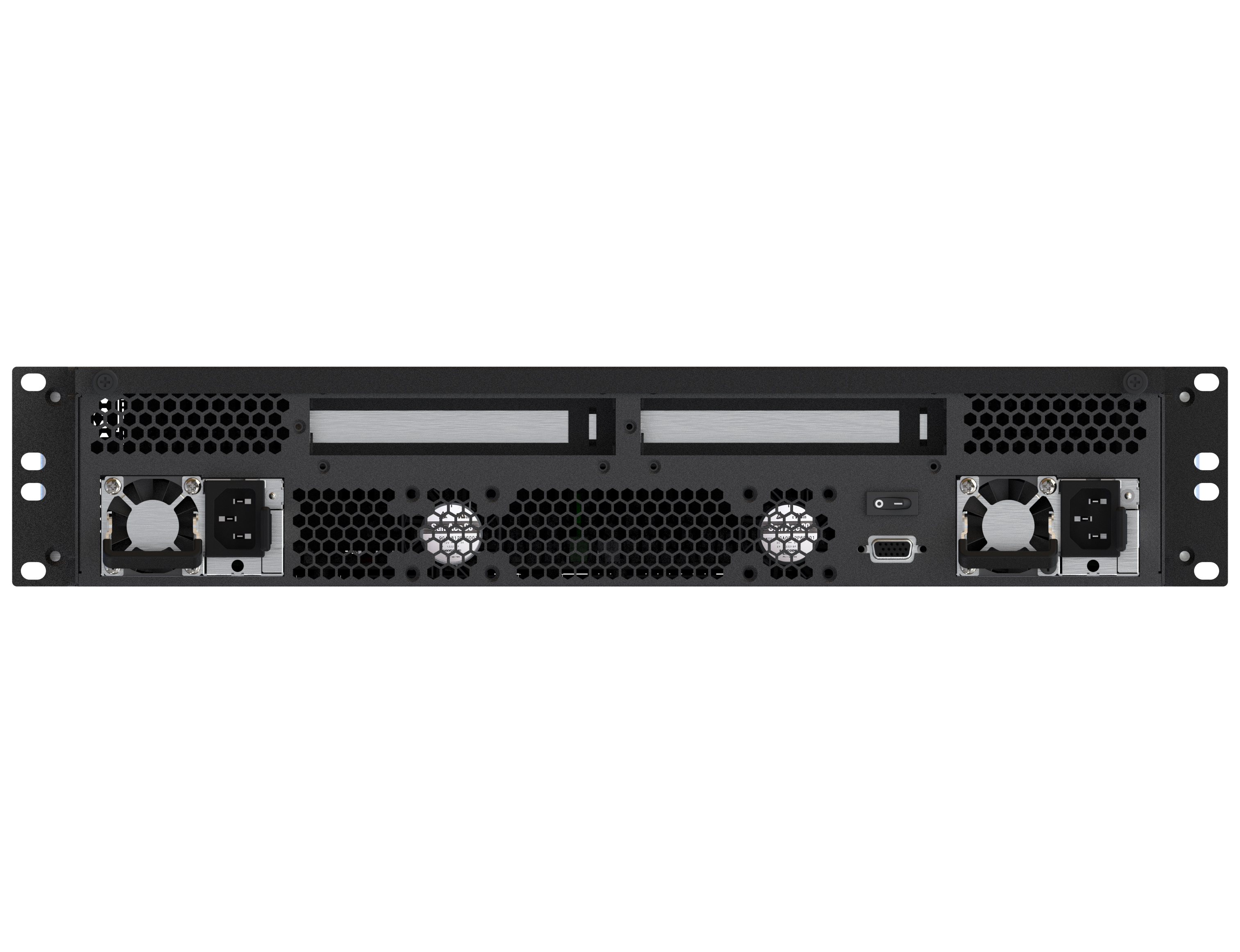

2U Network Appliance based on Dual Intel® Xeon® 6 Processors (codenamed Birch Stream Platform) Featuring 8x OCP NIC 3.0 slots and BMC
The Portwell PNSR-6000 2U rackmount network appliance features dual Intel® Xeon® 6 processors designed to handle complex network traffic management, AI workloads, and data-intensive applications. With up to 144 cores per CPU socket, the PNSR-6000 delivers exceptional performance and efficiency, making it an ideal solution for modern data centers and network security environments.

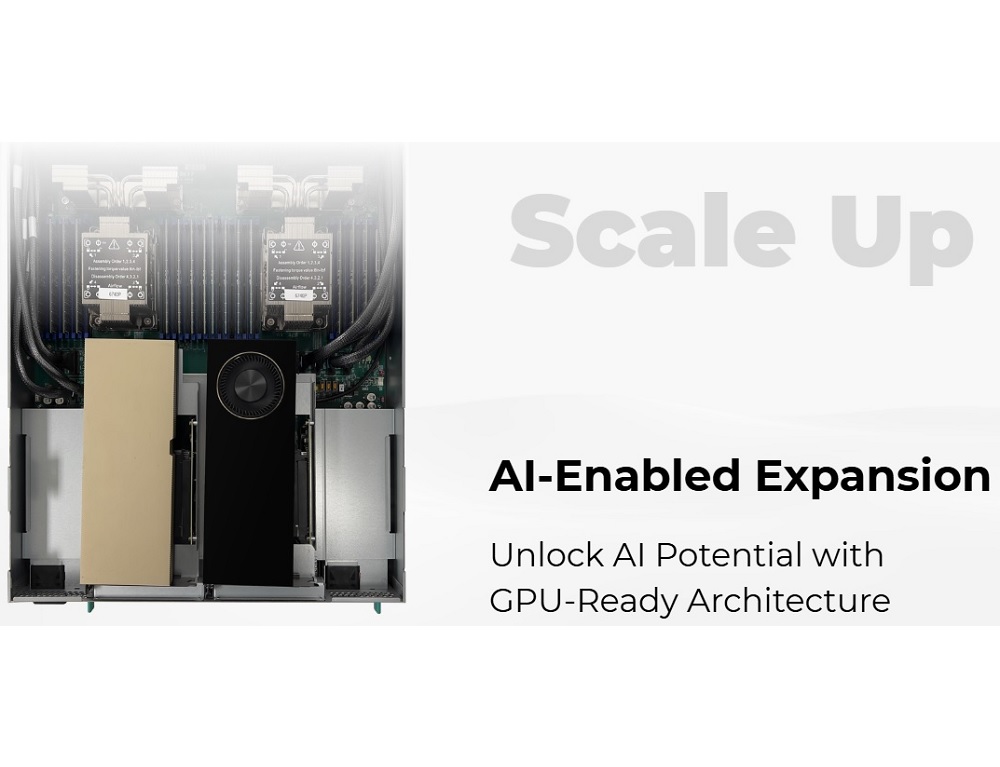

The PNSR-6000 supports up to 2048GB of DDR5 ECC RDIMMs, ensuring high task-parallel throughput for cloud-scale workloads. Its advanced expansion capabilities include 8x OCP NIC 3.0 slots and 2x PCIe Gen5 x16 slots, providing high-speed connectivity and flexibility for diverse network configurations. The PNSR-6000 offers optional AI-centric expansion with a GPU-empowered architecture, allowing for seamless scaling up.
Security is a top priority for PNSR-6000, which integrates Intel® Platform Firmware Resilience (Intel PFR) and optional TPM 2.0 for robust protection against threats. With built-in AI acceleration and comprehensive out-of-band remote management featuring IPMI with AST2600 BMC, the PNSR-6000 enhances network efficiency and reliability. The Portwell PNSR-6000 2U rackmount network appliance is a powerful, scalable solution designed to meet the demands of today’s advanced network operations.
