The Portwell PNSR-5002 1U rackmount network appliance leverages the advanced capabilities of the Intel® Xeon® 6 SoC, enabling a single-server footprint with unparalleled performance, efficiency, and data protection capabilities. The Intel Xeon 6 SoC’s inclusion of next-gen Intel® QuickAssist Technology (QAT) enhances cryptographic and compression workloads, delivering greater performance and efficiency than the previous generation. This enables advanced hardware acceleration and substantial capacity growth on a single platform. Additionally, the Intel Xeon 6 SoC supports several enhanced security features, ensuring high levels of data protection and confidentiality: Platform Firmware Resilience (PFR), Intel® Total Memory Encryption (TME), Intel® Software Guard Extensions (SGX), and Intel® Trust Domain Extensions (TDX).

Designed for demanding edge computing environments, the Portwell PNSR-5002 network appliance, featuring the Intel Xeon 6 SoC with up to 42 cores at 235W TDP, is equipped to handle complex AI workloads, virtual radio access networks (vRAN), and high-performance computing (HPC) tasks with ease. It supports 2x 100GbE QSFP28 ports, providing high-speed network connectivity for data-intensive applications. It offers all-around security with optional TPM and a bypass function, with the latter available through our PNC seriesof OCP NIC 3.0 network interface cards. The PNSR-5002 excels in applications such as Edge Inference Servers, Secure Access Service Edge (SASE), routers, media production, security appliances, storage, and content delivery networks.

• Specifications

CPU/Clock/Cache:	Intel® Xeon® 6 SoC (codenamed Granite Rapids-D) HCC: up to 42 cores, 235W TDP
Firmware:	AMI Aptio® V UEFI BIOS
Memory:	Total 8 DIMMs (2DPC) HCC: (1DPC) 4x DDR5 6400MHz ECC RDIMM, up to 512GB (2DPC) 8x DDR5 5200MHz ECC RDIMM, up to 1024GB
Expansion:	OCP NIC 3.0 slots (extended depth): 2x PCIe Gen5 x16   M.2: 1x M.2 Key B 3052 socket with dual SIM card slots (PCIe, USB) 2x M.2 Key M
Ethernet:	- 2x100GbE QSFP28, Max 200Gbps throughput - 1x GbE RJ45 MGMT via Intel® Ethernet Controller I210 - 1x GbE RJ45 IPMI
Storage:	2x M.2 Key M 2280 socket (NVMe) Supports Intel® VROC
Power Supply:	800W 1+1 CRPS Redundant Power Supply AC 100V-240V @47Hz-63Hz
Cooling Fan:	CPU: Passive heatsink System: 4x fans (*Subject to change)
Security:	Optional TPM 2.0
Dimension:	438mm (W) x 464mm(D) x 44mm (H) 17.24" (W) x 18.27" (D) x 1.73" (H)
Serial Interface:	1x RJ45 Console port
USB:	1x USB 3.2 Gen 2x1 port, Type A 1x USB 2.0 header onboard
Display Feature:	1x VGA header at rear I/O

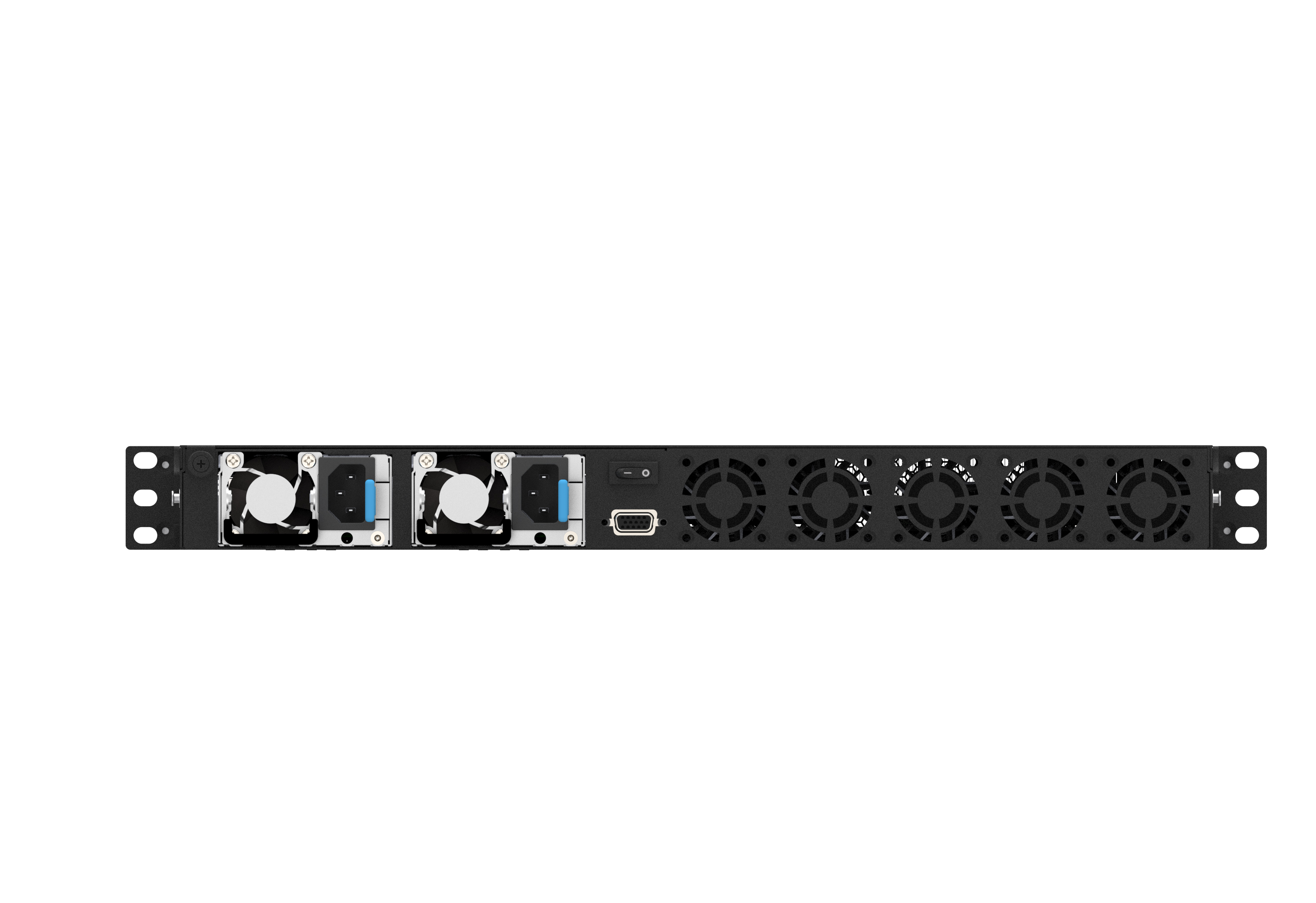

Power:	Front: 1x Reset button   Rear: 1x Power switch 2x AC/DC power inlets (select models)
Indicator:	Power/Status/HDD LEDs System ID LED
Operating Temperature:	0°C to 40°C (32°F to 104°F)
Storage Temperature:	-20°C to 70°C (-4°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
Certificates:	CE/FCC Compliance
OS Support:	Linux
