PNSR-1000

1U Compact Network Server based on Intel Atom® x7000RE/x7000C Series and Intel® Core™ i3 N-Series Processors

Intel Atom® x7000RE/x7000C Series and Intel® Core™ i3 N-Series Processors: integrated Intel UHD Graphics, Intel Deep Learning Boost (Intel DL Boost), Intel Advanced Vector Extensions (Intel AVX2) with INT8 support, and OpenVINO toolkit support
1x DDR5 4800MHz SODIMM up to 16GB, supports IBECC
4x 2.5GbE RJ45 Copper ports with 2 pairs bypass, 1x 1GbE SFP Fiber port
2x 2.5" HDD/SSD, 2x M.2 Key M for storage
1x M.2 Key B for 4G/5G/LTE module
Compact 1U system design
1x M.2 Key E for WiFi module

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

The Portwell PNSR-1000 is a compact 1U rackmount network appliance designed for edge computing and secure networking applications. Powered by Intel Atom® x7000RE/x7000C Series and Intel® Core™ i3 N-Series processors, it delivers efficient performance with up to 8 cores and 25W TDP. The system supports advanced features like Intel UHD Graphics, DL Boost, AVX2 with INT8, and OpenVINO for AI workloads. Equipped with 4x 2.5GbE RJ45 ports (including 2 pairs with bypass) and 1x GbE SFP, it ensures flexible and reliable connectivity. Storage options include dual 2.5" SATA drives and dual M.2 slots for NVMe or SATA, while expansion is enabled via M.2 Key B and Key E sockets. With DDR5 memory up to 16GB, onboard TPM 2.0, and a built-in power supply, the PNSR-1000 is ideal for SD-WAN, UTM, industrial automation, and edge AI deployments.

Specifications

Back to list

CPU/Clock/Cache:	Intel Atom® x7000RE Series Processors Intel Atom® x7000C Series Processors Intel® Core™ i3 N-Series Processors Up to 8 Cores, 25W TDP
Firmware:	AMI Aptio® V UEFI BIOS
Memory:	Total 1 DIMM (1DPC) 1x DDR5 4800MHz SODIMM, up to 16GB Supports In-Band ECC (IBECC)
Expansion:	1x M.2 Key B 3052 socket with 1x nano SIM card slot (USB) 1x M.2 Key E 2230 socket (PCIe) (Optional)
Ethernet:	4x 2.5GbE RJ45 via Intel® Ethernet controller I226, supporting 2 pairs bypass 1x GbE SFP Via Intel® Ethernet controller I210
Storage:	2x 2.5” SATIII HDD/SSD (Optional) 2x M.2 Key M 2280 sockets (SATAIII or Optional NVMe)
Power Supply:	Optional 60W or 100W Build-in Open Frame AC Power Supply, AC 100V-240V input, DC 12V output
Cooling Fan:	CPU: Passive heatsink System: 2x fans
Security:	Onboard TPM 2.0
Dimension:	438mm(W) x 209.6mm(D) x 44mm(H) 17.24"(W) x 8.25"(D) x 1.73"(H)
Serial Interface:	1x RJ45 Console port
USB:	2x USB 3.2 Gen 1, Type A 2x USB 2.0 headers onboard
Display Feature:	1x HDMI connector (by SKU)

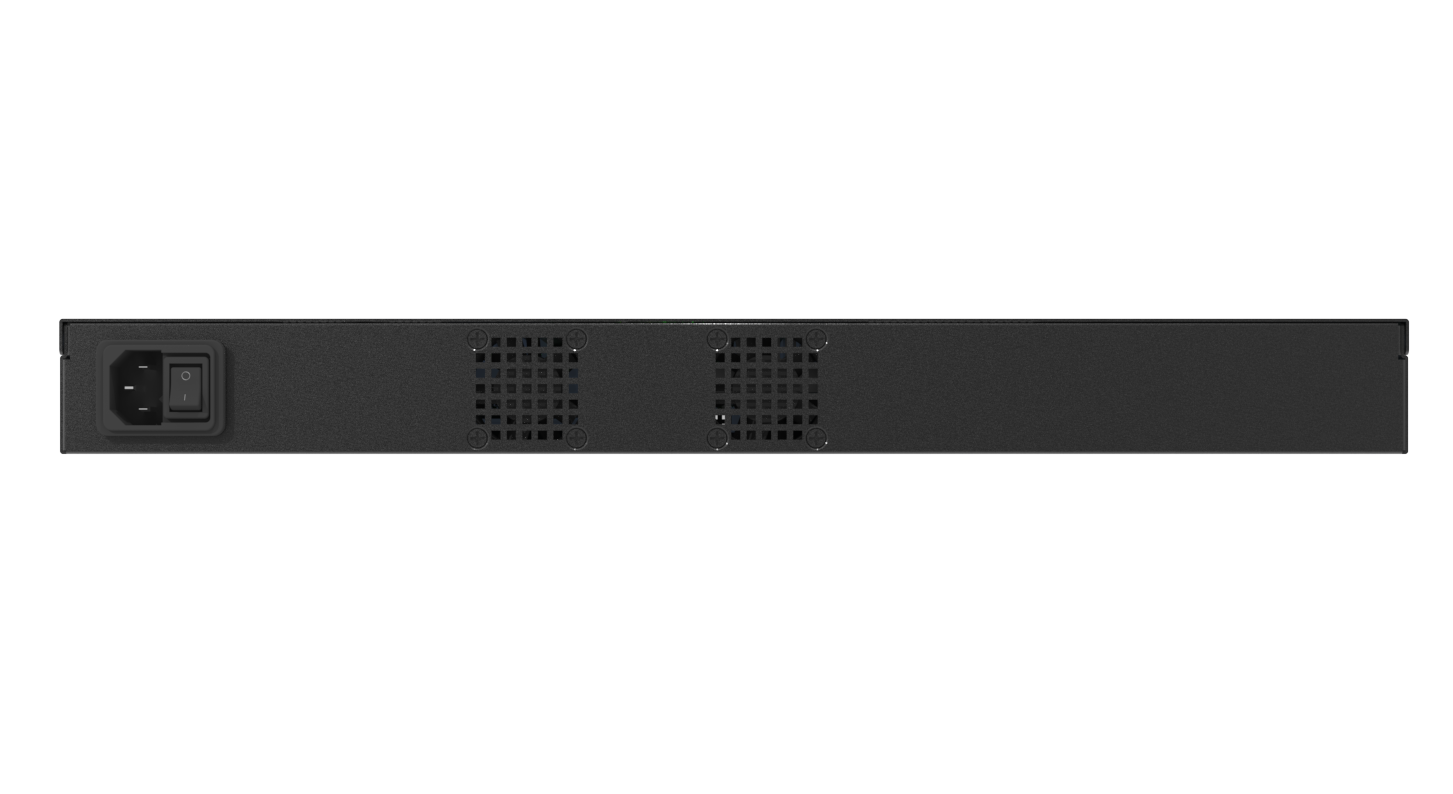

Power:	Front: 1x Reset button 1x Power button Rear: 1x AC power inlet 1x Power switch
Indicator:	Power/HDD LEDs 2x RJ45 bypass status LEDs 8x RJ45 LEDs 2x SFP LEDs
Operating Temperature:	0°C to 40°C (32°F to 104°F )
Storage Temperature:	-20°C to 70° C (-4°F to 167° F)
Relative Humidity:	5% to 95% RH, non-condensing
Certificates:	CE/FCC Compliance
OS Support:	Linux
