CAR-2090
The CAR-2090 is based on Intel's 10th core generation ("Comet Lake") and can be equipped with Xeon W-1200E or Core i3- to i9-10000 and even Pentium or Celeron processor models that provide up to 10 cores and 20 parallel threads while staying at or under 95 watts thermal design power.
  • Intel Coffee Lake / Coffee Lake Refresh Desktop Processor
  • 1 x front-access CASwell NIC Module supported
  • 2 x DDR4 2666MHz UDIMMs up to 64GB
  • 2x USB 3.0, 1x RJ45 Console supported
  • 2x Pair Bypass 3.0 supported
  • 6x GE RJ45 supported (6x Intel i210-AT, co-layout with i211-AT)
We also provide additional features to our finished products if requested.
Contact us, for customized product package!

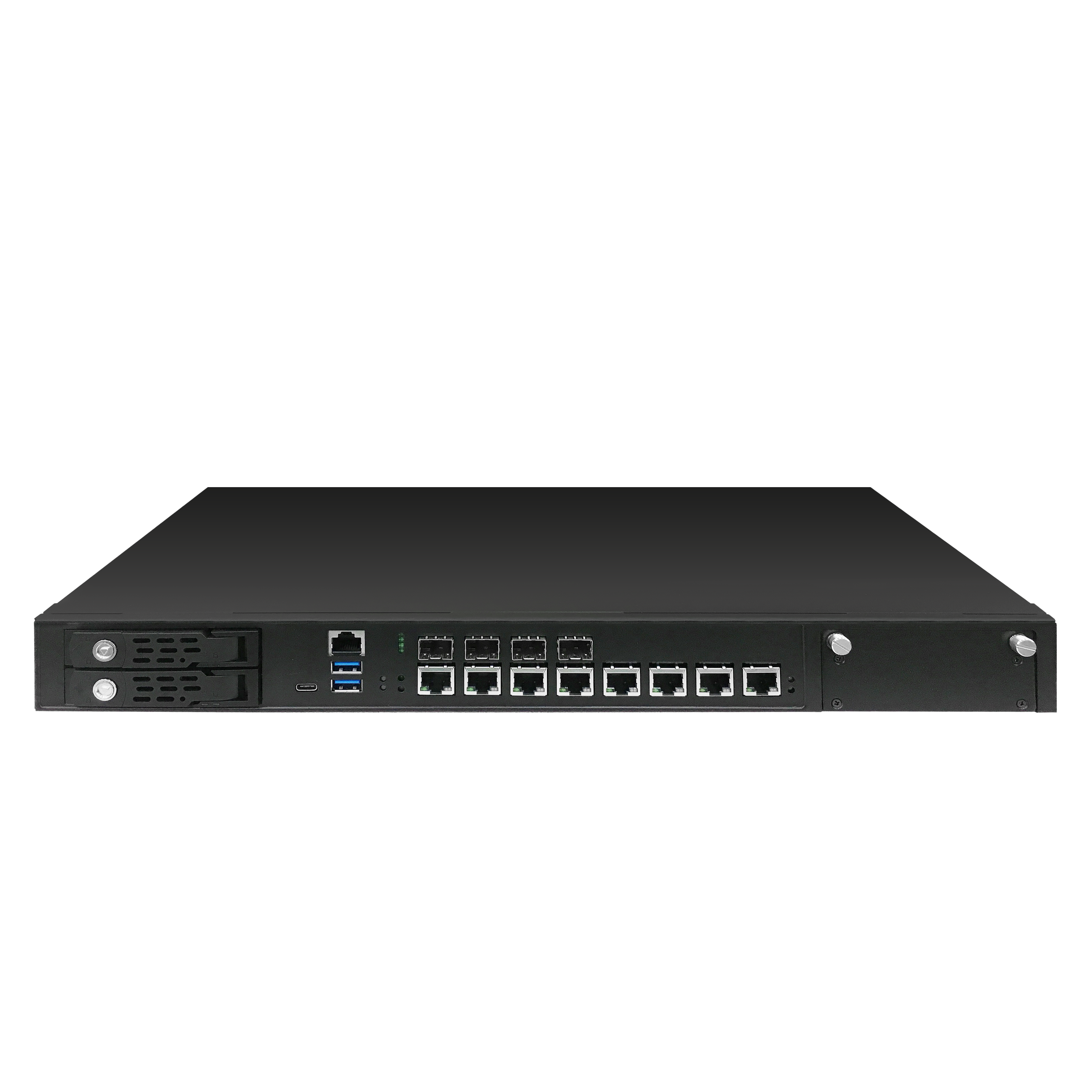

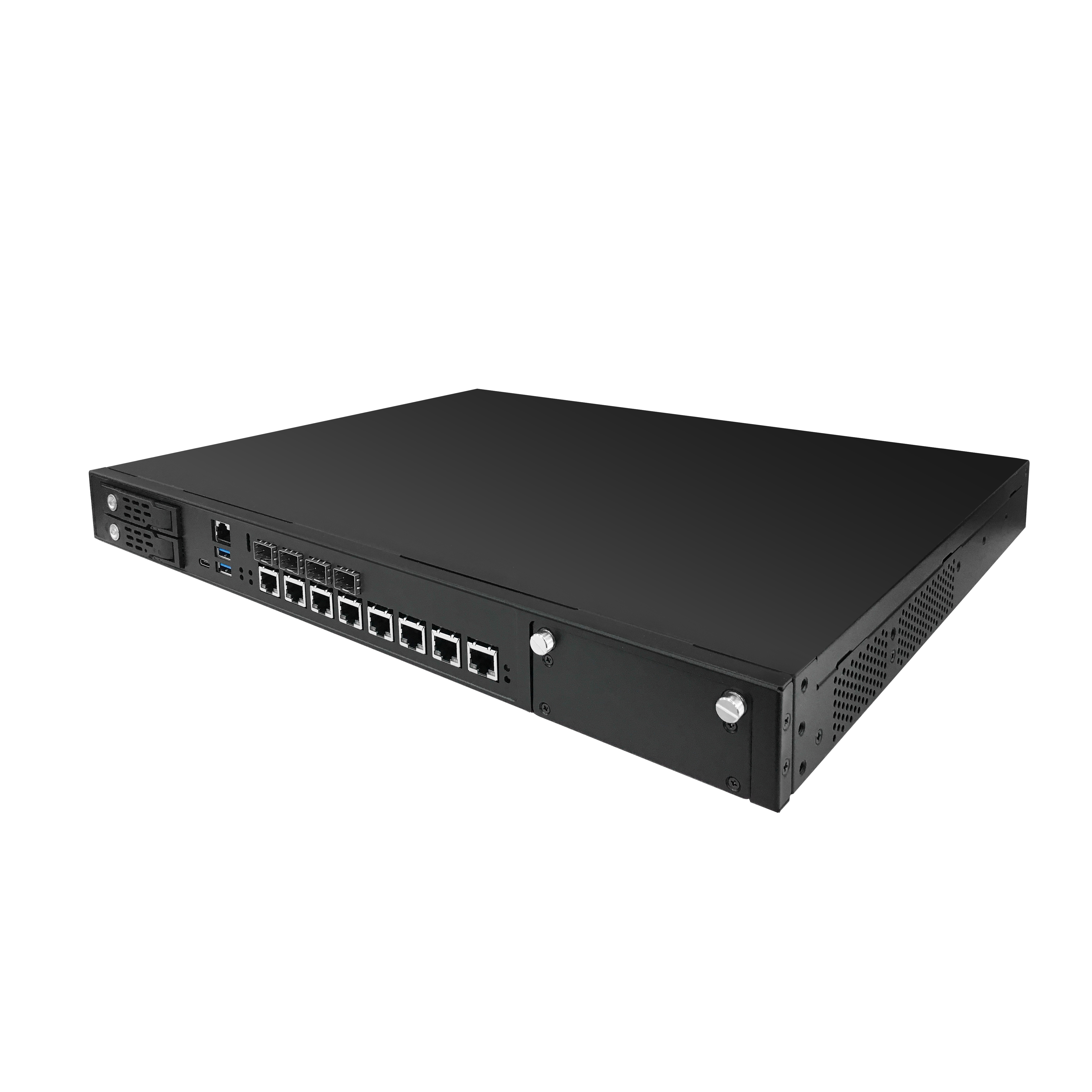

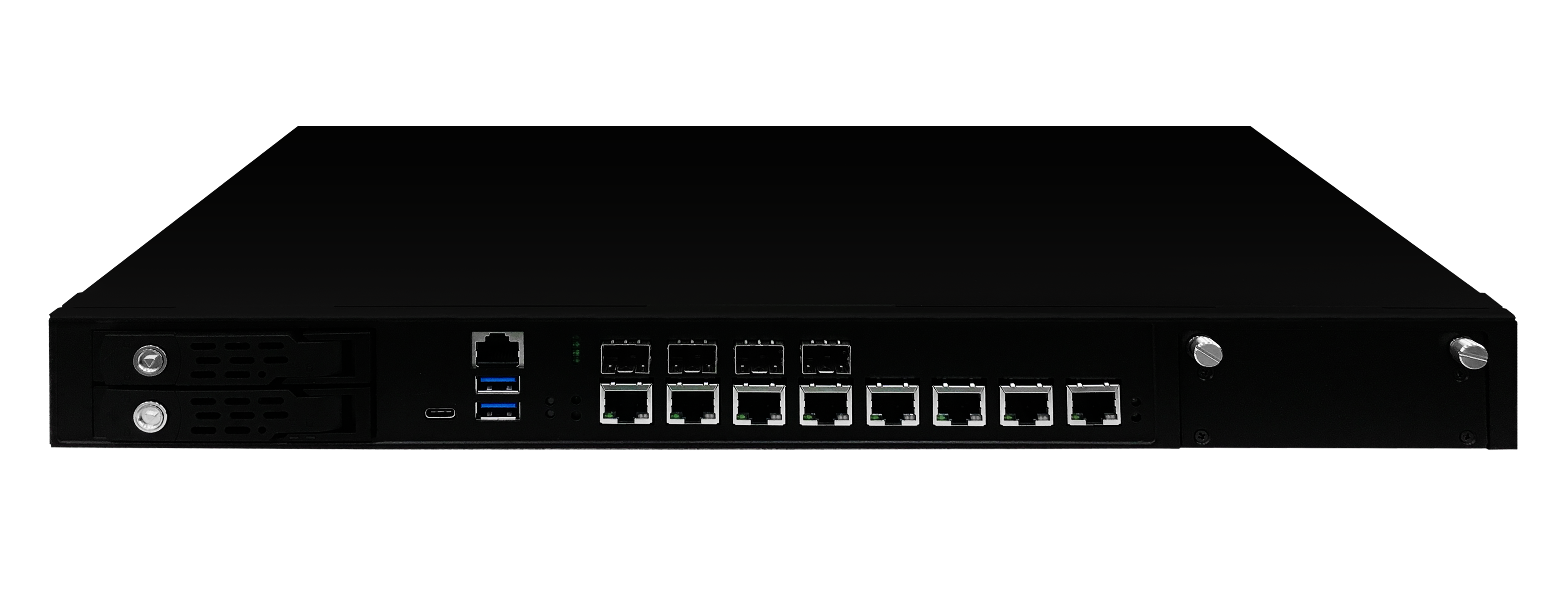

The Portwell CAR-2090 in low-profile 1U form factor is an upgraded and enhanced successor of the widely adopted CAR-2080. This server system offers multiple configuration options for professional security applications like firewalls and unified threat management (UTM) to effectively protect company networks.

The CAR-2090 is based on Intel's 10th core generation ("Comet Lake") and can be equipped with Xeon W-1200E or Core i3- to i9-10000 and even Pentium or Celeron processor models that provide up to 10 cores and 20 parallel threads while staying at or under 95 watts thermal design power. This server system offers two DIMM slots for up to 64GB DDR4-2933 main memory and ECC depending on CPU model and PCH. This ensures the solution can handle demanding and advanced network tasks while staying cool and energy-efficient.

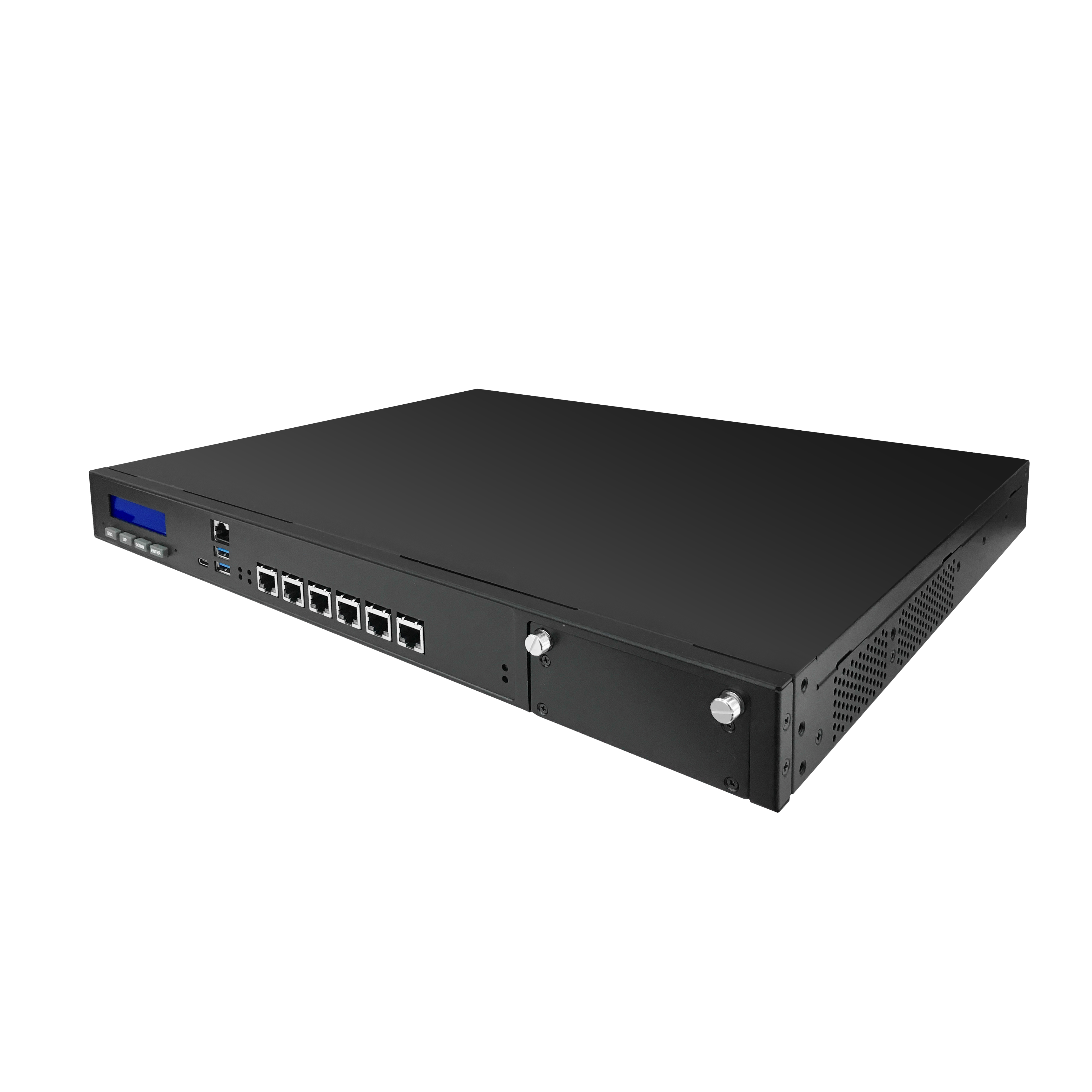

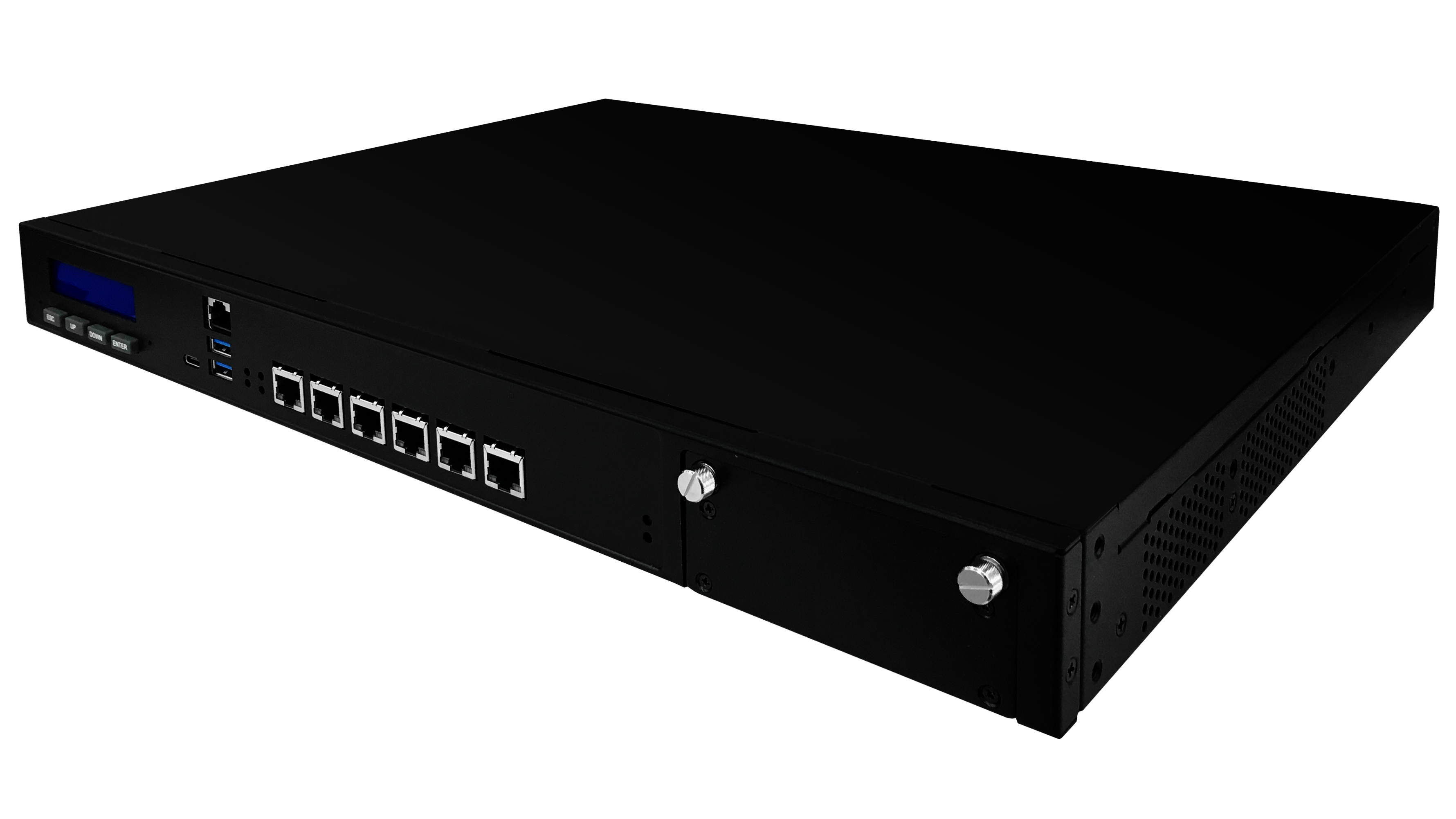

By standard, the CAR-2090 features three internal SATA 3.0 ports for storage (one for SATADOM). When the W480E PCH is used, there is one M.2 slot available onboard for a fast PCIe NVMe or SATA SSD. The LCD module in the front of the device holds one 2.5" SATA disk tray for storage but that EZIO module can be changed to an ISAM module for two front swappable 2.5" SATA drives.
