LEAD-PPC

Industrial Touch (PCAP) Panel PC based on Intel Apollo Lake E3930 with 21.5" or 23.6" screen size and 1920x1080 (FHD) Resolution

Intel® Atom® Dual-Core x5-E3930
Stylish design
128G TLC mSATA
PCAP touch (10 point)
IP65 (Front)

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Portwell Panel PC or PPC provides the highest computing power for our customers by adopting Intel Apollo Lake dual-core processor E3930. By offering an optional operating system, users can choose either Win 10, Android or Linux Ubuntu, which provides them with incredible flexibility. The Gigabit Ethernet is available and can be up to two ports. The bezel-free characteristic makes it also suitable to be placed at occasions that face end customers. The serial port control ability makes it still good for conventional industrial automation application.

Specifications

Downloads

Back to list

CPU:	Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W)
Screen Size:	21.5 inch 23.6 inch
Speaker:	2x 3W
Operating Temperature:	0~50℃
Power Requirement:	40W AC-DC Adapter (AV and AC version) 60W AC-DC Adapter (BV and BC version)
Power Connector:	DC 12V via DC Jack (AV and AC version) DC 24V via 3-pin terminal block connector (BV and BC version)
Cabinet:	stylish plastic housing
IP Protection:	IP65 Front
Dimensions:	521.9(W) x 321.4(H) x 43.7(D)mm - 21.5" 561.9(W) × 353.36(H) × 42.9(D)mm - 23.6"

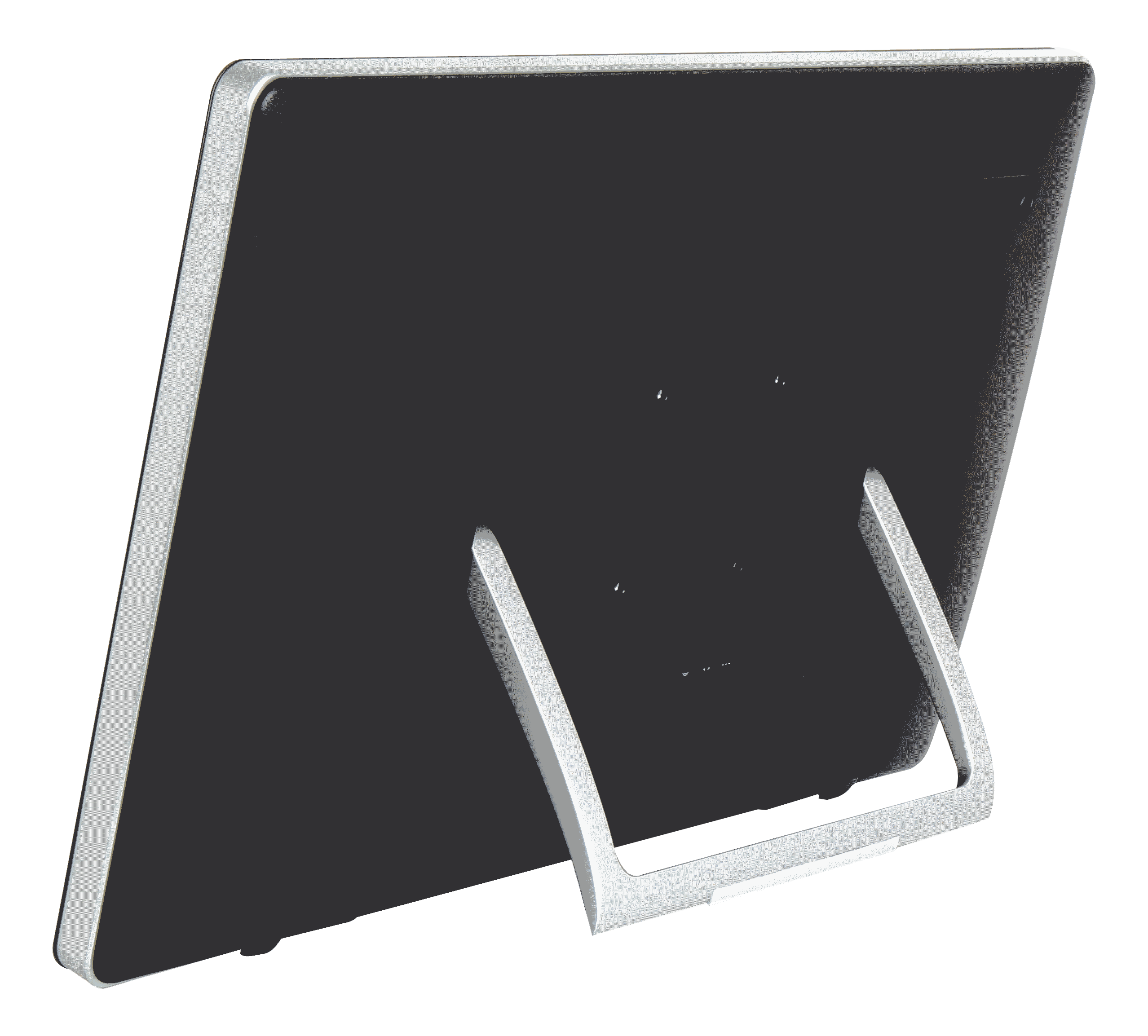

Mounting:	VESA 75x75 Table top with integrated stand
Weight:	3,93 kg - 21.5" 4,6 kg - 23.6"
Graphic Interface:	Input: 1x HDMI, 1x DP, 1x VGA (AV and BV version) Input: 1x HDMI, 1x DP (AC and BC version)
Resolution:	1920x1080 (FHD)
Brightness:	250 cd/m2
Contrast Ratio:	1000 : 1 (Typical) / 50,000,000 : 1 (DCR)
Display Ratio:	16:9
Backlight Unit:	LED type
Viewing Angle (L/R,U/D):	170° (H) / 160° (V)
MTBF:	25,000 hours (Backlight)
Serial Interface:	1 x Tx/Rx for OSD function (AC and BC version)
USB:	2x USB 2.0 1x Micro USB for Touch only
Miscellaneous:	OSD Key - Power / Menu / Right / Left / Auto
OS Support:	Android 6.0
Memory:	1GB DDR3L on board
Storage:	16G eMMC on board
Ethernet:	1 x Gigabit Ethernet (Realtek® RTL8211E)
Certificates:	CE / FCC Class A
Storage Temperature:	-20~60°C
