FUDA4-S1X23-Series

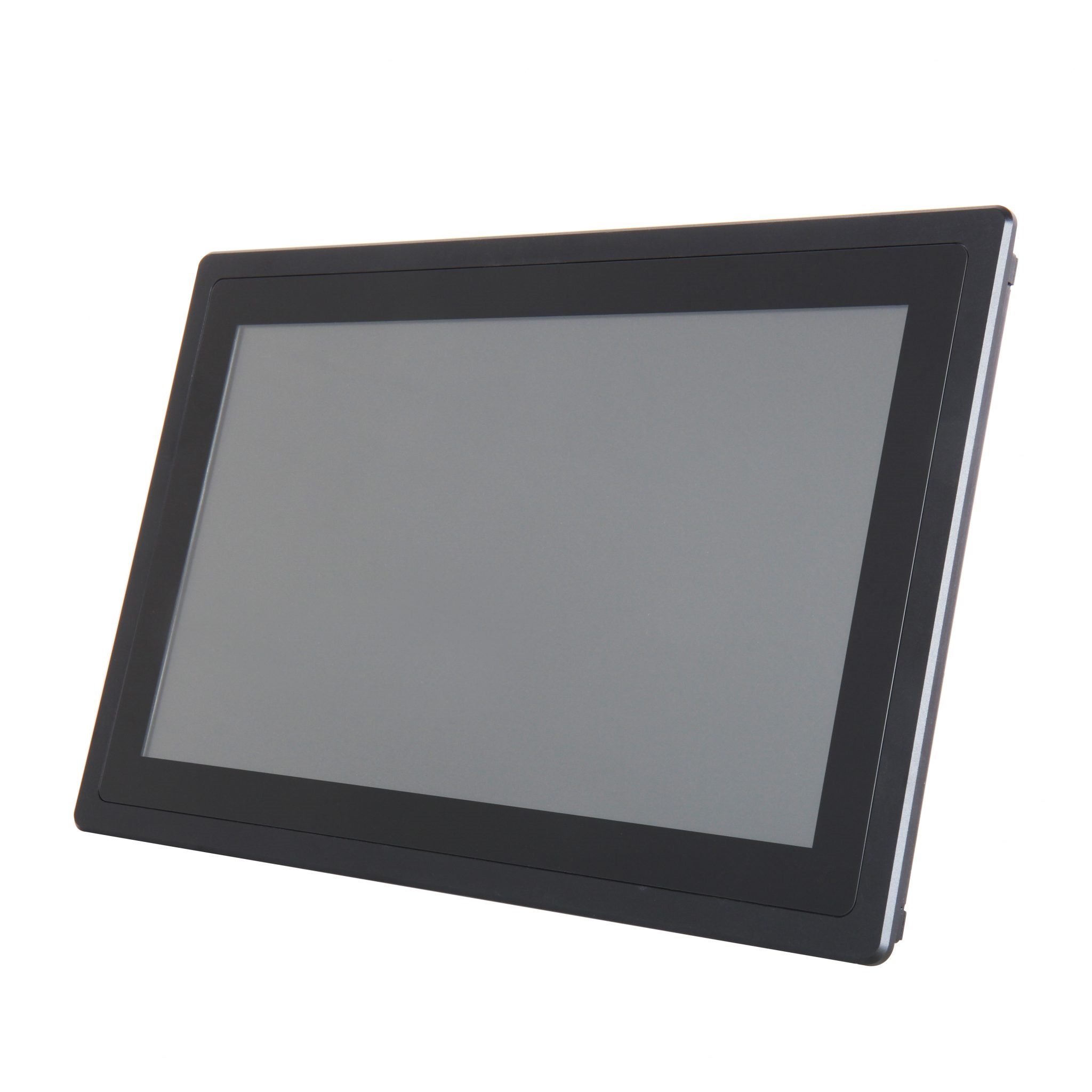

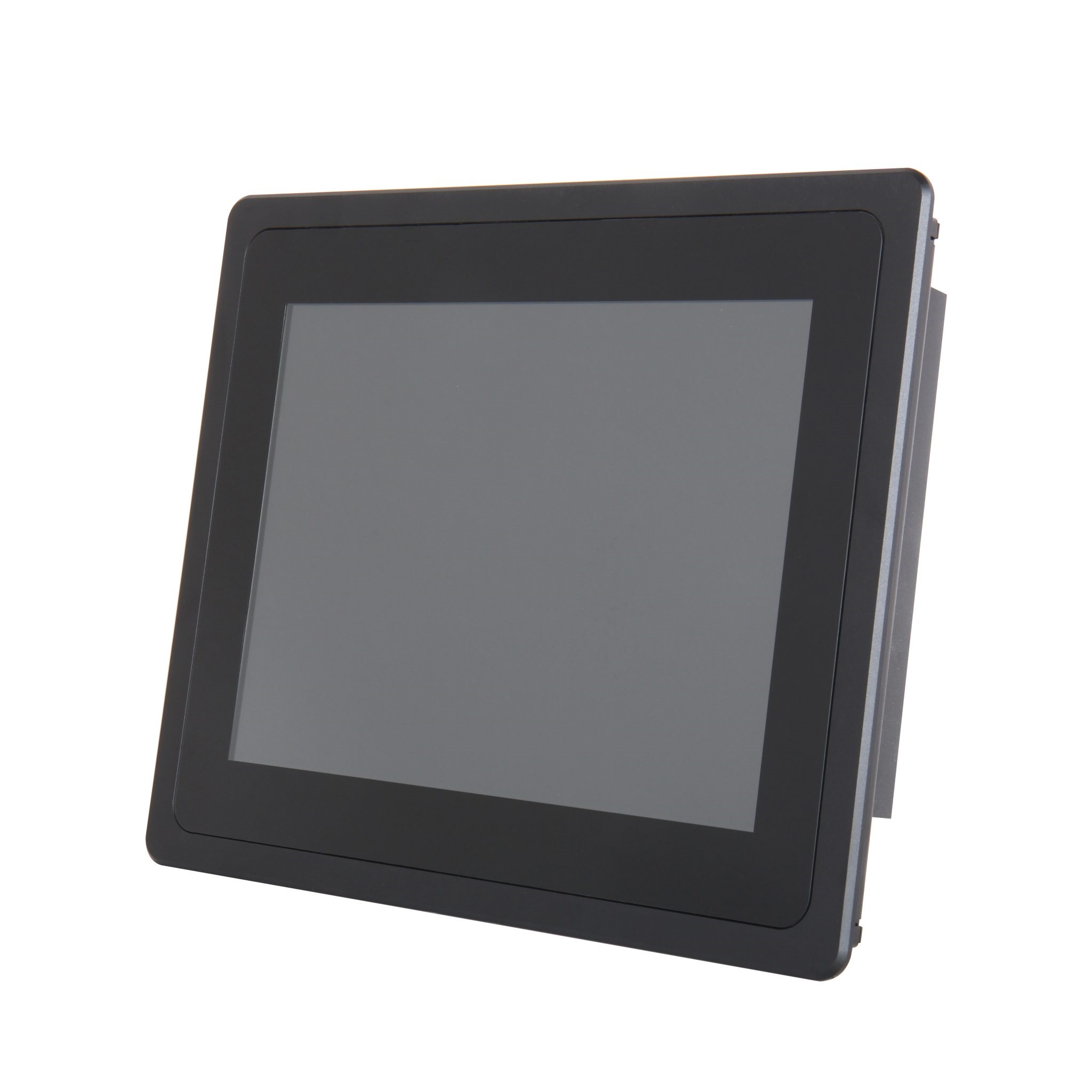

Slim industrial-grade panel PC series in 10.4", 12.1", 15", and widescreen 15.6", featuring PCAP multi-touch screen

Intel Atom® x7000RE Processor Series based industrial Panel PC series with PCAP multi-touch screen, IP65 front and IP20
Up to 32GB DDR5 SDRAM
IP65 front bezel and IP20 enclosure
Dual 2.5GbE Ethernet ports
eMMC storage up to 128GB, optional expansion via M.2 SSD
Wide DC input: 12V to 24V
Wide operating temperature support: -25°C to 65°C

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

The Portwell FUDA4-S1X23 Panel PC series delivers powerful yet energy-efficient edge computing, powered by the Intel Atom® x7000RE processor family. Designed for industrial and embedded applications, each unit features a responsive PCAP multi-touch screen available in 10.4", 12.1", 15", and widescreen 15.6" sizes. The display offers 400–600 nits of brightness for clear visibility in high ambient light, and a 3000:1 contrast ratio for sharp, vivid visuals. Storage options include up to 128GB eMMC and optional M.2 SSD expansion, providing flexibility for various workloads.

Dual 2.5GbE Ethernet ports ensure fast, reliable network connectivity. Built to withstand harsh conditions, the front bezel is rated IP65, while the enclosure meets IP20 standards for safe indoor deployment. This Panel PC series combines efficient processing, enhanced display clarity, and rugged protection to meet the demands of modern industrial and embedded display applications.

Specifications

CPU:	Intel Atom® x7433RE Processor (4 / 3.4 GHz, 6 MB, 9 W)
LCD:	FUDA4-S1023: 10.4” FUDA4-S1223: 12.1” FUDA4-S1523: 15” FUDA4-S1623: 15.6”
Resolution:	FUDA4-S1023, FUDA4-S1223 & FUDA4-S1523: 1024 x 768 FUDA4-S1623: 1366 x 768
Brightness:	FUDA4-S1023: 450 cd/m2 FUDA4-S1223: 600 cd/m2 FUDA4-S1523: 450 cd/m2 FUDA4-S1623: 400 cd/m2
Contrast Ratio:	FUDA4-S1023, FUDA4-S1223 & FUDA4-S1523: 3000:1 FUDA4-S1623: 800:1
Backlight Unit:	LED Type
Touch:	Projected Capacitive Multi-Touch Screen (10 points)
Processor:	Intel Atom® X7433RE processor (6M Cache, up to 3.40 GHz) (TDP: 9 watt)
Memory:	DDR5 4800 MT/s SDRAM on one 262 pin SO-DIMM socket up to 32GB
Firmware:	AMI
Graphics:	Intel® UHD Graphics
LAN Chipset:	Intel I226IT
Watchdog Timer:	Programmable 1~255 sec
Storage:	Onboard eMMC 5.1 Flash up to 256GB (default:128GB) M.2 2242/2260/2280 M key socket
OS Support:	Windows 10/Windows 11/ Linux

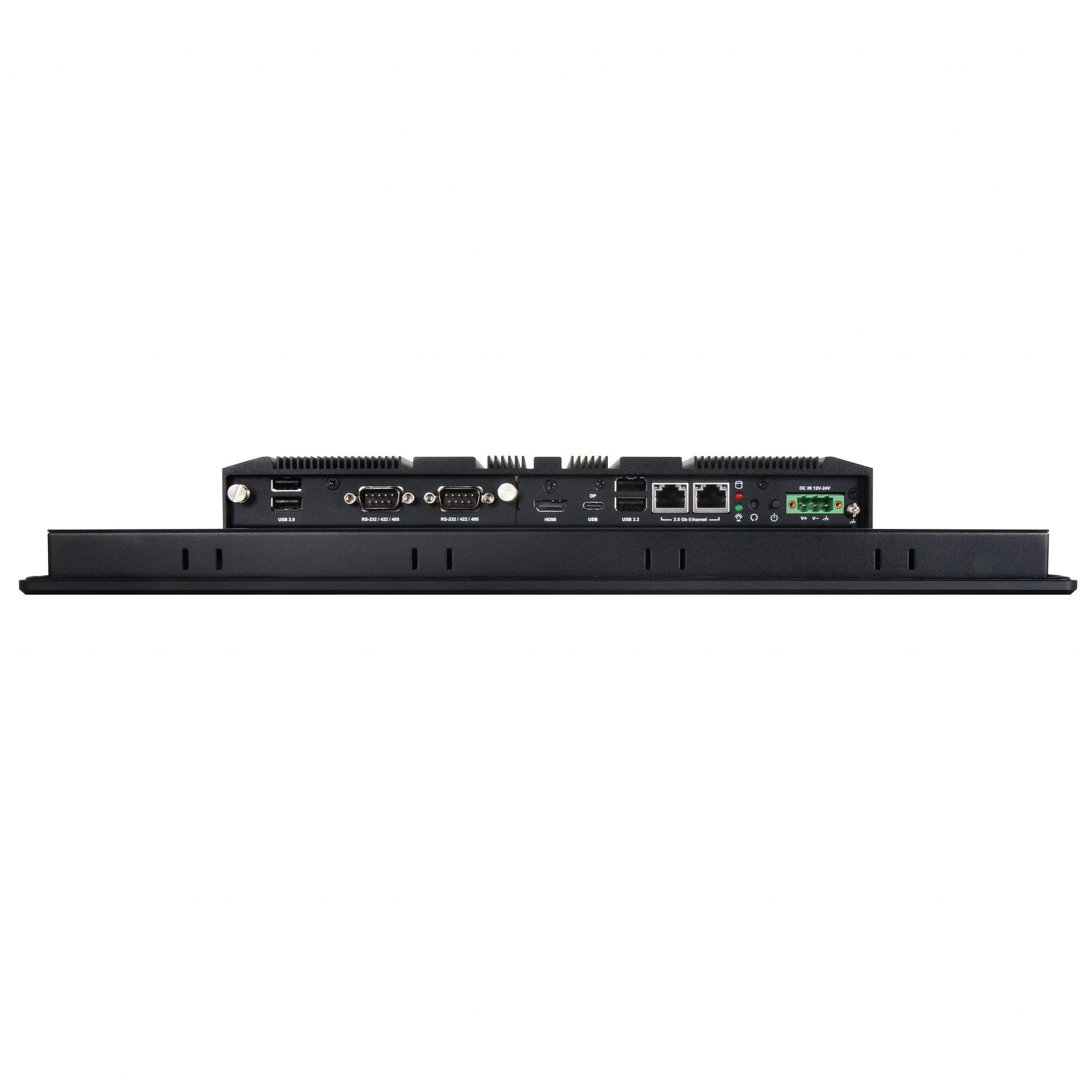

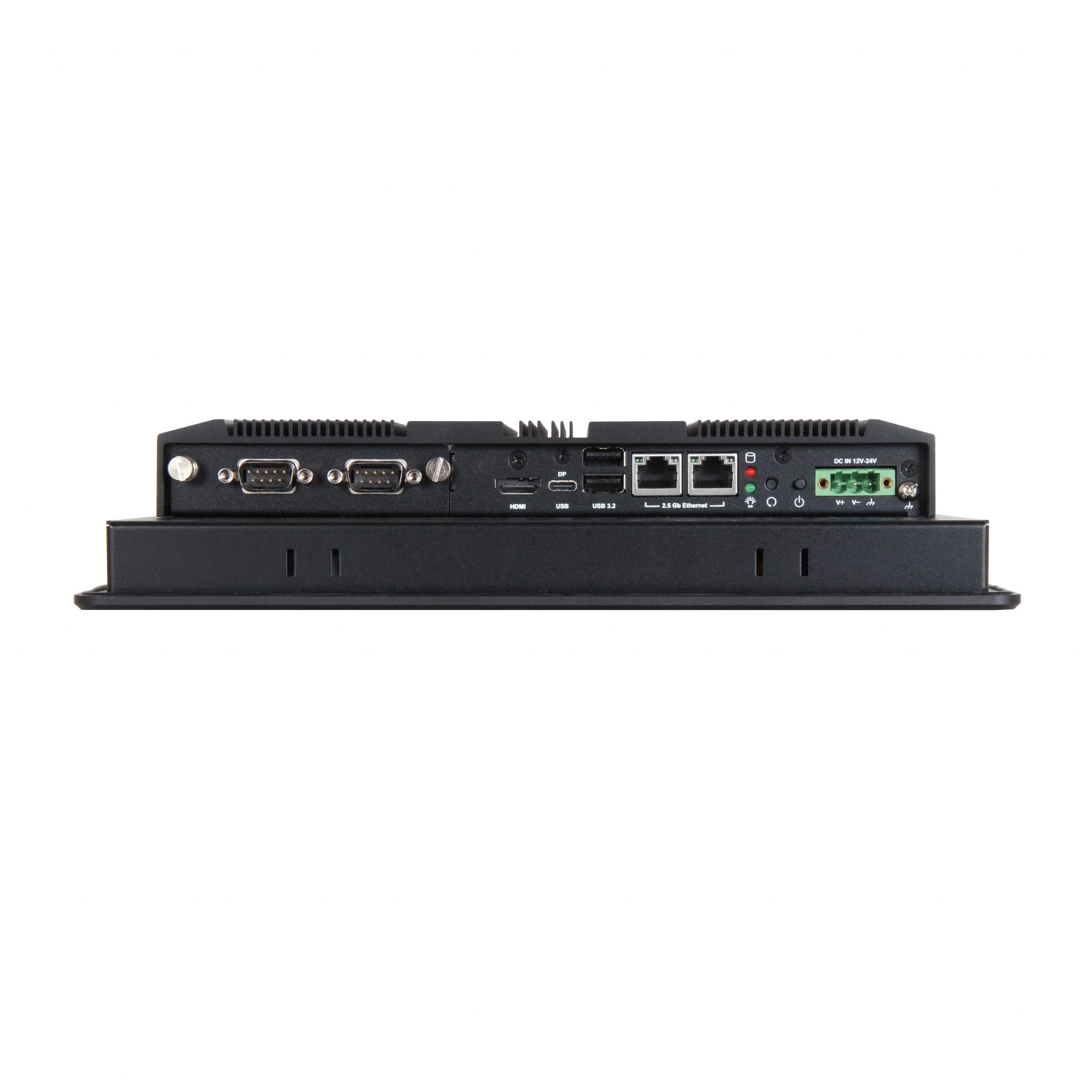

Serial Interface:	FUDA4-S1023: 2x RS-232/RS-422/RS-485 FUDA4-S1223, FUDA4-S1523, FUDA4-S1623: Extension I/O board selection - 2x RS-232/RS-422/RS-485 + 2x USB 2.0 - 2x RS-232/RS-422/RS-485 + 1x RS-232 - 2x RS-232/RS-422/RS-485 + 1x 2ch DIDO
Display Feature:	1x HDMI® 2.0b 1x USB Type C with DP ALT mode
LVDS:	Single/Dual Channel 24-bit
USB:	2x USB 3.2 Gen2 (10Gbps) 1x USB Type C (DisplayPort/USB 10Gbps support)
Ethernet:	2x Intel® I226IT 2.5GbE Ethernet
Other:	1x 3 pin Terminal Block Connector 1x Power Button, Reset Button 1x Power LED, 1x Storage LED
Expansion:	1x M.2 2230 E key socket Extension I/O board selections
Dimension:	FUDA4-S1023: 282 x 238 x 57.3 FUDA4-S1223: 306 x 260 x 58.2 FUDA4-S1523: 384 x 310 x 56.6 FUDA4-S1623: 415 x 265 x 56.6
Mounting:	VESA Mount 75x75, 100x100, Panel Mount
Weight:	4.8 kg
Power Supply:	12V~24V DC
Operating Temperature:	-25 ~ 65°C degree
Power Supply:	Terminal Block 12~24V
Storage Temperature:	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Vibration:	1G 10~500Hz with eMMC/SSD (IEC 60068-2-64)
Shock:	15G peak acceleration (11m sec. duration) / operation
IP Protection:	Front Bezel: IP65 Whole enclosure: IP20 (IEC 60529 Edition 2.1 Standard)
Certificates:	FCC/CE/UKCA Class A/Heavy Industry EN61000-6-2、EN61000-6-4 CE LVD Safety (EN 62368-1)
Security:	TPM 2.0
