FUDA4-S1X13-Series

Slim industrial-grade panel PC series in 10.4", 12.1", 15", and widescreen 15.6", featuring 5-wire resistive touch screen (single-touch)

Intel Atom® x7000RE Processor Series based industrial Panel PC series with 5-wire resistive touch screen (single-touch), IP65 front and IP20
Up to 32GB DDR5 SDRAM
Versatile I/O: 2× Gigabit Ethernet, HDMI®, USB 3.0/2.0, high-speed RS-232/422/485 UART (up to 921.6 kbps), and Mini-PCIe expansion.
Dual 2.5GbE Ethernet ports
eMMC storage up to 128GB, optional expansion via M.2 SSD
IP65 front bezel and IP20 enclosure
Wide operating temperature support: -25°C to 65°C

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

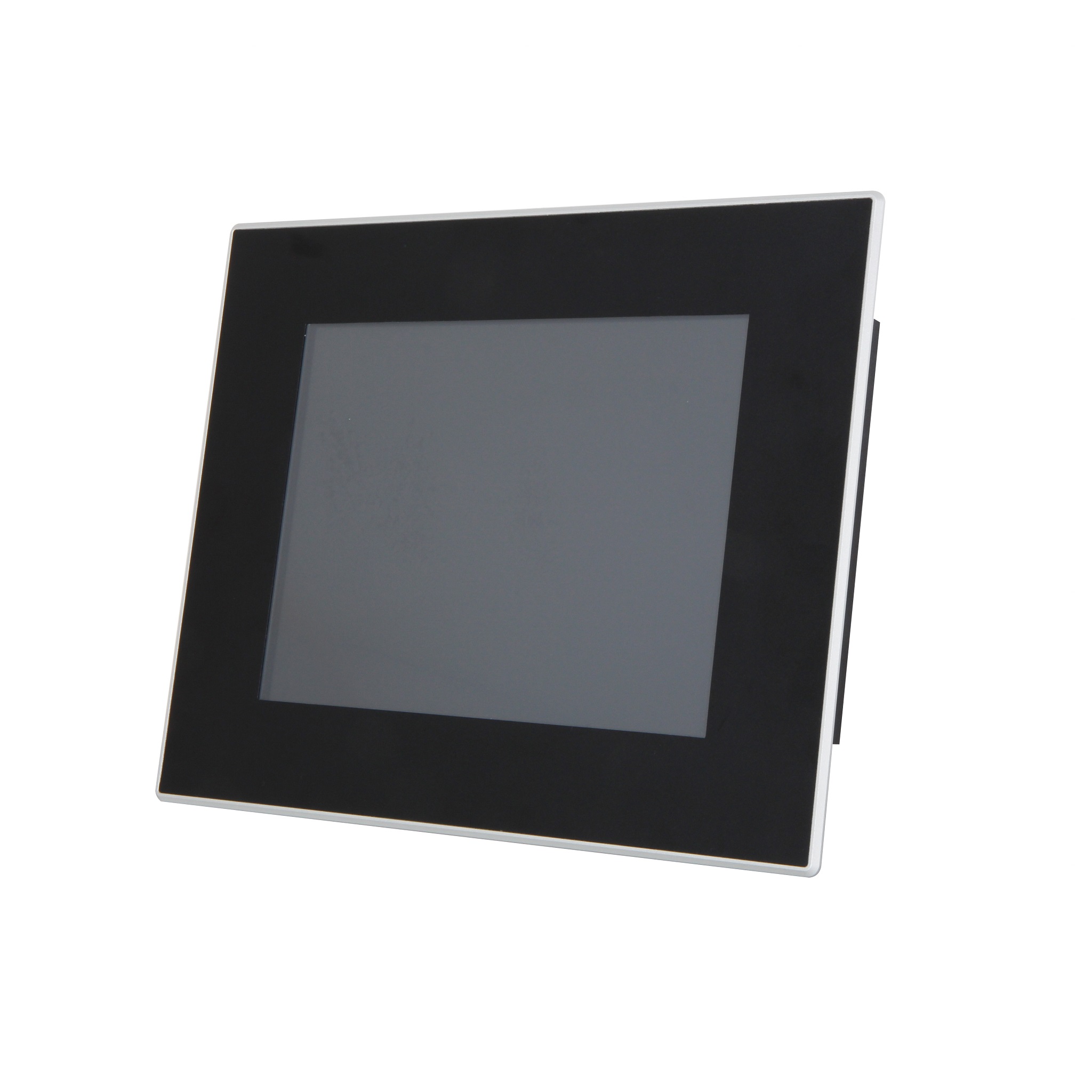

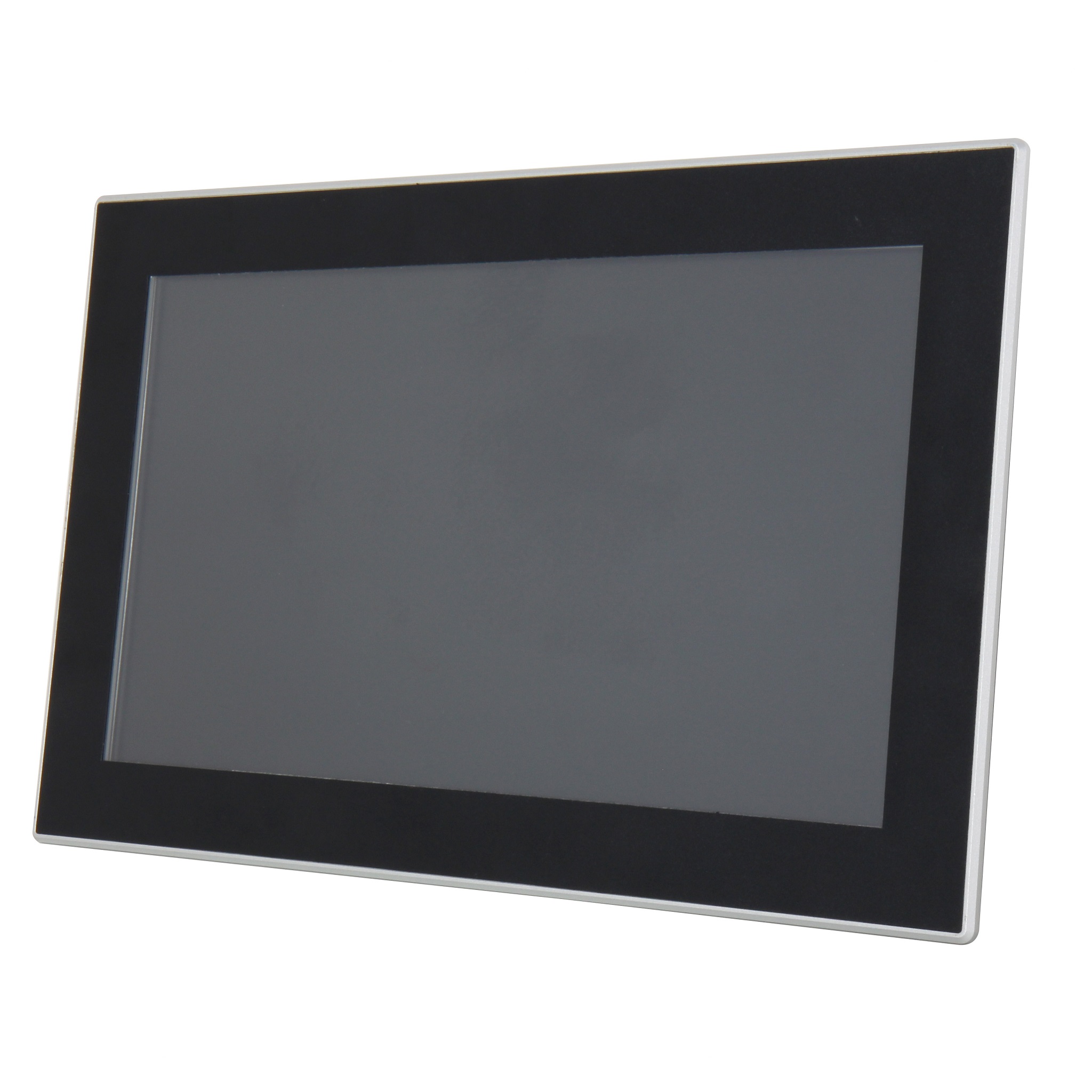

The FUDA4-S1X13 Series is a line of robust industrial panel PCs featuring 5-wire resistive single-touch screens, ideal for environments requiring precise input and durability. Available in 10.4", 12.1", 15", and 15.6" display sizes, each model is powered by the Intel Atom® X7433RE processor with ultra-low 9W TDP, ensuring energy-efficient performance. Designed for harsh conditions, these units support wide temperature ranges (-25°C to 65°C), 12V~24V DC input, and IP65-rated front bezels.

With DDR5 memory up to 32GB, dual 2.5GbE LAN, modular I/O options, and onboard eMMC storage, the FUDA4-S1X13 Series delivers reliable operation for HMI, factory automation, and embedded control systems. Its fanless design and industrial-grade EMC compliance make it a dependable solution for long-term deployment in demanding settings.

Specifications

CPU:	Intel Atom® x7433RE Processor (4 / 3.4 GHz, 6 MB, 9 W)
LCD:	FUDA4-S1013: 10.4” FUDA4-S1213: 12.1” FUDA4-S1513: 15” FUDA4-S1613: 15.6”
Resolution:	FUDA4-S1013, FUDA-S1213 & FUDA-S1513: 1024 x 768 FUDA4-S1613: 1366 x 768
Brightness:	FUDA4-S1013: 450 cd/m2 FUDA4-S1213: 600 cd/m2 FUDA4-S1513: 450 cd/m2 FUDA4-S1613: 400 cd/m2
Contrast Ratio:	FUDA4-S1013, FUDA4-S1213 & FUDA4-S1513: 3000:1 FUDA4-S1613: 800:1
Backlight Unit:	LED Type
Power Consumption (Max):	Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz)
Touch:	5-Wire Resistive Single Touch Screen
Processor:	Intel Atom® X7433RE processor (6M Cache, up to 3.40 GHz) (TDP: 9 watt)
Memory:	DDR5 4800 MT/s SDRAM on one 262 pin SO-DIMM socket up to 32GB
Firmware:	AMI
Graphics:	Intel® UHD Graphics
LAN Chipset:	Intel I226IT
Watchdog Timer:	Programmable 1~255 sec
Storage:	Onboard eMMC 5.1 Flash up to 256GB (default:128GB) M.2 2242/2260/2280 M key socket
OS Support:	Windows 10/Windows 11/ Linux

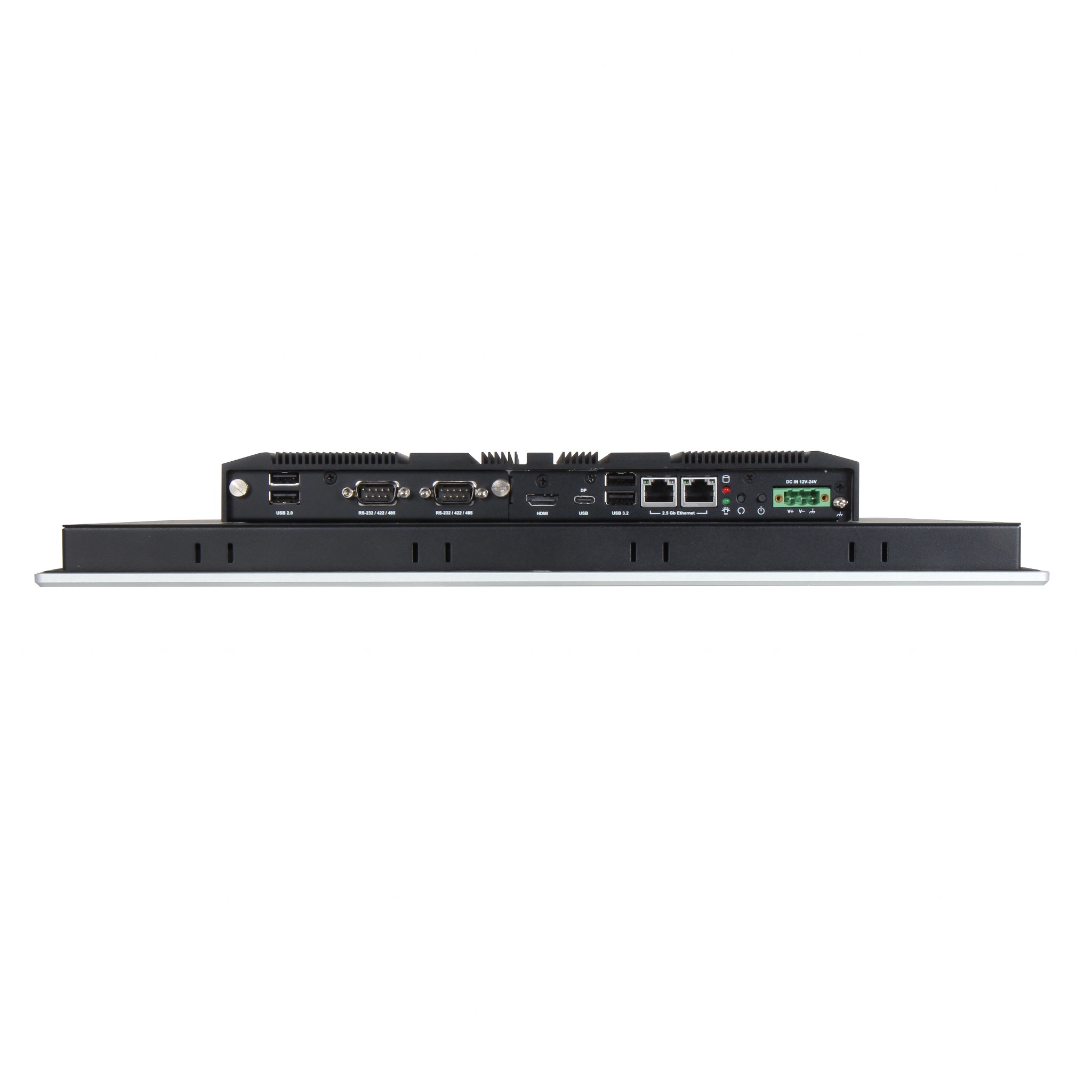

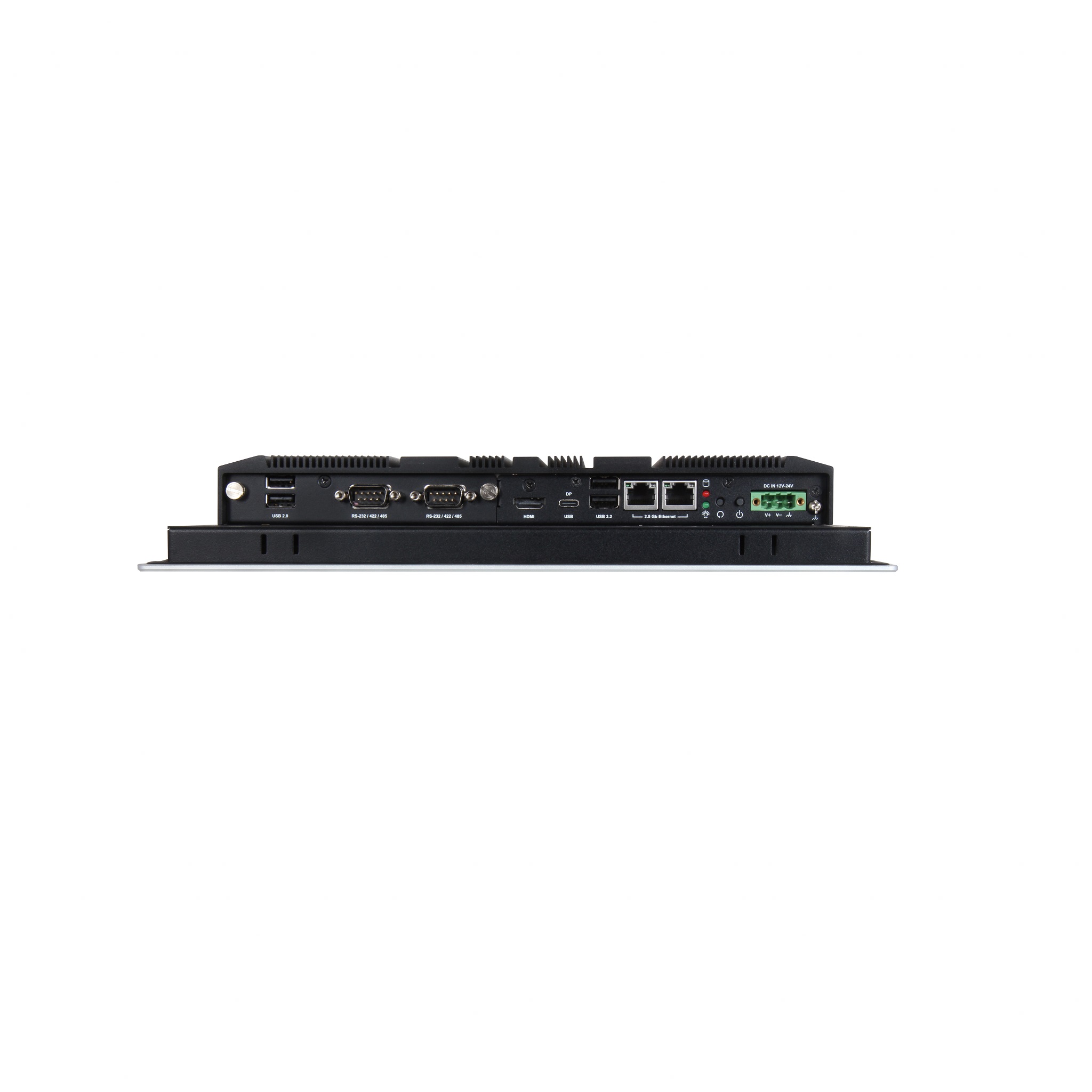

Serial Interface:	Extension I/O board selection - 2x RS-232/RS-422/RS-485 + 2x USB 2.0 - 2x RS-232/RS-422/RS-485 + 1x RS-232 - 2x RS-232/RS-422/RS-485 + 1x 2ch DIDO
Display Feature:	1x HDMI® 2.0b 1x USB Type C with DP ALT mode
USB:	2x USB 3.2 Gen2 (10Gbps) 1x USB Type C (DisplayPort/USB 10Gbps support)
Ethernet:	2x Intel® I226IT 2.5GbE Ethernet
Other:	1x 3 pin Terminal Block Connector 1x Power Button, Reset Button 1x Power LED, 1x Storage LED
Expansion:	1x M.2 2230 E key socket Extension I/O board selections
Dimension:	FUDA4-S1013: 314 x 253 x 50.2 FUDA4-S1213: 343 x 282 x 53.2 FUDA4-S1513: 425.4 x 330 x 55.6 FUDA4-S1613: 415 x 265 x 56.6
Mounting:	VESA Mount 75x75, 100x100, Panel Mount
Weight:	4.3 kg
Power Supply:	12V~24V DC
Operating Temperature:	-25 ~ 65°C degree
Power Supply:	Terminal Block 12~24V
Storage Temperature:	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Vibration:	1.0G Random Operation, 10~500Hz (eMMC, SSD)
Shock:	15G peak acceleration (11m sec. duration) / operation
IP Protection:	Front Bezel: IP65 Whole enclosure: IP20 (IEC 60529 Edition 2.1 Standard)
Certificates:	FCC/CE/UKCA Class A/Heavy Industry EN61000-6-2、EN61000-6-4 CE LVD Safety (EN 62368-1)
Security:	TPM 2.0
