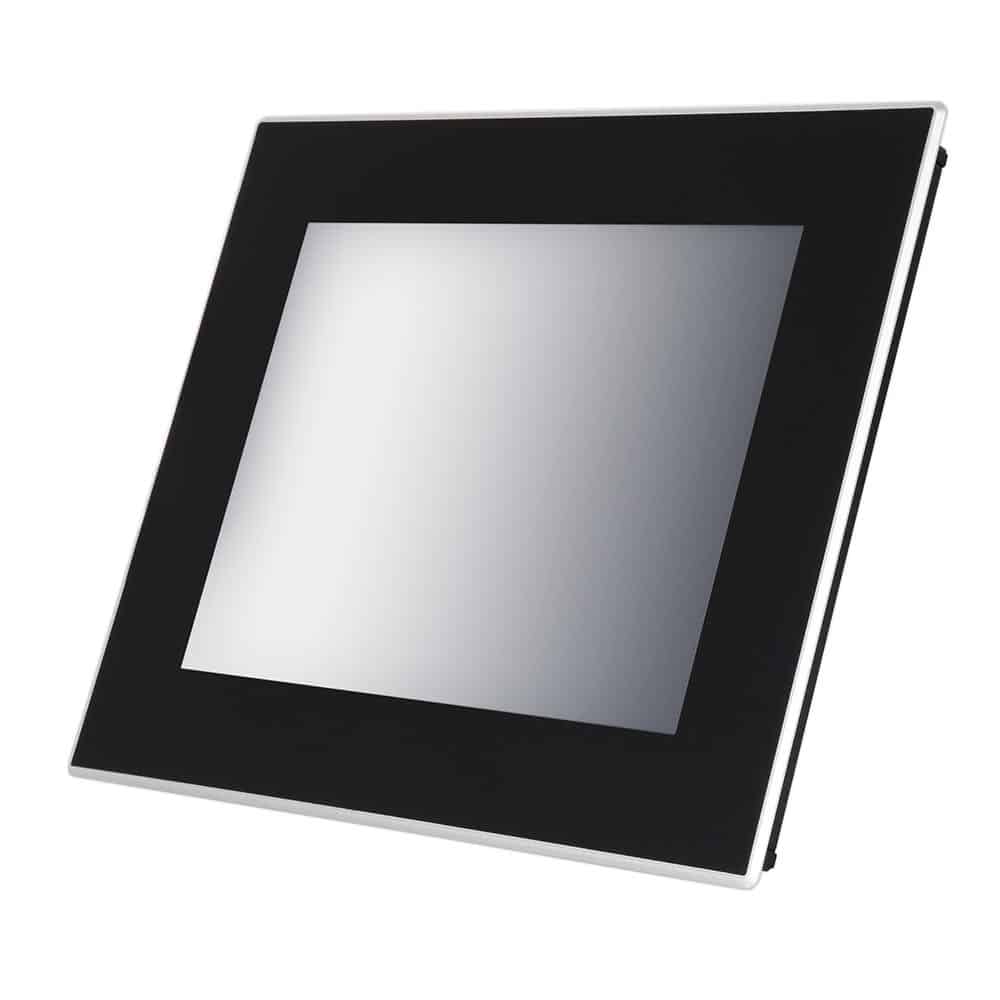

In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. By enhancing performance and power efficiency, FUDA3 Series is an ideal HMI in factory automation, food and beverage industry, vending machine or semi-outdoor environments.

• Specifications

CPU:	Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W)
LCD:	10.4" 12" 15"
Contrast Ratio:	3000:1

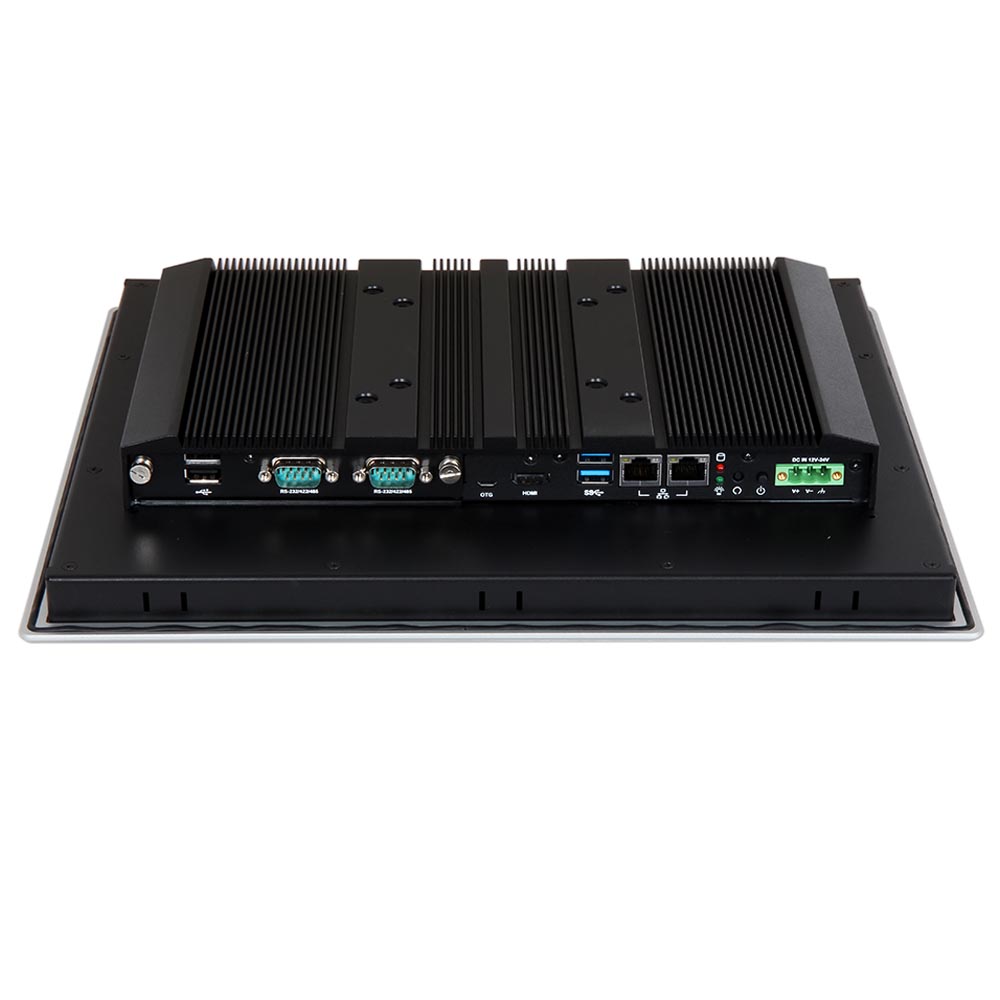

Ethernet I/O Interface:	Dual Intel® I210 Gigabit Ethernet
DRAM:	DDR3L SO-DIMM 1866 MHz up to 8 GB
Graphic Controller:	Intel® Gen 9 Graphics Engine
Display Feature:	1024 x 768 to 1366 x 768
Storage:	1x 2.5" SATA II (3.0 Gb/s) , 1x Type II
Network:	2x Intel® I210IT Gigabit Ethernet

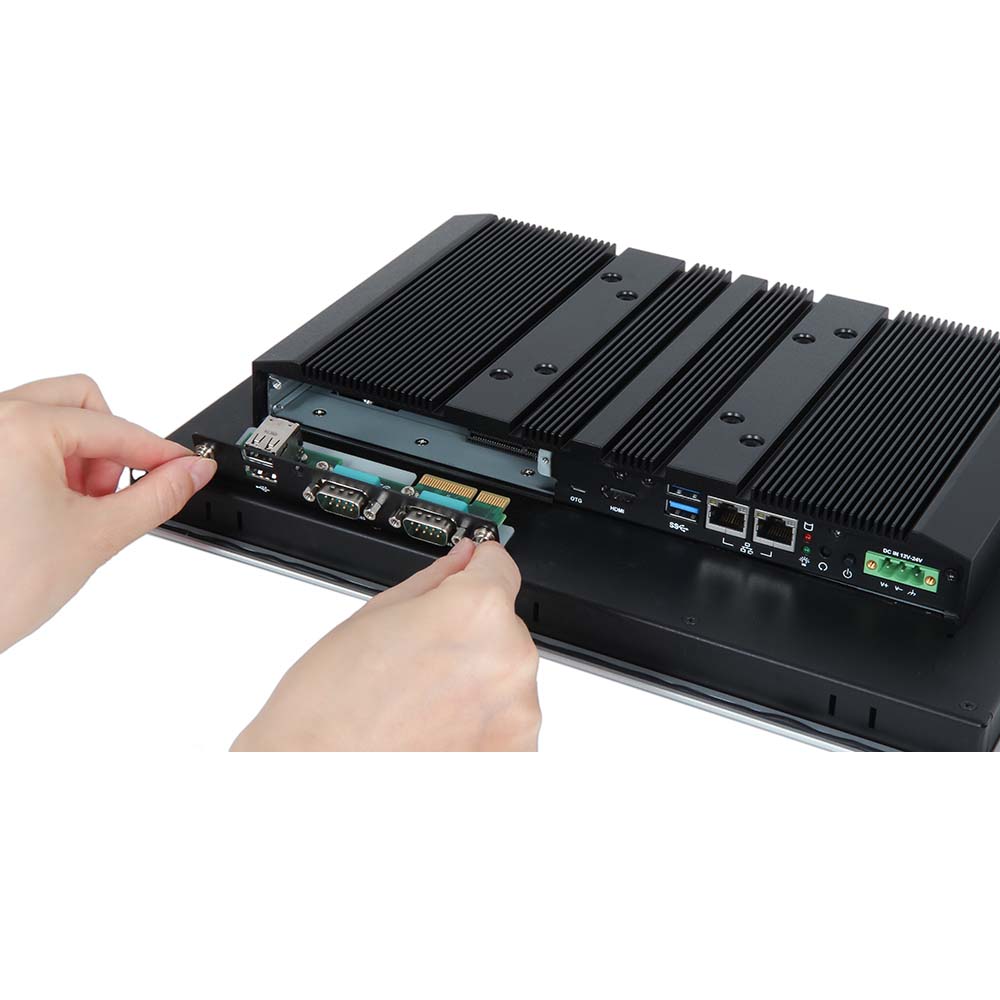

Serial Interface:	2x RS-232/422/485 (default Expansion slot)
USB:	1x USB 2.0, 1x USB 3.0, 2x USB 2.0 (Default expansion slot)
Watchdog Timer:	Programmable 1 ~ 255 sec
Touch:	Projective Capacitive Multi-Touch or 5-Wire Resistive Single Touch
Miscellaneous:	1x SMA Antenna hole for WiFi/3G Solution, ACPI 3.0 / APM 1.2
Firmware:	AMI UEFI BIOS
OS Support:	Windows 7, Windows 10, Linux
Power Requirement:	12 ~ 24VDC, 3 pin Phoenix connector
Power to W:	35 W
Operating Temperature:	0°C to +50°C
Extended Temperature:	-25°C to +70°C
Storage Temperature:	-25°C ~ 60°C / -40°C ~ 85°C (20 ~ 90% non-condensing)
Mounting:	VESA Mount 75 x 75& 100 x 100; Panel Mount
Dimensions:	282 x 238 x 57.3 mm
Weight:	3.5 kg to 5.8 kg
Shock:	15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
Vibration:	1.0G (SD/CF/SSD) and 0.5G (HDD) , Power on & 2.16G
IP Protection:	IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificates:	CE/FCC Class A, UKCA, EN62368-1, EN61000-6-2
BIOS:	AMI
OS Support:	Windows 10/ Linux™

• Order Info

name	code	description	availability
AL6-3292		(R).ATO. FUDA3-S1022-0000-00. 10.4″ Intel Apollo Lake E3950 Projective Capacitive Touch Panel PC
AL6-3296		(R).ATO. FUDA3-S1222-0000-00. 12.1″ Intel Apollo Lake E3950 Projective Capacitive Touch Panel PC
AL6-3291		(R).ATO. FUDA2-S1522-0000-00. 15″ Intel Apollo Lake E3950 Projective Capacitive Touch Panel PC
