LYNX-812D

Robust, fanless embedded system featuring Intel Atom® Processors x7000RE Series and isolated COM and CAN bus interfaces

Intel Atom® x7433RE Processor (4x cores), TDP 9W
Up to 32GB LPDDR5 4800 MT/s memory (default 8GB)
Onboard eMMC up to 256GB and M.2 SATA SSD support
2x 2.5GbE Ethernet (Intel® I226IT) ports
Expansion: M.2 E‑Key for WiFi/Bluetooth and M.2 B‑Key (3042/3052) with dual SIM for 4G/5G or AI accelerator
Wide power input 12V~30V DC
Certification: CE/FCC/UKCA Class A, EN62368-1

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

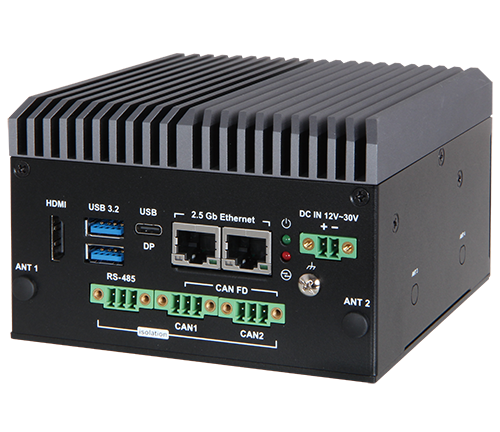

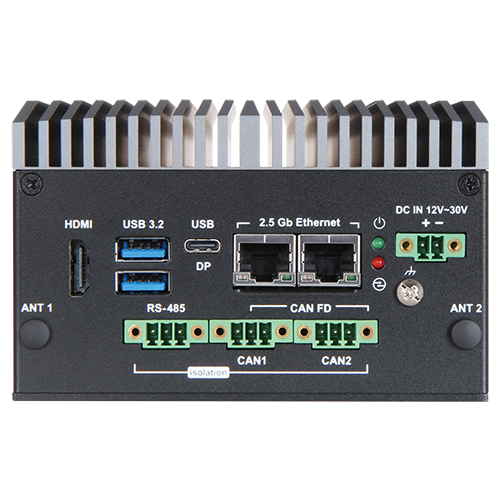

LYNX‑812D is a robust fanless embedded system built on the Intel® Atom® x7433RE processor, featuring onboard LPDDR5 up to 32GB and eMMC storage up to 256GB. It offers dual 2.5GbE, HDMI, USB‑C with DP Alt mode, and wide‑range 12–30V DC input. With isolated CAN FD bus, isolated RS‑485, and wide –40°C to 70°C operating temperatures, it’s ideal for industrial automation and edge deployments.

Specifications

Downloads

Related Products

Back to list

This website uses cookies to offer you an optimal website experience. These include cookies that are necessary for the operation of the site and for the control of our commercial corporate goals (Mandatory / Technical Cookies), as well as those that are only used for anonymous statistical purposes, for comfort settings or to display personalized content (Marketing Cookies). You can decide which category you want to allow. Please note that based on your settings, not all functions of the page may be available. For further information regarding cookies please see our Data Protection Declaration and regarding us on the Imprint.

Mandatory/Technical

These cookies are needed for a smooth operation of our website.

Name	Purpose	Lifetime	Type	Provider
CookieConsent	Saves your consent to using cookies.	1 year	HTML	Website
fe_typo_user	Assigns your browser to a session on the server.	session	HTTP	Website

Marketing

With the help of these cookies we strive to improve our offer for our users. By means of anonymized data of website users we can optimize the user flow. This enables us to improve ads and website content.

Name	Purpose	Lifetime	Type	Provider
_pk_id	Used to store a few details about the user such as the unique visitor ID.	13 months	HTML	Matomo
_pk_ref	Used to store the attribution information, the referrer initially used to visit the website.	6 months	HTML	Matomo
_pk_ses	Short lived cookie used to temporarily store data for the visit.	30 minutes	HTML	Matomo
_pk_cvar	Short lived cookie used to temporarily store data for the visit.	30 minutes	HTML	Matomo
_pk_hsr	Short lived cookie used to temporarily store data for the visit.	30 minutes	HTML	Matomo
_ga	Used to distinguish users.	2 years	HTML	Google
_gat	Used to throttle request rate.	1 day	HTML	Google
_gid	Used to distinguish users.	1 day	HTML	Google
_ga_--container-id--	Persists session state.	2 years	HTML	Google
_gac_--property-id--	Contains campaign related information for the user. If you have linked your Google Analytics and Google Ads accounts, Google Ads website conversion tags will read this cookie unless you opt-out.	3 months	HTML	Google
_gcl_au	Used by Google AdSense to experiment with advertisement efficiency.	3 months	HTML	Google
AMP_TOKEN	Contains a token that can be used to retrieve a Client ID from AMP Client ID service. Other possible values indicate opt-out, request in progress or an error retrieving a Client ID from AMP Client ID service.	1 year	HTML	Google
_dc_gtm_--property-id--	Used by DoubleClick (Google Tag Manager) to help identify the visitors by either age, gender or interests.	2 years	HTML	Google
MUID	Used as unique user identifier. The cookie allows user tracking across many Microsoft domains.	1 year	HTML	Bing
MUIDB	Saves anonymous user data from multiple website visits on multiple sites to test advertisement efficiency.	1 year	HTML	Bing
_fbp	Stores the unique visitor ID.	28 days	HTML	facebook
facebookPixel	If JavaScript is not enabled, this pixel initiates a connection to facebook.	none	Pixel	facebook
__RequestVerificationToken	The cookie is used to implement anti-forgery concerning Microsoft-forms on the website.	session	HTTP	Microsoft
AADNonce.forms	The cookie is used to implement Microsoft-forms on the website.	session	HTTP	Microsoft
DcLcid	The cookie is used to implement Microsoft-forms on the website.	3 months	HTTP	Microsoft
MSFPC	The cookie allows user tracking across many Microsoft domains and is used for Bing Analytics.	1 year	HTML	Microsoft
UID	The cookie is used for market and user research (Scorecard Research).	2 years	HTML	Slideshare
UIDR	The cookie is used for market and user research (Scorecard Research).	2 years	HTML	Slideshare
bcookie	Browser Identifier cookie to uniquely identify devices accessing LinkedIn to detect abuse on the platform.	2 years	HTML	Slideshare
lang	Used to memorize a user's language setting.	session	HTML	Slideshare

External content

With the help of these cookies we strive to improve our offer for our users. By means of providing video content or other useful content like maps to enhance the user experience.

Name	Purpose	Lifetime	Type	Provider
GoogleMaps	Is used to connect to Google Maps and to display those maps.	none	Connection	Google
YouTube	Is used to connect to YouTube and to display videos.	none	Connection	YouTube
MicrosoftStream	Is used to connect to Microsoft Stream and display videos.	none	Connection	MicrosoftStream
Signature_Api	Is used to connect to the Microsoft signature API.	session	HTTP	MicrosoftStream
Authorization_Api	Is used to connect to the Microsoft authorization API.	session	HTTP	MicrosoftStream
RedirectToThinEmbed	Is used to embed Microsoft Stream videos.	session	HTTP	MicrosoftStream
UserSession_Api	Is used to store the user session of the Microsoft API.	session	HTTP	MicrosoftStream
wfeSessionId	Is used to store the Web Front End Session ID of Microsoft Stream.	session	HTTP	MicrosoftStream
__cf_bm	Required to see Vimeo content.	1 year	HTTP	Vimeo
OptanonAlertBoxClosed	Saves the state of your Vimeo data protection consent.	1 year	HTML	Vimeo
OptanonConsent	Saves the state of your Vimeo data protection consent.	1 year	HTML	Vimeo
player	This cookie saves your preferences before playing an embedded Vimeo video. This will bring you back to your preferred settings the next time you watch a Vimeo video.	1 year	HTML	Vimeo
vuid	This cookie gathers information about your actions on websites embedding Vimeo videos.	2 years	HTML	Vimeo
_abexps	This cookie remembers your settings. Settings can include language, region or login user. In general this cookie saves data about how you use Vimeo.	1 year	HTML	Vimeo
continuous_play_v3	This cookie is a first-party cookie from Vimeo. The cookie collects information on how you use the Vimeo service. For example, the cookie saves when you pause and play a video again.	2 years	HTML	Vimeo

Analytics

Name	Purpose	Lifetime	Type	Provider
_ga	Used to distinguish users.	2 years	HTML	Google
_gat	Used to throttle request rate.	1 day	HTML	Google
_gid	Used to distinguish users.	1 day	HTML	Google
_ga_--container-id--	Persists session state.	2 years	HTML	Google
_gac_--property-id--	Contains campaign related information for the user. If you have linked your Google Analytics and Google Ads accounts, Google Ads website conversion tags will read this cookie unless you opt-out.	3 months	HTML	Google
_gcl_au	Used by Google AdSense to experiment with advertisement efficiency.	3 months	HTML	Google
AMP_TOKEN	Contains a token that can be used to retrieve a Client ID from AMP Client ID service. Other possible values indicate opt-out, request in progress or an error retrieving a Client ID from AMP Client ID service.	1 year	HTML	Google
_dc_gtm_--property-id--	Used by DoubleClick (Google Tag Manager) to help identify the visitors by either age, gender or interests.	2 years	HTML	Google

CPU:	Intel Atom® x7433RE Processor (4 / 3.4 GHz, 6 MB, 9 W)
Processor:	Intel® Atom® x7433RE, 4 cores, 9 W
Memory:	2 x LPDDR5 4GB on board, support up to 32GB
Storage:	1 x eMMC 128G on board, support up to 256GB
Ethernet:	2 x 2.5 GbE LAN w/ Intel® WGI226IT
USB:	2 x USB 3.2 Gen2 x1 (10Gbps) Type A 1 x USB 3.2 Gen2 x1 (10Gbps) Type C with DP Alt mode
Security:	TPM2.0
Power Supply:	Terminal Block 12-30V
Relative Humidity:	5% to 95%, non-condensing
Antenna:	6 x SMA Antenna holes for Wi-Fi/ 5G
Vibration:	5G 10~500Hz with SSD (IEC/EN 60068-2-6)
Watchdog Timer:	Programmable, time out period from 1 s to 255 s
IP Protection:	IP40
Dimension:	120 x 120 x 76 mm (4.72" x 4.72" x 2.99" )
Shock:	50G 11m sec with SSD (IEC 60068-2-27)
Mounting:	Wall Mount, DIN Rail
Weight:	1.5 KG
Storage Temperature:	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Operating Temperature:	-40 ~ 70 °C (-40.0 ~ 158.0 °F)
Certificates:	CE/FCC/UKCA Class A, LVD (EN 62368-1)
OS Support:	Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux™
