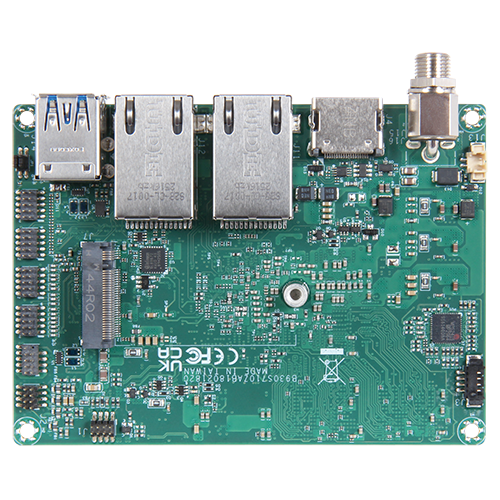

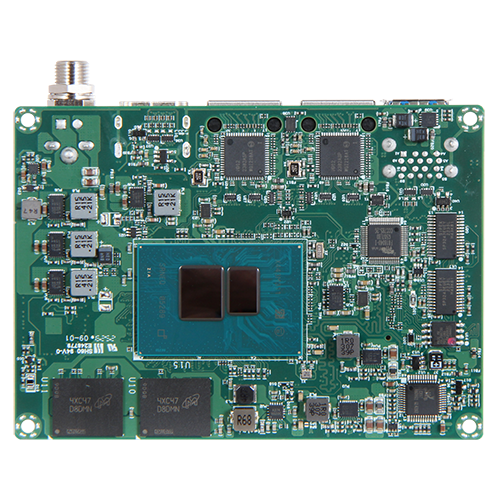

PICO-8021

Pico-ITX Embedded Board Featuring Intel® Processor N150 and Intel Atom® x7433RE/x7211RE Processors

Intel Twin Lake N150& Amston Lake x7433RE/x7211RE
1x HDMI® 1.4 , 2x GbE, 2x USB 3.2
LPDDR5 up to 16GB
1x M.2 2242 M-Key
2x COM, GPIO, TPM2.0, 12V DC Jack

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Intel® Twin Lake N150 & Amston Lake x7433RE/x7211RE; LPDDR5 up to 16GB; 1x M.2 2242 M-Key; 2x GbE, 2x USB 3.2; 1x HDMI® 1.4; GPIO, TPM 2.0; 12V DC

Specifications

CPU:	Intel® Processor N150 (4 / 3.6 GHz, 6 MB Intel® Smart Cache Intel Atom® x7433RE Processor (4 / 3.4 GHz, 6 MB, 9 W) Intel Atom® x7211RE Processor (2
Standard:	Pico-ITX
Memory:	LPDDR5 up to 16GB
Graphic Controller:	Intel® Graphics
Storage:	1x M.2 M Key 2242 (PCIe/SATA)
Watchdog Timer:	Programmable, time out period from 1 s to 255 s
Hardware Monitoring:	System Monitor (Voltage, Fan speed, Temperature)
Ethernet:	2 x Intel I210AT with GbE LAN 10/100/1000 Mbps
Expansion:	1x M.2 E Key 2230
Other:	1 x I2C 1 x SMBus
Serial Interface:	2 x Pin Header support RS-232/422/485
USB:	2 x USB 3.2 Gen2 Type A
Audio:	1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897
Display Feature:	1 x HDMI® 1.4 3840 x 2160@30Hz
Firmware:	AMI UEFI BIOS
OS Support:	Windows 10 IOT Enterprise, Windows 10 IOT Core, Linux
Power Supply:	DC Jack 12~24V
Operating Temperature:	0 ~ 60 °C (32.0 ~ 140.0 °F) ( N150 ), -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7433RE ), -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7211RE )
Storage Temperature:	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Security:	TPM 2.0 ( On Board IC )
Dimension:	100 x 72 mm (3.9″ x 2.8″)
Relative Humidity:	5% to 95%, non-condensing
Certificates:	CE/FCC UKCA
