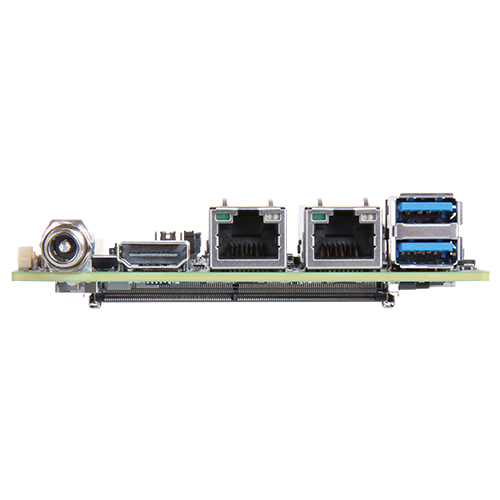

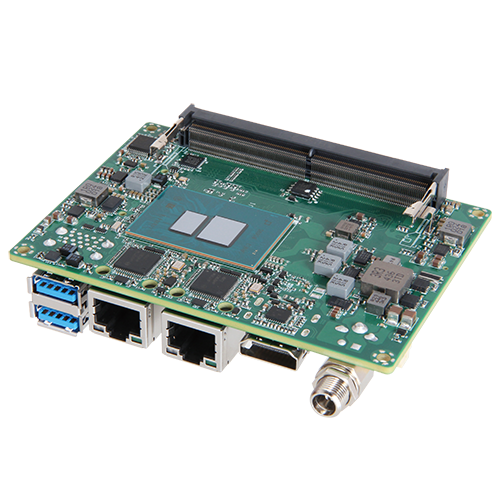

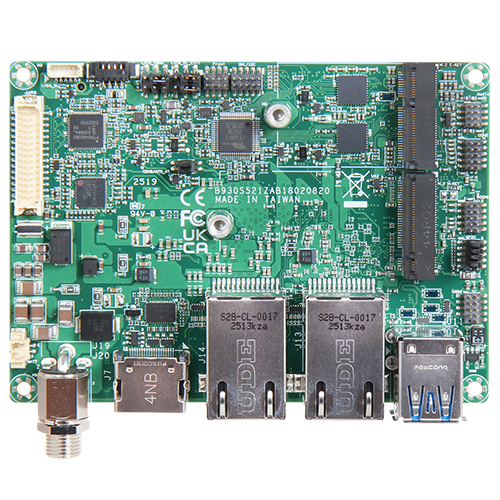

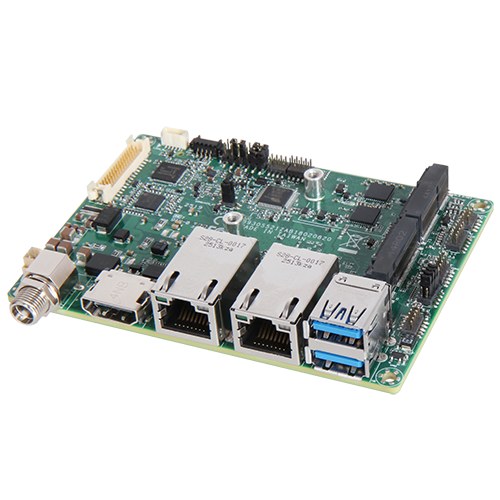

PICO-8020

Pico-ITX Embedded Board Featuring Intel® Processor N150 and Intel Atom® x7433RE/x7211RE Processors

Up to 16GB DDR5 4800 MT/s SO-DIMM
Support dual display via HDMI and LVDS
High speed I/O with dual GbE and dual USB 3.2 Gen 2
Two COM ports support RS-232/422/485
Onboard TPM 2.0
Wide industrial temperature range -40°C to 85°C (select SKUs)
Dimension: 100(L) x 72(W) mm; 3.9"(L) x 2.8"(W); Pico-ITX form factor

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Portwell’s PICO-8020 is a space-saving Pico-ITX form factor embedded board built on the Intel® Processor N150 and Intel Atom® x7433RE/x7211RE processors. Designed for efficient edge computing, it supports up to 16GB DDR5 4800 MT/s memory and delivers enhanced graphics via Intel® Graphics with up to 24 EUs. Dual display outputs (HDMI 2.0 and LVDS), dual GbE LAN, and dual USB 3.2 Gen 2 ports ensure versatile connectivity. Expansion is flexible with M.2 E Key (2230) and M Key (2242 PCIe/SATA) slots. With onboard TPM 2.0, wide temperature support (-40°C to 85°C, select SKUs), and a compact 100mm x 72mm footprint, the Portwell PICO-8020 is ideal for automation, medical, and industrial IoT deployments. Whether you're building smart devices or intelligent gateways, it offers dependable performance in demanding environments.

Specifications

CPU:	Intel® Processor N150 (4 / 3.6 GHz, 6 MB Intel® Smart Cache Intel Atom® x7433RE Processor (4 / 3.4 GHz, 6 MB, 9 W) Intel Atom® x7211RE Processor (2
Standard:	Pico-ITX
Memory:	Support up to 16GB DDR5 4800 MT/s on 1 SODIMM
Graphic Controller:	Intel® Graphics up to 24 EUs
Storage:	1x M.2 M Key 2242 (PCIe/SATA)
Watchdog Timer:	Programmable, time out period from 1 s to 255 s
Hardware Monitoring:	System Monitor (Voltage, Fan speed, Temperature)
Ethernet:	2 x Intel I210AT with GbE LAN 10/100/1000 Mbps
Expansion:	1x M.2 E Key 2230
Other:	1 x I2C 1 x SMBus
Serial Interface:	2 x Pin Header support RS-232/422/485
USB:	2 x USB 3.2 Gen2 Type A
Audio:	- HDA controller integrated in Intel® SoC - Realtek ALC897 HDA codec - Support line-in, line-out, mic-in on board pin header
Display Feature:	1 x LVDS 1920 x 1200@60Hz (On Board Header)
Firmware:	AMI UEFI BIOS
OS Support:	Windows 10 IOT Enterprise, Windows 10 IOT Core, Linux
Power Supply:	DC Jack 12~24V
Operating Temperature:	0 ~ 60 °C (32.0 ~ 140.0 °F) ( N150 ), -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7433RE ), -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7211RE )
Storage Temperature:	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Security:	TPM 2.0 ( On Board IC )
Dimension:	100 x 72 mm (3.9″ x 2.8″)
Relative Humidity:	5% to 95%, non-condensing
Certificates:	CE/FCC UKCA
OS Support:	Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04
