WADE-8214-Q870

Intel® Core Ultra 9/7/5, 65W; Dual SO-DIMM DDR5 up to 96GB; PCIe Gen5x16, M.2 Key E/CNVI, M.2 Key M NVMe; Dual Ethernet, 5x COM, 11x USB 3.2, 4x SATA III

Intel® Core™ Ultra 9/7/5 processors (Series 2), LGA1851 socket and Intel® 800 Series chipset
Dual DDR5 SO-DIMM up to 96GB
Dual Ethernet (GbE + 2.5GbE), 5 COM ports, 11 USB 3.2 ports, and 4 SATA III ports
Supports PCIe Gen5 x16, M.2 2230 Key E (PCIe + CNVi for wireless), and M.2 2280 Key M (PCIe 5.0 for NVMe storage
Up to four displays: 2x DP, 1x HDMI, 1x eDP/LVDS

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

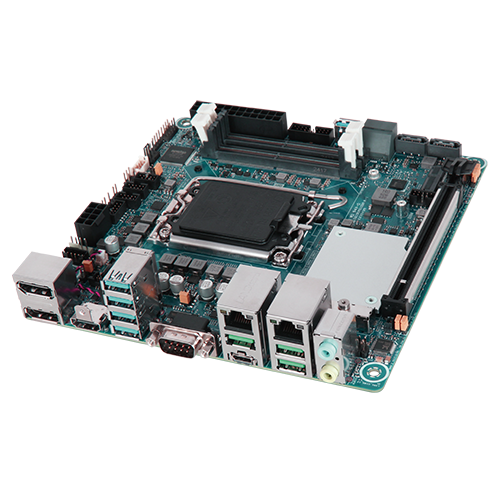

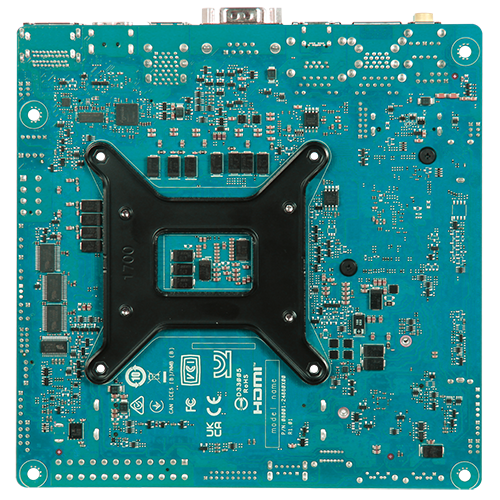

The WADE-8214-Q870 delivers high-performance computing in a compact Mini-ITX form factor (170mm x 170mm / 6.9” x 6.9”). Powered by Intel® Core™ Ultra processors (Series 2) and the Intel® Q870 chipset, it supports up to 96GB DDR5 memory for fast and efficient operation.

Designed for flexibility, it offers PCIe Gen5 x16 expansion, dual M.2 slots (Key E for wireless and Key M for NVMe storage), and dual Ethernet—including 2.5GbE for high-speed connectivity. With 11 USB 3.2 ports, USB4 Type-C, 5 COM ports, and 4 SATA III ports, the WADE-8214-Q870 provides extensive I/O options for industrial and edge AI workloads.

Advanced display capabilities include 2x DisplayPort 1.4 and HDMI 2.1, supporting resolutions up to 4096 x 2160 @ 60Hz, along with eDP/LVDS via onboard header. Built for reliability, it operates in temperatures from 0°C to 60°C, making it ideal for factory automation, IoT gateways, and embedded systems.

Specifications

Order Info

Related Products

name	code	description	availability
(R).WADE-8213-Q670E	AB1-3P58	ATX ESB.Q670E w/o ECC LGA1700.w/DDR5 /eDP/LVDS/Thripal DP/HDMI/Dual GbE/COM/Audio/USB	MP

Back to list

Processor:	Intel® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP
Chipset:	Intel® Q870
Firmware:	AMI uEFI BIOS
Memory:	Supports up to 96GB DDR5 6400 MT/s on 2 non-ECC SODIMM
Storage:	4x SATA ports RAID 0, 1, 5, 10
Watchdog Timer:	Programmable, time out period from 1 sec to 255 secs
Audio:	Rear- Audio - 1x Audio Jack Line-in w/ Realtek ALC897 - 1x Audio Jack Line-out w/ Realtek ALC897
Ethernet:	- 1x Intel I210AT with GbE LAN 10/100/1000 Mbps - 1x Intel I226LM with 2.5GbE LAN 10/100/1000/2500 Mbps
Serial Interface:	- 1 x COM ports support RS-232/422/485
USB:	Rear USB - 3x USB 3.2 Gen2 Type A on Bracket - 4x USB 3.2 Gen1 Type A on Bracket - 1x USB4 Type C on Bracket
Graphic Controller:	Intel® Graphics OpenGL 4.5
Relative Humidity:	5% to 95%, non-condensing
PCI Express:	1x PCIe Gen5 x16 ( 1 x16 mode, 2 x8, 1x8; 2x4 mode )
Dimension:	170 x 170 mm (6.69" x 6.69")
USB:	- 1x USB 3.2 Gen1 Vertical Type A - 2x USB 3.2 Gen1 Pin Header
Power Supply:	AT mode/ ATX mode
Security:	SPI header
Display Feature:	- 2x DP 1.4 4096 x 2160@60Hz - 1x HDMI® 2.1 4096 x 2160@60Hz
Operating Temperature:	0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature:	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
OS Support:	Windows 11 IoT Enterprise 2024 LTSC, Windows 10 IoT Enterprise 2022 LTSC
Certificates:	CE/FCC UKCA
