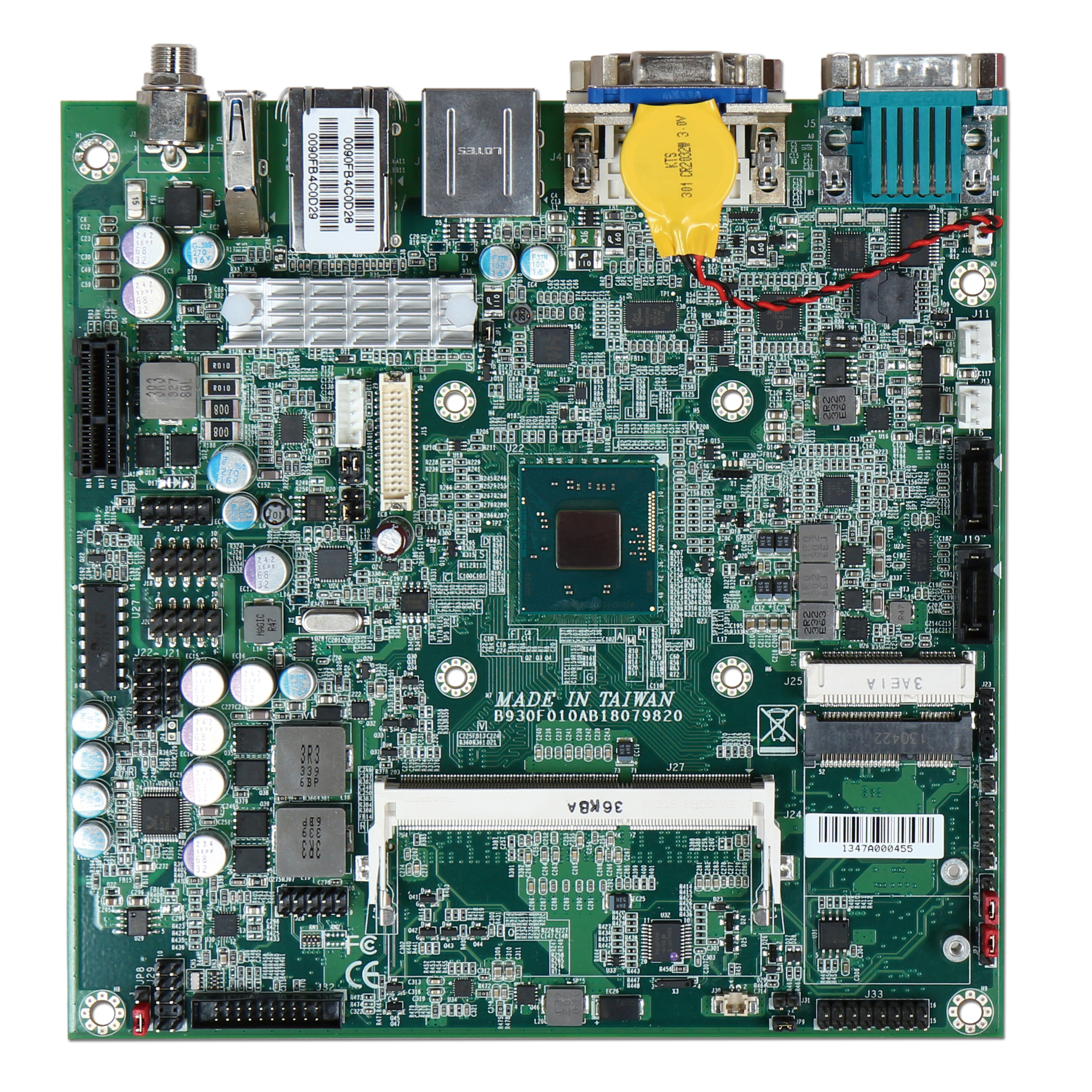

WADE-8079

Intel® Atom™ E3800 SoC based Mini-ITX Board with VGA, DP, DVI, LVDS, Gigabit Ethernet, Audio, USB 3.0, SATA and Dual Mini-PCIe slot with mSATA interface

Intel Bay Trail Celeron J1900, and Atom 153; E3800 family embedded processor support quad CPU
Up to 8GB Two DDR3L 1066/1333MT/s SDRAM Up to 8GB
Support VGA/DVI/DP & LVDS
2 x SATA II ports
Total 5 USB ports (1x USB 3.0 Ports & 4x USB 2.0 Ports)

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

WADE-8079 is based on Intel® Atom™ processor E3800 product family with memory and PCI Express controller integrated to support two-channel DDR3L memory and PCI Express 2.0 lanes. Portwell has taken advantage of such technology to furnish a series of products that meets multiple industrial requirements for cost effectiveness, reliable performance and a high level of data integrity and uptime.

Specifications

CPU:	Intel Atom® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W) Intel Atom® Processor E3825 (2 x 1.33 GHz, 1 MB L2, 6 W) Intel Atom® Processor E3826 (2 x 1.46 GHz, 1 MB L2, 7 W) Intel Atom® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W) Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W)
Technology:	x86
Format:	Mini-ITX
Chipset:	SoC (System-On-Chip)
DRAM:	Up to 8 GB DDR3L SO-DIMM
Graphic Controller:	Intel® HD Graphics 4600 (CPU)
Display Interface:	DVI (1920x1200), DP (2560x1600), VGA (1920x1200), LVDS (1600x1200)
Storage:	2x SATA II (3.0Gb/s), -
Network:	2x GbE Intel® I210IT
Expansion:	1x Half-Size mini PCIe(USB, PCIe)
Bus Interface:	one PCIe x1 slot, TPM Module
Serial Interface:	3x RS232, 1x RS232/422/485
USB:	1x USB 3.0, 4x USB 2.0
Audio:	Intel® HD Audio, Realtek ALC892
Security:	TPM Module
Miscellaneous:	2x PS/2 via pin header, GPIO 8bit,Watchdog Timer,HW monitoring: temperature & voltage
Firmware:	Phoenix® SPI
Power Requirement:	ACPI 3.0 / APM 1.2
Power from W:	12V - 24V DC-In
Operating Temperature:	0°C - 60°C
Extended Temperature:	-40°C to -85°C
Dimensions:	170x170 mm

Order Info

Downloads

name	code	description	availability
WADE-8079-J1900	AB1-3C16	Mini-ITX - Bay Trial-D (QC, 2Ghz J1900), 2x GbE, Audio	MP
WADE-8079-E3845	AB1-3B39	Mini-ITX ESB, Intel Bay Trail ,E3845 (QC 1.9GHz), DDR3L SO-DIMM, VGA, DVI, DP, Dual GbE Lan, COM, USB	MP
WADE-8079-E3826	AB1-3B77	Mini-ITX ESB, Intel Bay Trail ,E3826 (DC 1.46GHz), DDR3L SO-DIMM, VGA, DVI, DP, Dual GbE Lan, COM, USB	MP
WADE-8079-E3815	AB1-3B76	Mini-ITX ESB, Intel Bay Trail ,E3815 (SC 1.46GHz), DDR3L SO-DIMM, VGA, DVI, DP, Dual GbE Lan, COM, USB	MP
