- Intel® Core™ Processor N-series/Intel® Processor N-Series (formerly Twin Lake) and Intel Atom® x7000RE Series Processors (formerly Amston Lake)
- DDR5 4800 MT/s SO-DIMM up to 16GB
- Multiple displays via HDMI, DP via Type C port and LVDS
- Three LAN ports (2x 2.5GbE + 1x GbE)
- Three M.2 slots (E Key, B Key and M Key), one SATA III port
- Wide voltage of DC power input 9V~36V
- Extended temperature range from -40°C to 85°C (select SKU)
Contact us, for customized product package!
Get A Quote

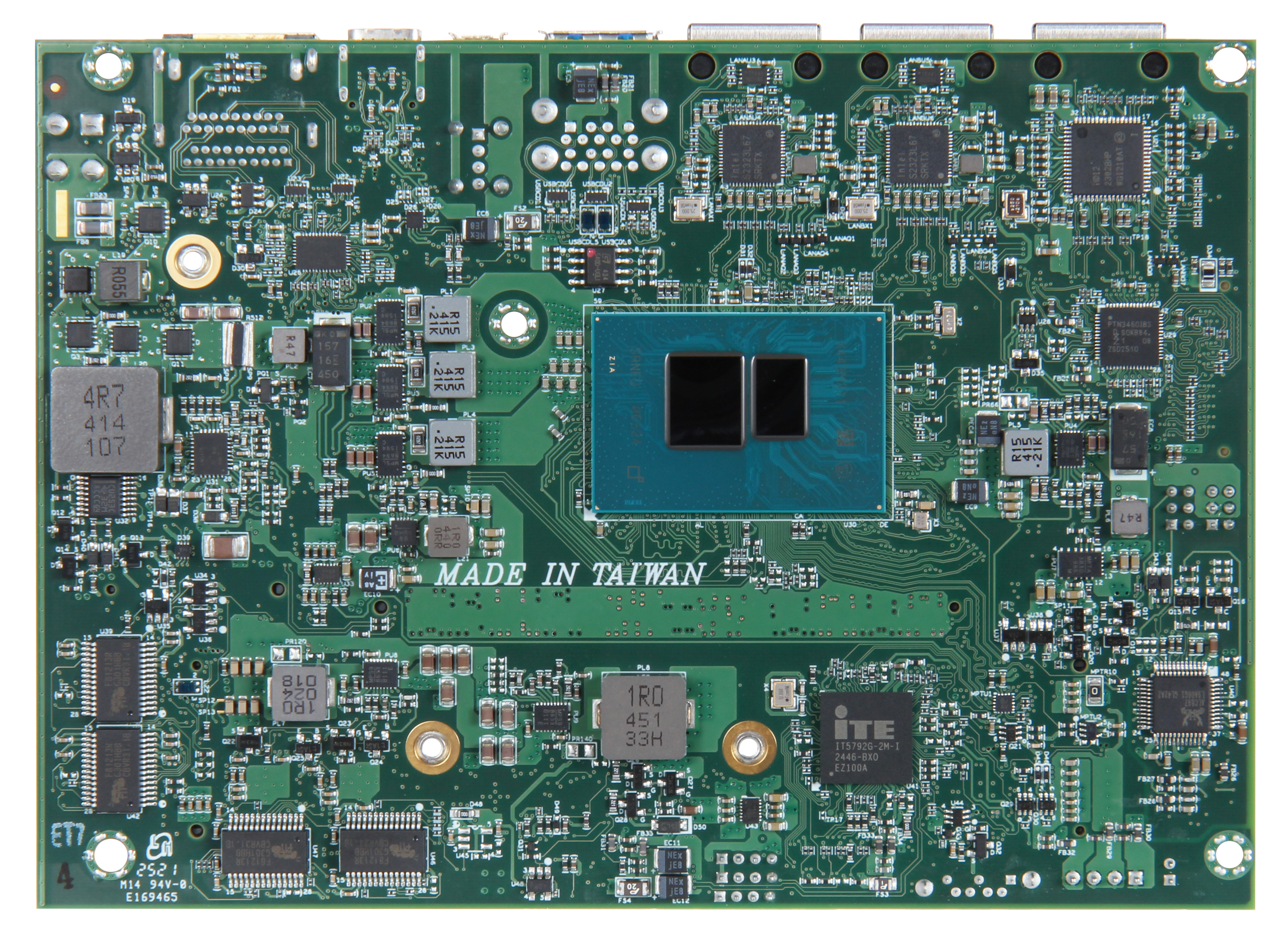

The PEB-2775 is a robust and efficient 3.5” embedded board tailored for diverse industrial and edge computing environments. Powered by Intel® Core™ 3 Processor N355 / Intel® Processor N150 (formerly Twin Lake) or Intel Atom® x7433RE Processor (formerly Amston Lake), it supports up to 16GB DDR5 memory for responsive performance in low-power deployments. Its rich I/O includes dual HDMI, USB Type-C with DisplayPort Alt mode (DP Alt mode), LVDS, and triple LAN ports (2x 2.5GbE + 1x GbE), enabling flexible connectivity and remote management. Expansion options include multiple COM ports, three M.2 slots (E, M, B Key), and a Nano SIM slot for wireless modules. With TPM 2.0 support, wide voltage input (9–36V), and extended temperature tolerance from -40°C to 85°C (select SKU), the PEB-2775 is ideal for rugged applications in automation, transportation, and smart infrastructure. Its compact 146 x 102 mm form factor makes it a reliable solution for space-constrained embedded systems.
