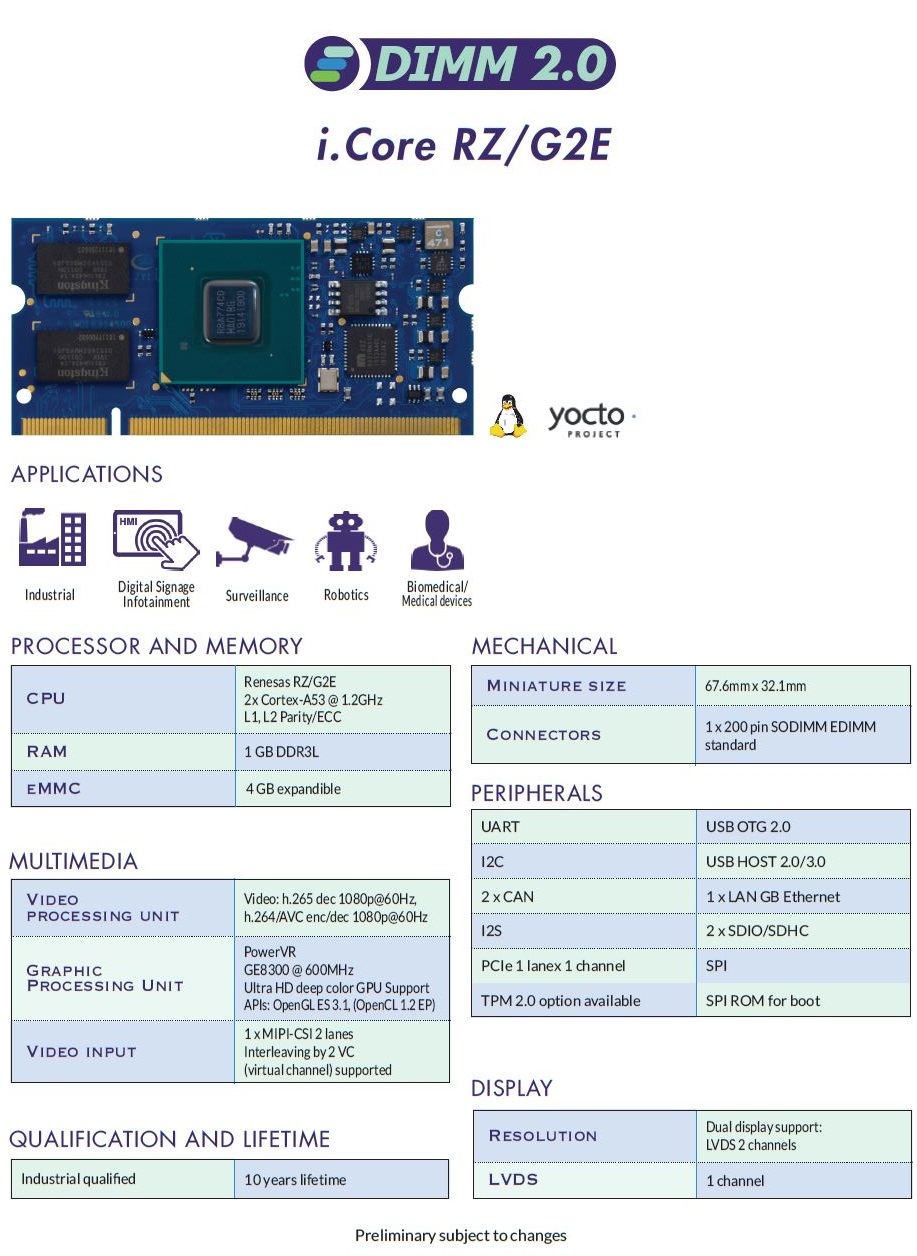

i.Core RZ/G2E

EDIMM SOM based on Renesas® RZ/G2E

Renesas RZ/G2E 2x Cortex-A53 @ 1.2GHz L1, L2 Parity/ECC
Memory : 1 GB DDR3L
Graphics : PowerVR GE8300 @ 600MHz Ultra HD deep color GPU Support APIs: OpenGL ES 3.1, (OpenCL 1.2 EP)
Video Interfaces : Video: h.265 dec 1080p@60Hz, h.264/AVC enc/dec 1080p@60Hz 1 x MIPI-CSI 2 lanes, Interleaving by 2 VC (virtual channel) supported
Video Resolution : Up to Full HD @60fps
Mass Storage : eMMC 4 GB expandible
Operating Temperature : Industrial and consumer qualified

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Engicam introduces the new i.Core RZ/G2E system on module family for

connectivity, multimedia and HMI applications. The new module will be based on the

new RENESAS RZ/G2E processor. The new module is designed on the SODIMM

versatile pinout and will be compatible with the actual Engicam SOM.

Specifications

Order Info

Related Products

name	code	description	availability
i.Core RZ2GE Dual_1GB DDR3L	002680020DI440	i.Core RZ2GE Dual (EDIMM 2.0 RZG2E, 2xCortexA53@1200MHz,1GB DDR3L, 4GB eMMC -25°C, GB ethernet, Industrial)	MP

Back to list

Technology:	ARM
Operating Temperature:	Industrial and consumer qualified
Power Requirement:	5V DC ±5%
OS Support:	Linux, Yocto 1.7
Graphic Controller:	PowerVR GE8300 @ 600MHz Ultra HD deep color GPU Support APIs: OpenGL ES 3.1, (OpenCL 1.2 EP)
USB:	USB OTG 2.0, USB HOST 2.0/3.0
Network:	1 x LAN GB Ethernet
Storage:	eMMC 4GB expandible
DRAM:	1 GB DDR3L
Chipset:	SoC (System-On-Chip)
Format:	1 x 200 pin SODIMM EDIMM standard
Dimensions:	67.6mm x 32.1mm
