MicroGEA MX6ULL
i.MX 6ULL based Micro SOM
  • NXP™ i.MX 6ULL
  • Up to 512 MB DDR3-800
  • Video Interfaces : 1x Parallel LCD 1x EPD
  • Nand Flash
  • 1 x 10/100 Ethernet interface; 1 x RMII interface
  • 2 x USB
We also provide additional features to our finished products if requested.
Contact us, for customized product package!

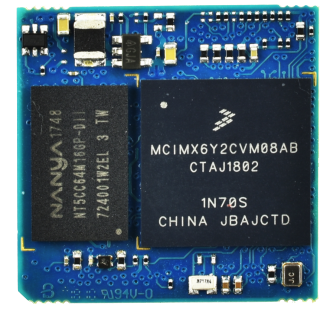

The MicroGEA Module is the smallest module on the market based on i.MX 6ULL; everything is included in a very amazing size of 25 x 25 mm , with a height of 3.5 mm. The new item of the Micro SOM family comes with the low cost and power efficient processor NXP i.MX 6ULL and provides e-paper driving capability ( EPD up to 2048x1536), LCD with resolution up to WXGA (1366x768) and many other peripherals.
