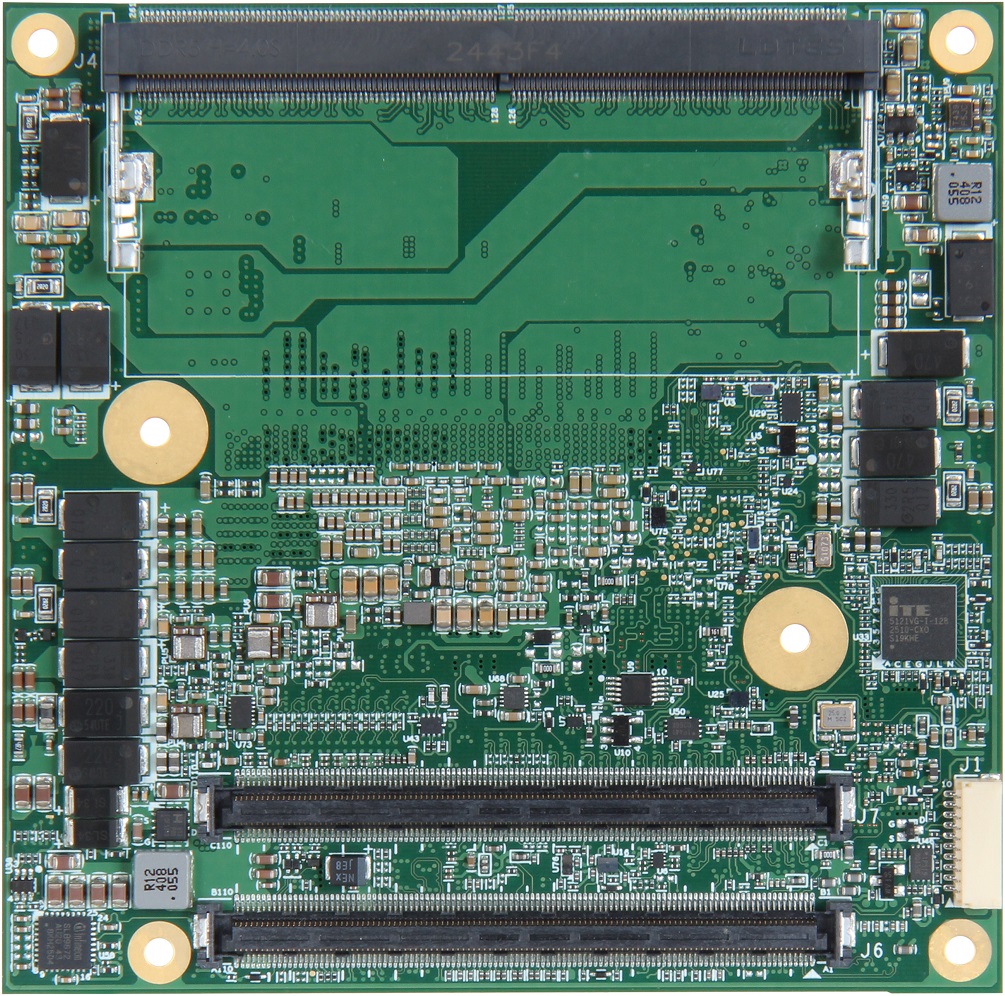

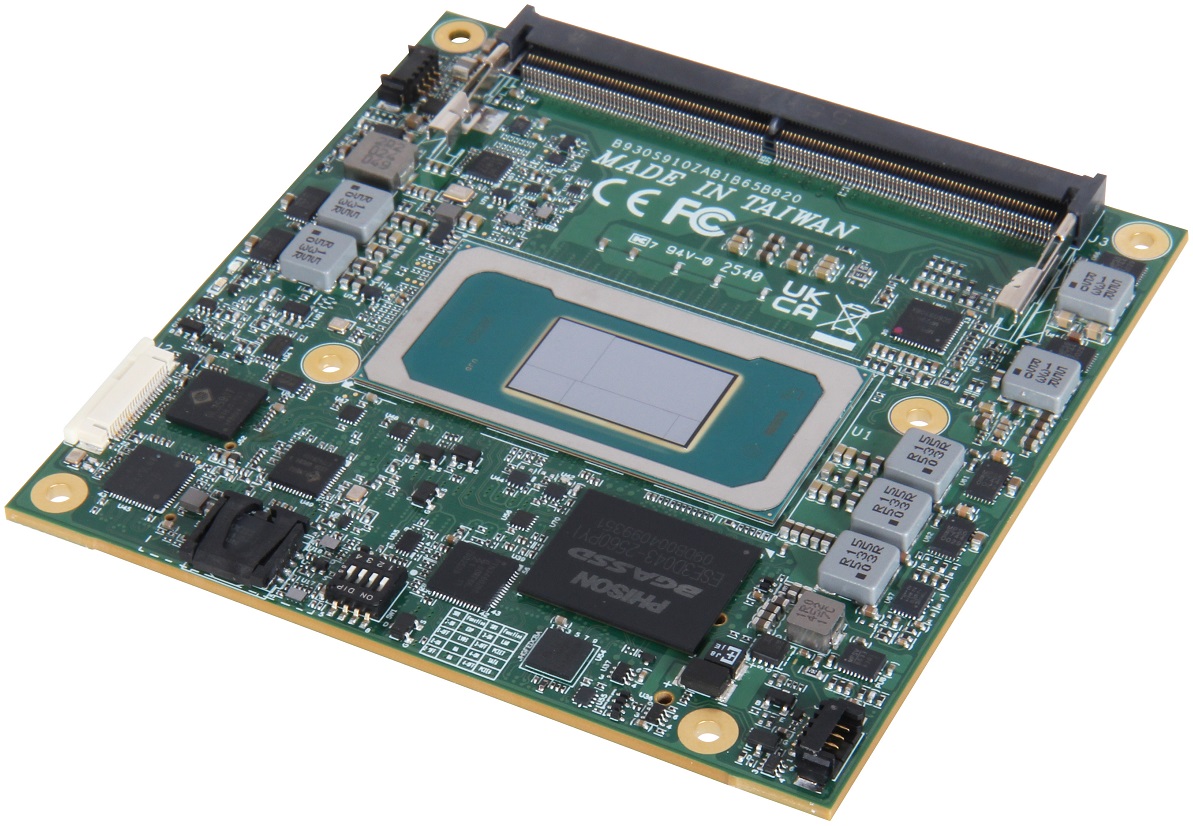

PCOM-B65B

COM Express Type VI Compact Size Module based Intel® Core™ Ultra Processors (Series 3)

Intel® Core™ Ultra Processors (Series 3) (Panther Lake) with up to 16 cores
Built-in Intel Arc GPU with up to 12 Xe cores and up to120 TOPS
Featuring NPU 5 with up to 50 TOPS
Dual-channel DDR5 SO-DIMM up to 128GB, 7200 MT/s with IBECC
Up to 12 PCIe Gen4 lanes
On-board NVMe SSD (optional up to 1TB)
CSI connector for camera integration

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

The Portwell PCOM-B65B Type 6 COM Express Compact module is purpose-built to harness the full capabilities of the Intel® Core™ Ultra processors (Series 3) in compact, scalable embedded designs. With balanced performance, a flexible power range (15W–45W), and rich expansion options, it’s ideal for long-life industrial deployments. PCOM-B65B is engineered for scalability and integration flexibility. The module offers up to 12 PCIe Gen4 lanes, high-speed DDR5 memory, optional onboard NVMe, and powerful AI acceleration from Intel Core Ultra processors—enabling customers to build compact yet highly capable edge solutions for machine vision, diagnostics, aerospace, and industrial control.

Specifications

CPU:	Intel® Core™ Ultra X9 Processor 388H (16 / 5.1 GHz, 18 MB Intel® Smart Cache Intel® Core™ Ultra X7 Processor 368H (16 / 5 GHz, 18 MB Intel® Smart Cache Intel® Core™ Ultra X7 Processor 358H (16 / 4.8 GHZ, 18 MB Intel® Smart Cache Intel® Core™ Ultra 5 Processor 338H (12 / 4.7 GHz, 18 MB Intel® Smart Cache Intel® Core™ Ultra 7 Processor 365 (8 / 4.8 GHz, 12 MB Intel® Smart Cache Intel® Core™ Ultra 7 Processor 355 (8 / 4.7 GHz, 12 MB Intel® Smart Cache Intel® Core™ Ultra 5 Processor 325 (8 x 4.5 GHz, 12 MB Intel® Smart Cache
Form Factor:	COM Express Type 6 Compact Size (95 mm x 95 mm)
Processor:	Intel® Core Ultra X9 Series Intel® Core Ultra X7 Series Intel® Core Ultra 5 Series Intel® Core Ultra 7 Series
Display Feature:	eDP / LVDS eDP up to HBR3 3840 x 2160@120Hz eDP / LVDS LVDS (24bit, dual channel) 1920 x 1200@60Hz DDI 1/2/3 DP up to HBR3 3840 x 2160@120Hz DDI 1/2/3 HDMI® 2.1 DDI 1/2/3 USB4 40Gb
Storage:	PCIe (NVMe) up to 256GB
SATA:	2x SATA III (Shared w/ PCIe)
Firmware:	AMI uEFI BIOS
Memory:	2x SO-DIMM DDR5 up to 128GB 7200 MT/s
USB:	4x USB 3.2 Gen1 x2 8x USB 2.0
Ethernet:	1x 2.5 Gbe LAN (Shared w/ PCIe)
PCI Express:	1x PCIe Gen4 x4 1x PCIe Gen4 x1 (Shared w/ SATA) 1x PCIe Gen4 x1 (Shared w/ LAN) 6x PCIe Gen4 x1
Security:	TPM 2.0
Dimension:	95 mm x 95 mm (3.74” x 3.74”)
Storage Temperature:	-40 ~ 85 °C (-40 ~ 185 °F)
Operating Temperature:	-40 ~ 85 °C (-40 ~ 185 °F)
OS Support:	Linux, Windows 11

Order Info

name	code	description	availability
PCOM-B65A		COM Express Type VI Basic Size Module. Intel® Core™ Ultra U/H-series Processors. DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen 2, 2.5 GbE TSN Ethernet, Discrete TPM 2.0, eDP, SATAIII *Please refer to product datasheet for additional ordering information.
