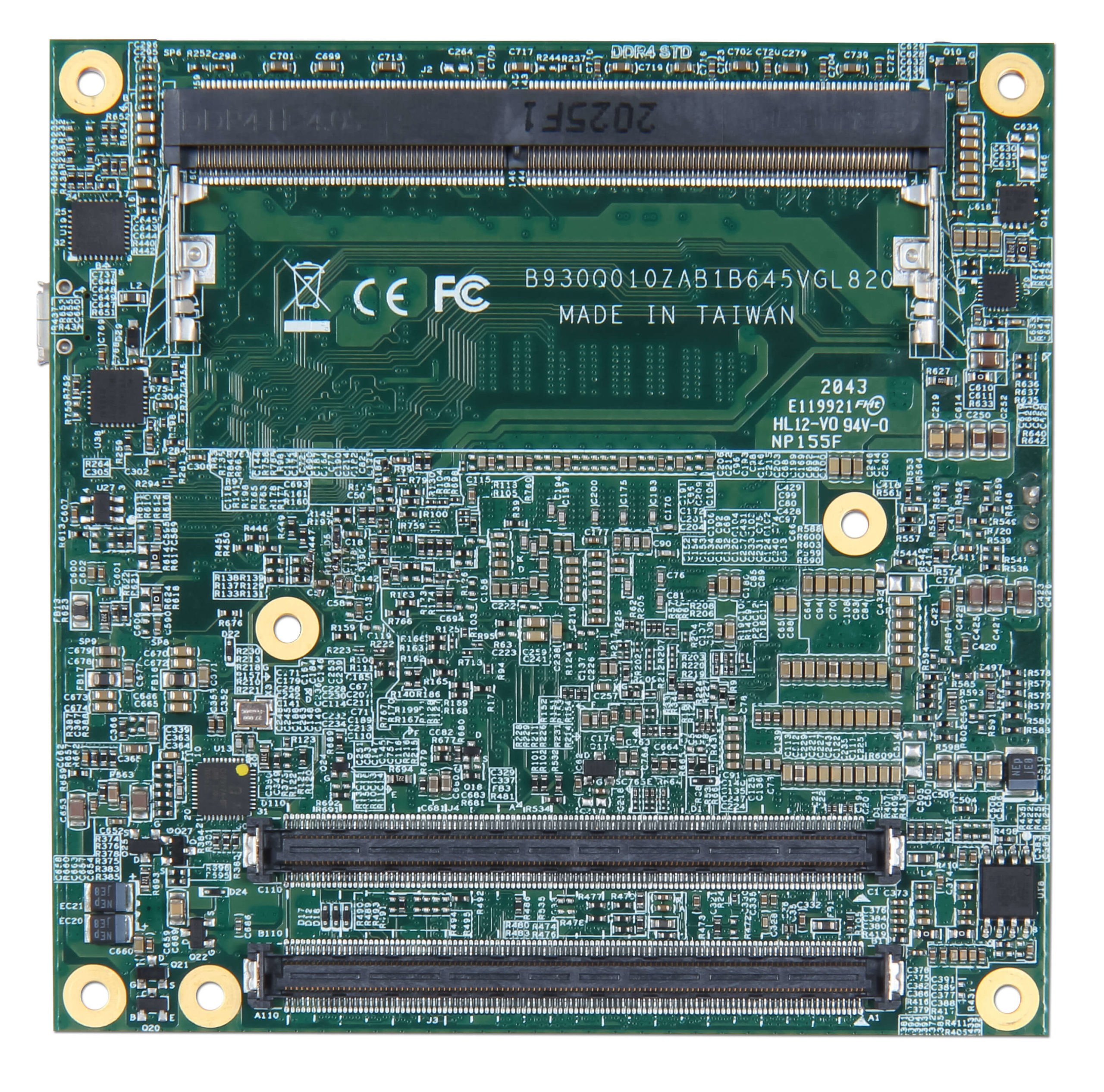

PCOM-B645VGL
PCOM-B645VGL, a Type 6 compact COM Express® (95 x 95 mm) module which based on Intel® Elkhart Lake Atom® x6000 and Pentium® N and J Series Processors.
  • Intel® Atom® Processor x6000 Series (Elkhart Lake
  • DDR4 SDRAM up to 32GB with IBECC
  • Optional for -40°C to 85°C Industrial temperture
  • Multiple Displays VGA, LVDS, eDP/DP, HDMI
  • Support Intel® TCC/TSN with 2.5GbE

In this architecture, it could provide VGA, LVDS, and high quantity HDMI, eDP, DP with 4K resolution, and three independent displays. And it also provides turbo mode up to 3.0GHz, with extending 5 x PCIe 3.0 x 1, 2 x USB 3.1, 8 x USB 2.0, and 2 x SATA III devices. With ultra low power consumption(4.5 to 12W), wide-temp support, it could provide very energy saving and high effective performance. Portwell want to promotes PCOM-B645VGL as vertical solution to aim in the different versatile applications, such as automation, healthcare, retail, transportation and so on.
