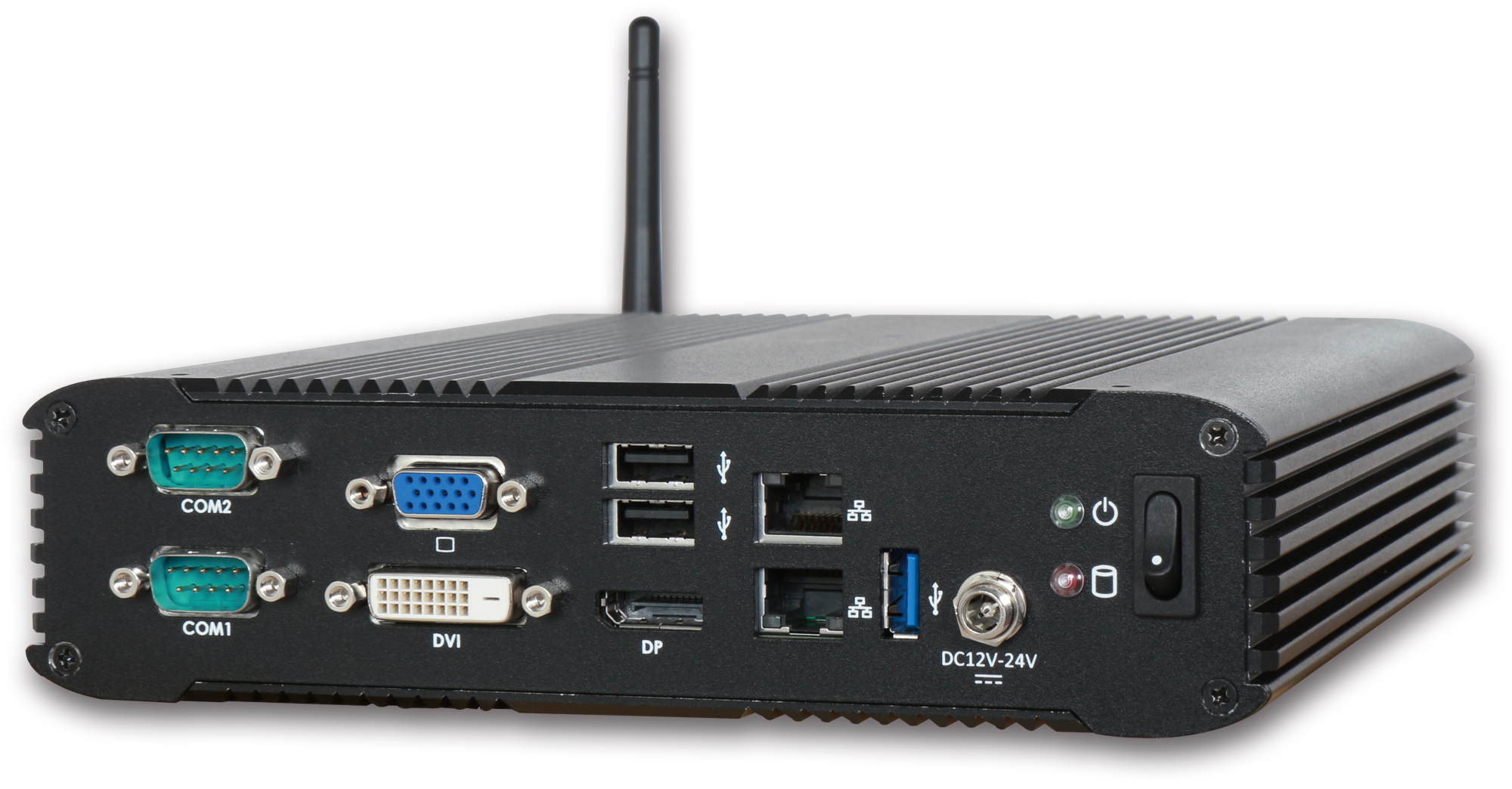

WEBS-3392

Embedded rugged fan-less system with Intel Atom E3845/J1900 based Mini-ITX board

Intel® Atom embedded processor with low power and quad core technology Intel® Q87 Chipset
Up to 16GB DDR3L Dual channel SO-DIMM socket
1x 2.5” SATA HDD/SSD, 1x mSATA
1x RS-232/422/485, 3x RS-232, 1x USB3.0, 3x USB2.0, 2x Gigabit Ethernet Port
Triple Display by DVI-D/VGA/DP
1x Full-size Mini-PCIe socket (support mSATA)
1x Half-size Mini-PCIe socket (support PCIe & USB signal)

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

Embedded rugged fan-less system with Intel Atom E3845/J1900 based Mini-ITX board

Specifications

CPU:	Intel Atom® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W) Intel Atom® Processor E3825 (2 x 1.33 GHz, 1 MB L2, 6 W) Intel Atom® Processor E3826 (2 x 1.46 GHz, 1 MB L2, 7 W) Intel Atom® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W) Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W)
Technology:	x86
Format:	Mini-ITX
Chipset:	SoC (System-On-Chip)
DRAM:	Up to 16GB DDR3L
Graphic Controller:	Intel® HD Graphics 4600 Family
Display Interface:	VGA, DVI-D, DP
Storage:	2.5" SATA HDD/SSD mSATA
Network:	Intel l210IT x 2
Expansion:	Full/Half-Size mini PCIe
Serial Interface:	3x RS232, 1x RS232/422/485
USB:	4x USB 3.0, 2x USB 2.0
Audio:	N/A
Miscellaneous:	95%@40°C, non-condensing
Firmware:	Phoenix BIOS (SPI ROM)
Operating Temperature:	-10°C to 45°C
Storage Temperature:	-40°C to 80°C
Dimensions:	200x200x51 mm
Weight:	2,2kg
Shock:	50G, 11msec, IEC 60068-2-27
Vibration:	5Grms/10~500Hz, IEC 60068-2-6

Order Info

Downloads

name	code	description	availability
WEBS-3392	tbd	Mini-ITX Intel Atom E3845/J1900 , Q87 Chipset	MP
