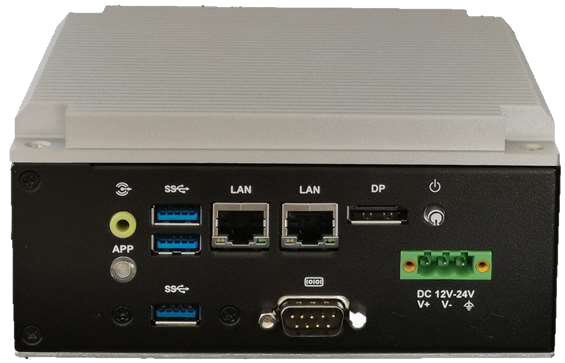

WEBS-21D0E

Embedded rugged fan-less system with Intel Atom E39xx Series based on Nano-ITX board

Small and Exquisite fan-less design
Up to 8GB DRR3L on one 204-pin SO-DIMM
Intel® Apollo Lake SoC Platform
1x 2.5" SATA HDD/SSD, 1x mSATA
1x M.2 socket (type E)
2x Antenna hole for wireless module support
Vibration: 5Grms/10~500Hz

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

The WEBS-21D0E is based on Intel Apollo Lake SoC and takes advantage of Intel Atom Dual/Quad-Core™ E39xx Series processor technologies. Especially its vastly superior Quad-Core™ processing power and capability.

The fan-less WEBS-21D0E supports a wide temperature from 0°C to 50°C for applications in harsh environment, such as Industrial Automation, Transportation, POS, Kiosk and Digital Signage.

Specifications

CPU:	Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Technology:	x86
Miscellaneous:	realtive humidity - 95%@40ºC, non-condensing
Firmware:	AMI UEFI BIOS
Power Requirement:	DC 12V - 24V - reverse power protection
Power:	depends on used CPU
Operating Temperature:	0ºC~50ºC
Storage Temperature:	-40ºC~85ºC
Mounting:	Wall mount, DIN RAIL mounting optional
Dimensions:	150x150x70 mm
Weight:	1.3Kg
Shock:	50G, 11msec, IEC 60068-2-27
Audio:	Line-out (ALC892)
USB:	2x USB 3.0 front 1x USB 3.0 rear
Serial Interface:	1x RS-232/422/485 (selectable by BIOS)
Standard:	Nano-ITX
Chipset:	SoC (System-On-Chip)
Memory:	Up to 8GB DDR3L non ECC
Graphic Controller:	Intel® iGFX HD Graphics Gen9
Graphic Interface:	DisplayPort (DP) (4096 x 2160)
Storage:	1x 2.5" SATA HDD/SSD, 1x mSATA, 1x Micro SD
Ethernet:	2x Gigabit Ethernet (Intel® I210IT)
Expansion:	- One M.2 socket (Type E)
Bus Interface:	1x Mini PCIe™ full size (PCIe, mSATA)
Vibration:	5Grms/10~500Hz, IEC 60068-2-6
