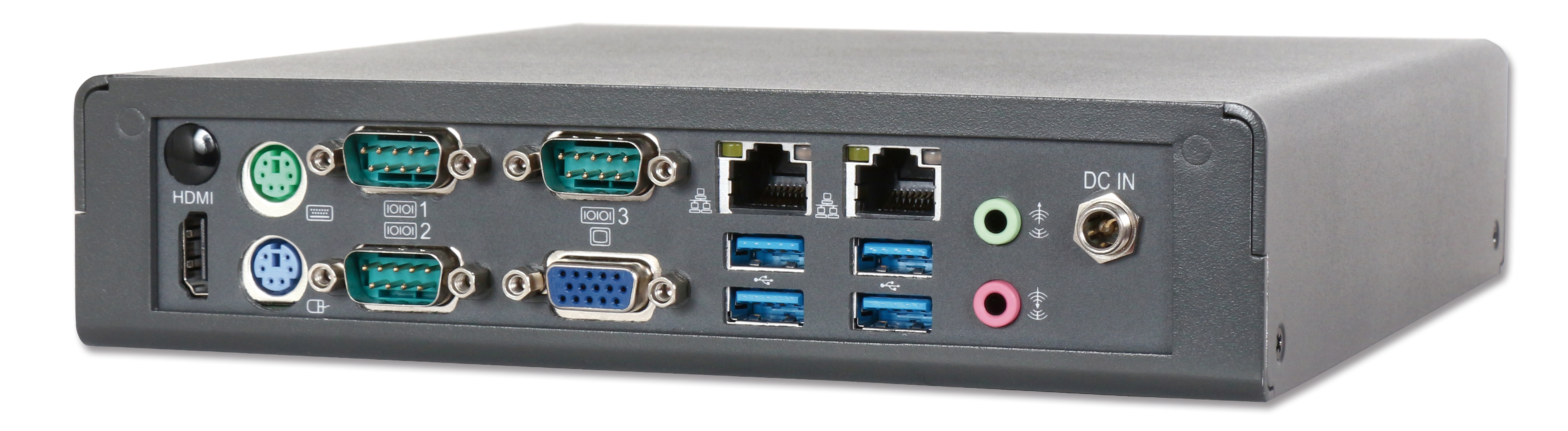

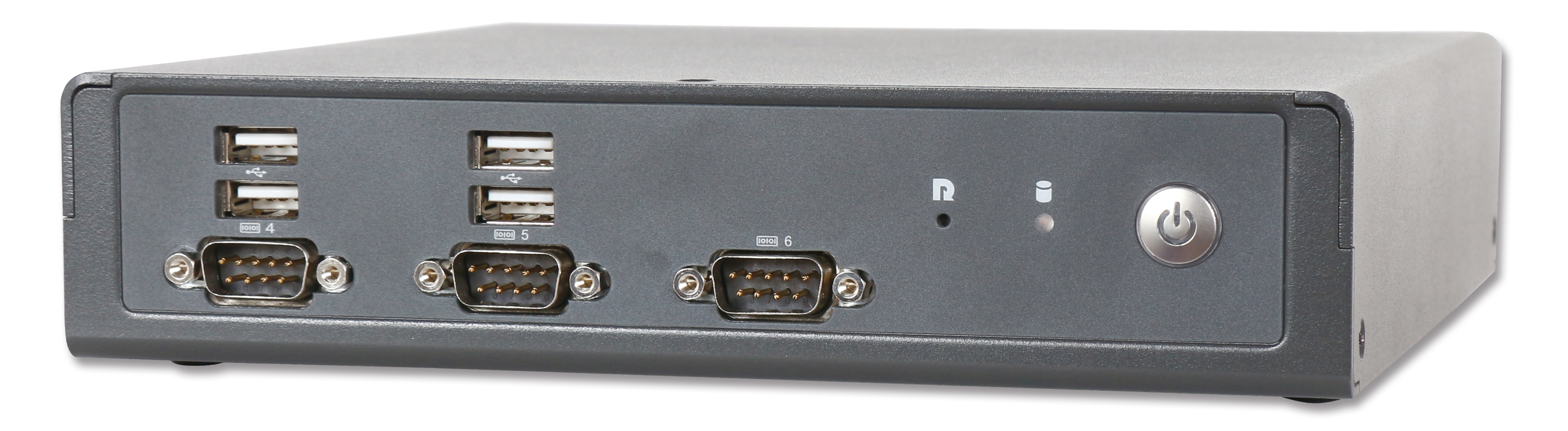

RS4U-8172-M2M
Embedded rugged fan-less system with Intel Pentium processor based Mini-ITX board
  • Fan-less system
  • Intel® Pentium® Processor N3350 suppor
  • Up to 16G DDR3L Dual channel SO-DIMM
  • 1x M.2 SSD and 1x 2.5" HDD/SSD (By Project)
  • 2x RS-232/422/485, 4x RS-232, 4x USB3.0, 4x USB2.0
  • Dual Gigabit Ethernet Ports
Intel
The RS4U-8172-M2M builds on Intel® Pentium® Processor SoC , that can support dual channel DDR3L SO-DIMM memory, support dual Gigabit Ethernet ports, one M.2 socket and one Mini PCIe socket. The RS4U-81720-M2M is ideal platform with rich I/O and high resolution for automation, POS, kiosk and digital signage applications.
CPU: Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W)
Technology:x86
Format:Mini-ITX
Chipset:SoC (System-On-Chip)
DRAM:Up to 16GB DDR3L Dual 204 pin SO-DIMM socket
Display Interface:1x VGA, 1x HDMI
Storage:1x M.2 socket and 1 x2.5" HDD/SSD Support (By Project)
Network:2x Gigabit Ethernet
Expansion:1 x Full size Mini-PCIe socket
Serial Interface:6 x COM (2x RS-232/42/485, 4x RS-232)
USB:4x USB3.0 (Rear), 4x USB 2.0 (Front)
Audio:Line-in/ Line-out
namecodedescriptionavailability
RS4U-8172-M2M-SItbd

Mini-ITX Intel Pentium Processor SoC , dual DDR3L SO-DIMM, dual Gigabit Ethernet ports, one M.2 socket and one Mini PCIe socket

MP
RS4U-8172-M2M-OEMtbd

Embedded rugged fan-less system with Intel Apollo Lake N3350 based Mini-ITX board, 2GB DDR3L SO-DIMM preinstalled, 2x GbE, VGA, HDMI, M.2 socket and Mini PCIe socket,6x COM ports, 8x USB.

MP
