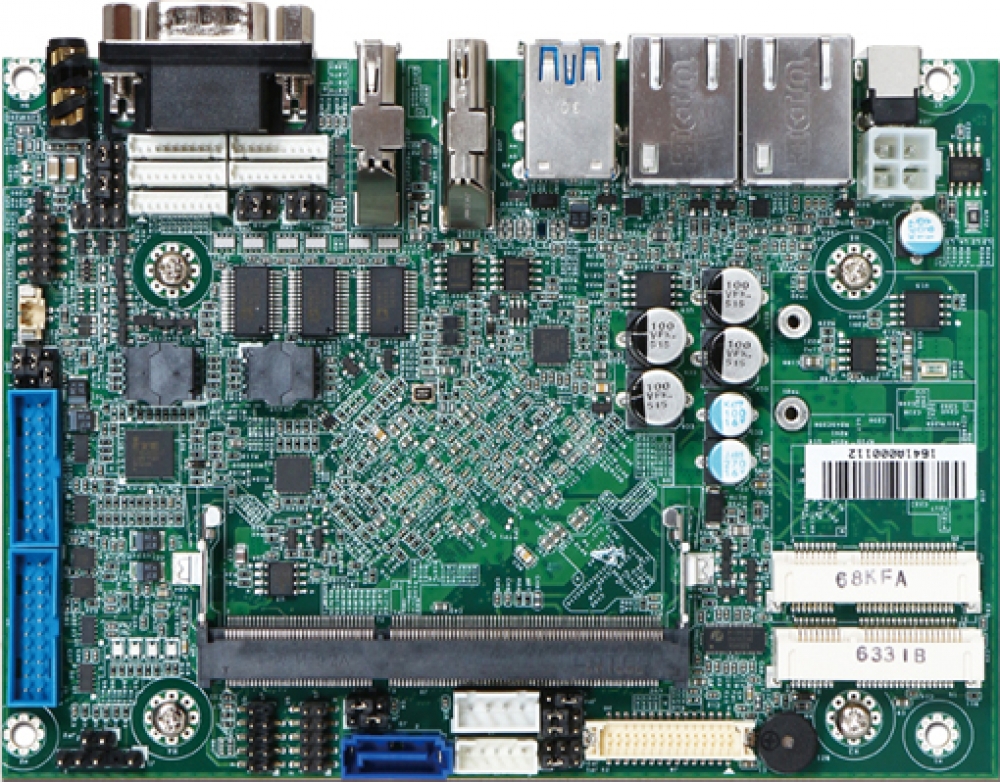

PEB-2773

Intel® Apollo Lake Atom™ Processor based 3.5" Embedded Board with DDR3L SDRAM, Dual Gigabit Ethernet, Dual Mini-PCIe socket, Six COM Ports and 12~24V DC Input

Intel Atom® processor E3900 series
Up to 8GB DDR3L 1866/1600 SODIMM
Triple display via DisplayPort, HDMI and dual-channel 24bit LVDS
1x mini PCIe and 1x mSATA socket
Six COM ports (rear I/O supprting RS232/422/485)
Wide range DC 12V-24V input
Wide industrial temperature range -40C to 85C

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

PEB-2773 build with Intel® Atom™ processor E3900 series. Not only does it operates with a TDP under 12W for fan-less applications, but it also supports the industrial temperature range from -40°C to +85°C and a wide voltage input from 12V to 24V. Support for six USB 3.0 ports ensures fast data transmission with low-power consumption and support six COM ports to allow quick and flexible system expansions. The Intel I210-IT Gigabit Ethernet controllers provides dual Gigabit Ethernet LAN access via the two RJ45 ports. The PEB-2773 can be used for many applications including Medical, Networking, Panel PC, Kiosk and Digital Signage.

Specifications

CPU:	Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Technology:	x86
Format:	3.5"
Chipset:	SoC (System-On-Chip)
DRAM:	1x Up to 8GB DDR3L 1333/1600/1866 MHz SO-DIMM
Graphic Controller:	Intel® HD Graphics 500/505
Display Interface:	DP (4096x216), HDMI (3840 × 2160), dual channel 24-bit LVDS (1920x1200)
Storage:	1x SATA III (6.0 Gb/s), -
Network:	2x Gigabit Ethernet Intel® i210 IT
Expansion:	Full-Size mini PCIe (w/USB, PCle x1)
Bus Interface:	LPC, SPI, SMBus
Serial Interface:	5x RS232, 1 x RS232/422/485
USB:	2x USB 3.0 ports on rear I/O, 4x USB 3.0 ports on board with pitch 3.0 header
Audio:	Realtek ALC892 HDA codec
Security:	optional TPM 2.0 onboard
Miscellaneous:	GPIO 8bit,Watchdog Timer,HW monitoring: temperature & voltage
Firmware:	AMI UEFI BIOS
Power Requirement:	DC 12-24V input
Power from W:	depends on used CPU
Operating Temperature:	-40°C to +85°C
Storage Temperature:	-40°C to +85°C
Dimensions:	146x102 mm

Order Info

Downloads

name	code	description	availability
PEB-2773VGA2ATM-N4200	AB1-3F85Z	3.5" ESB, Intel Apollo Lake SoC on Board (N4200, 1.1GHz, 4C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB	Q4/2017
PEB-2773VGA2ATM-N3350	AB1-3F86Z	3.5" ESB, Intel Apollo Lake SoC on Board (N3350, 1.1GHz, 2C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB	Q4/2017
PEB-2773VG2ATM-E3950	AB1-3F63Z	3.5" ESB, Intel Apollo Lake SoC on Board (X5-E3950, 1.6GHz, 4C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB, ext. temp range	MP
PEB-2773VG2ATM-E3940	AB1-3F64Z	3.5" ESB, Intel Apollo Lake SoC on Board (X5-E3940, 1.3GHz, 4C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB, ext. temp range	MP
PEB-2773VG2ATM-E3930	AB1-3F65Z	3.5" ESB, Intel Apollo Lake SoC on Board (X5-E3930, 1.3GHz, 2C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB, ext. temp range	MP
