The WADE A8212 is based on Intel® W480E chipset and Desktop processors including Intel® 10th Gen Core ™i3/i5/i7/i9 SKU. This board supports DDR4, PCIe Gen 3, and SATA III. Those features help you to build high performance and stable systems.

• Specifications

CPU:	Intel® Xeon® W-1290TE Processor (10 x 1.80 GHz / 4.50 GHz, 20 MB Intel® Smart Cache, 35W) Intel® Xeon® W-1270TE Processor (8 x 2.00 GHz / 4.40 GHz, 16 MB Intel® Smart Cache, 35 W) Intel® Xeon® W-1270E Processor (8 x 3.40 GHz / 4.80 GHz, 16 MB Intel® Smart Cache, 80 W) Intel® Xeon® W-1250TE Processor (6 x 2.40 GHz / 3.80 GHz, 12 MB Intel® Smart Cache, 35 W) Intel® Xeon® W-1250E Processor (6 x 3.50 GHz / 4.70 GHz, 12 MB Intel® Smart Cache, 80 W) Intel® Pentium® Gold G6400TE Processor (2 x 3.20 GHz, 4 MB Intel® Smart Cache, 35 W) Intel® Pentium® Gold G6400E Processor (2 x 3.80 GHz, 4 MB Intel® Smart Cache, 58 W) Intel® Celeron® Processor G5900TE (2 x 3.00 GHz, 2 MB Intel® Smart Cache, 35 W) Intel® Celeron® Processor G5900E (2 x 3.20 GHz, 2 MB Intel® Smart Cache, 58 W) Intel® Core™ i5-10500E Processor (6 x 3.10 GHz / 4.20 GHz, 12 MB Intel® Smart Cache, 65 W) Intel® Core™ i5-10500TE Processor (6 x 2.30 GHz / 3.70 GHz, 12 MB Intel® Smart Cache, 35 W) Intel® Core™ i7-10700E Processor (8 x 2.90 GHz / 4.50 GHz, 16 MB Intel® Smart Cache, 65 W) Intel® Core™ i7-10700TE Processor (8 x 2.00 GHz / 4.40 GHz, 16 MB Intel® Smart Cache, 35 W) Intel® Core™ i3-10100TE Processor (4 x 2.30 GHz / 3.60 GHz, 6 MB Intel® Smart Cache, 35 W) Intel® Core™ i3-10100E Processor (4 x 3.20 GHz / 3.80 GHz, 6 MB Intel® Smart Cache, 65 W) Intel® Core™ i9-10900E Processor (10 x 2.80 GHz / 4.70 GHz, 20 MB Intel® Smart Cache, 65 W) Intel® Core™ i9-10900TE Processor (10 x 1.80 GHz / 4.50 GHz, 20 MB Intel® Smart Cache, 35 W)
Storage Temperature:	- 4040°C ~ +85 85°C
Operating Temperature:	0°C ~ + 60°C
Power Requirement:	ATX PWR (24+8-pin)
BIOS:	AMI® 256Mbit SPI
Audio:	Realtek ALC887 HD Audio Jack, Line In / Line Out /
USB:	4x USB 3.2 Gen2 2x USB 2.0
Expansion:	3 x PCIe Gen3 Slots (PCIE1 / PCIE2 / PCIE3: Single at x16 (PCIE1); Dual at x8 (PCIE1) / x8 (PCIE3); Triple at x8 (PCIE1) / x4 (PCIE2) / x4 (2 x PCIe x4 (Gen3) 2 x PCI 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB 2.0 1 x SIM socket connected to M.2 key B
Network:	Intel® I219LM and Intel® I225LM Ethernet controller 2x RJ45 connectors on rear I/O
Storage:	4x SATAIII ports (6Gb/s)
Display Interface:	DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz
Graphic Controller:	Integrated Intel® HD Graphics
Ethernet I/O Interface:	Intel® I225LM 1x RJ 45 with 10/100/1000/2500 Mbps Intel® I219LM 1x RJ 45 with 10/100/1000Mbps, supports AMT / vPro 2x RJ45
Chipset:	Intel® W480E
Form Factor:	ATX (12 in x 9.6 in)
Dimensions:	170x170x16 mmm
GPIO:	8x GPI, 8 x GPO (shared with LPT header)
Super I/O:	Fintek F81966A (BGA type, eSPI interface)
Memory:	Max. 64GB DDR4 Dual Channel (32GB per module) Intel Xeon W 1200 series & Core i9 / i7 CPUs support DDR4 up to 2933 MHz Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Relative_Humidity:	5% ~ 90% (operating, non condensing) 5% ~ 90% (non operating, non condensing)

• Order Info

name	code	description	availability
WADE A8212 W480E	AB1-3K30	Mini ITX, LGA1200 socket for the 10th Gen CPU, Q470E an W480E chipset	MP

• Downloads
Show all
• BIOS
  • restricted
    • W480EI-IM-A_ASUS_10600.zip
• Certificates
• Datasheet
  • WADE-A8212-W480E.pdf
• Drawing
• Driver
  • restricted
    • Audio.zip
    • CHIPSET.zip
    • LAN_I219LM.zip
    • MEI.zip
    • RAID.zip
    • SIO_driver.zip
    • VGA.zip
• Embedded_Controller
• Manual
• Pictures

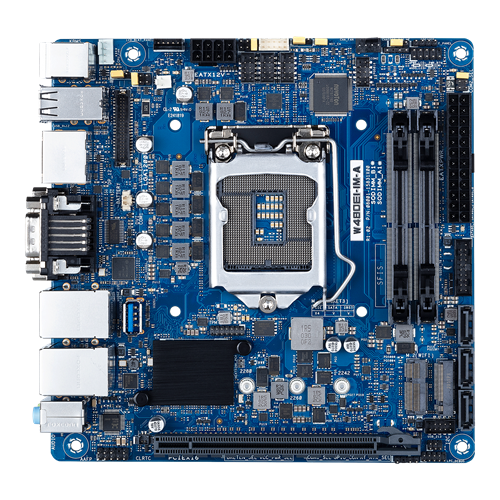

  • 28apa3too0eav3w1_setting_xxx_0_90_end_500.png

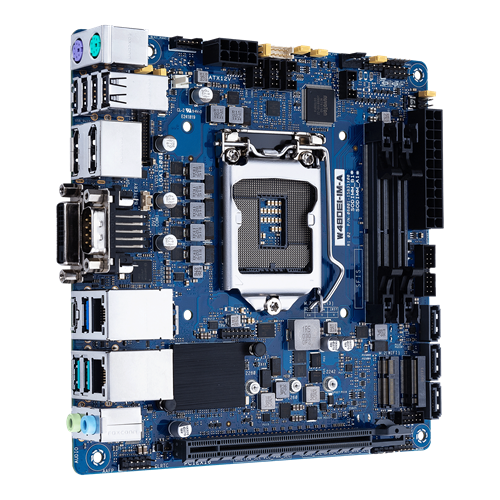

  • 55ufe1t3ygsnb3ta_setting_xxx_0_90_end_500.png

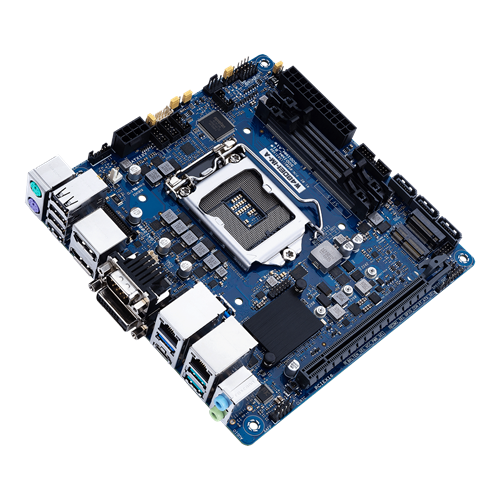

  • hcugaui3ahxnl98s_setting_xxx_0_90_end_500.png

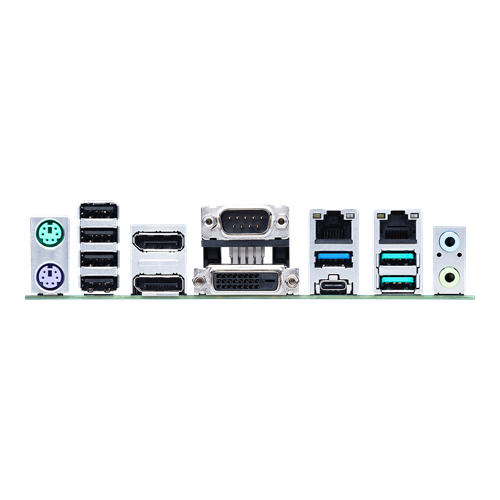

  • phbtkkcrc38vjkam_setting_xxx_0_90_end_500.png
