In the IPC market, a robust and highly reliable Panel PC system is essential for ensuring continuous and stable operations on production lines. By enhancing performance and power efficiency, the FUDA3 Series serves as an ideal HMI platform for factory automation, the food and beverage industry, vending machines, and semi-outdoor environments.

The FUDA3 Panel PC Series builds on the success of Portwell’s FUDA and FDUA2 Panel PCs, which have been widely adopted in industrial markets such as factory and machine automation. Leveraging our proven design and marketing expertise, the FUDA3 Panel PC Series offers IPC customers enhanced HMI solutions with high performance and low power consumption. Powered by the Intel Atom® x7-E3950 processor, it supports extended temperature ranges and flexible I/O connectivity within a 12-watt thermal design power (TDP). This makes the FUDA3 Panel PC Series an ideal platform for applications requiring efficient image signal processing, secure content delivery, and visually appealing HMI thin clients.

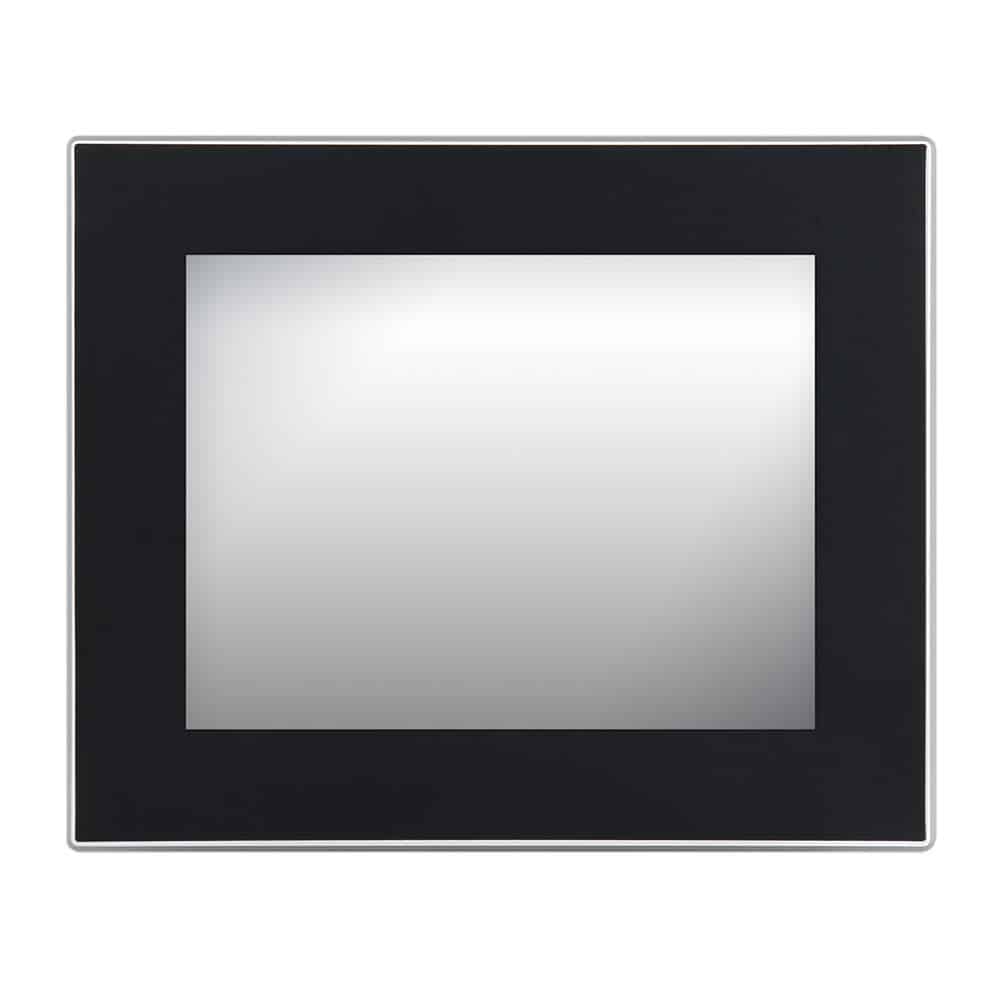

The FUDA3-S1X22 Series features a Projected Capacitive (PCAP) multi-touch screen providing high responsiveness, optical clarity, and durability in diverse industrial-grade settings.

• Specifications

CPU:	Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W)
LCD:	FUDA3-S1022: 10.4" FUDA3-S1222: 12.1" FUDA3-S1522: 15"
Resolution:	XGA 1024 x 768
Brightness:	FUDA3-S1022 & FUDA3-S1522: 450 cd/m² FUDA3-S1222: 600 cd/m2
Contrast Ratio:	FUDA3-S1022: 3000:1 FUDA3-S1222 & FUDA3-S1522 : 700：1
Backlight Unit:	LED type
Power Consumption (Max):	Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz)
Touch:	Touch Window: Projective Capacitive Multi-Touch (10 points)
Processor:	Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz)
Memory:	DDR3L SO-DIMM 1866 MHz up to 8 GB
Firmware:	AMI
Graphics:	Intel® Gen HD Graphics 505
LVDS:	Single/ Dual Channel 24-bit
LAN Chipset:	Dual Intel® Gigabit Ethernet Chipset
Watchdog Timer:	Programmable 1 ~ 255 sec
Storage:	1 x 2.5″ SATA HDD / SSD, 1 x Mini-mSATA
OS Support:	Windows 10/ Linux™
Serial Interface:	2 x RS-232/422/485 (Expansion : Option 0)
USB:	FUDA3-S1022: 1 x USB OTG, 2 x USB 3.0 FUDA3-S1222 & FUDA3-S1522: 1 x USB OTG, 2 x USB 3.0, 2 x USB 2.0 (Expansion: Option 0)
Ethernet:	2 x Gigabit Ethernet
Other:	1 x SMA Antenna hole for WiFi/LTE Solution

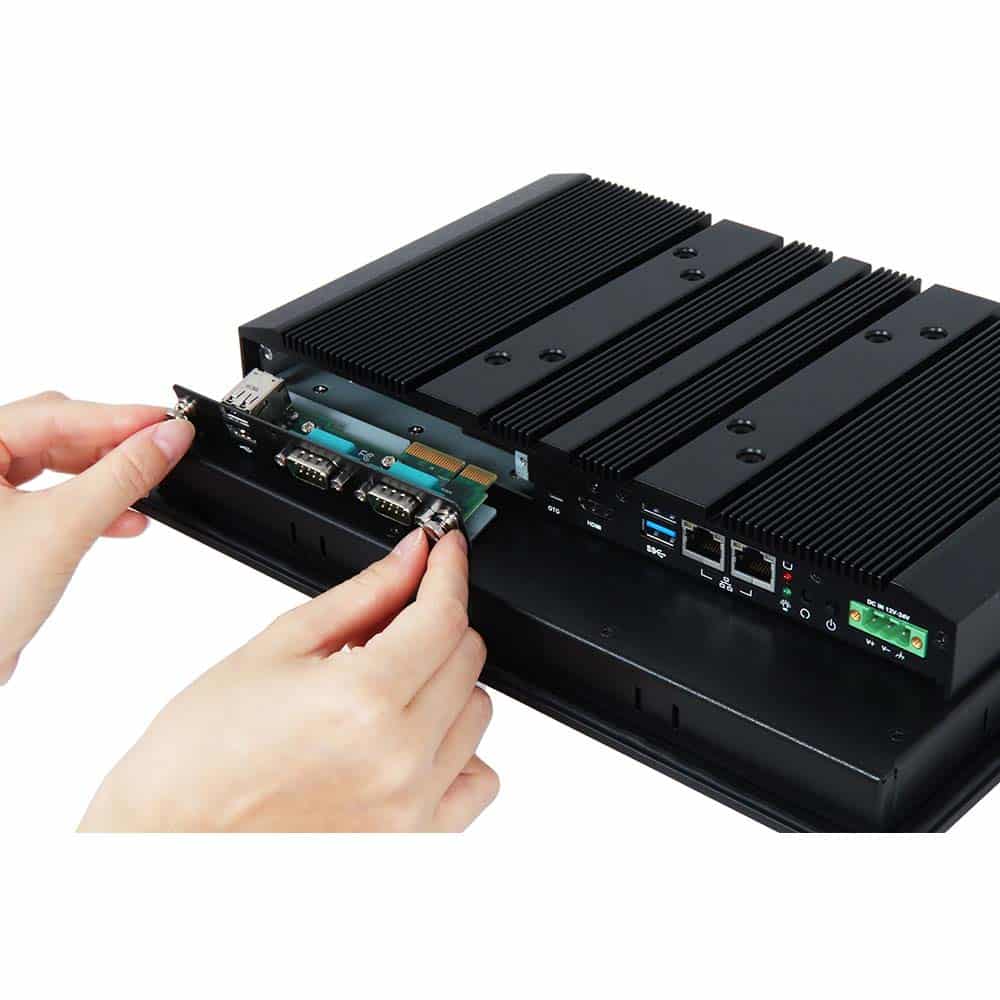

Expansion:	FUDA3-S1022 -1 x Full-size Mini-PCIe socket -1 x Half-size Mini-PCIe/Mini-mSATA socket -switch by jumper   FUDA3-S1222 & FUDA3-S1522 -1 x Full-size Mini-PCIe socket -1 x Half-size Mini-PCIe/Mini-mSATA socket switch by jumper -2 x RS-232/422/485, 1 x RS-232 (Expansion: option 1)

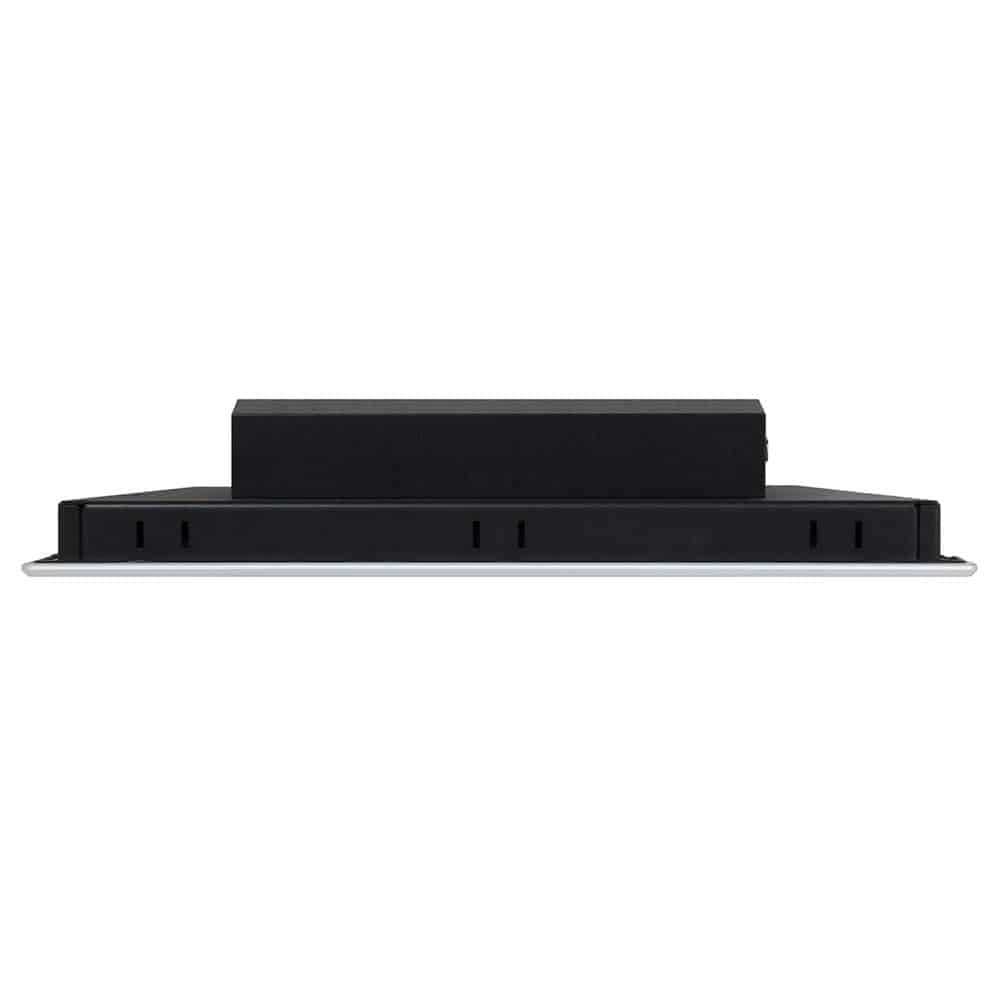

Dimension:	FUDA3-S1022: 282 x 238 x 57.3 mm FUDA3-S1222: 305 x 260 x 58.2 mm FUDA3-S1522: 384 x 310 x 56.6 mm

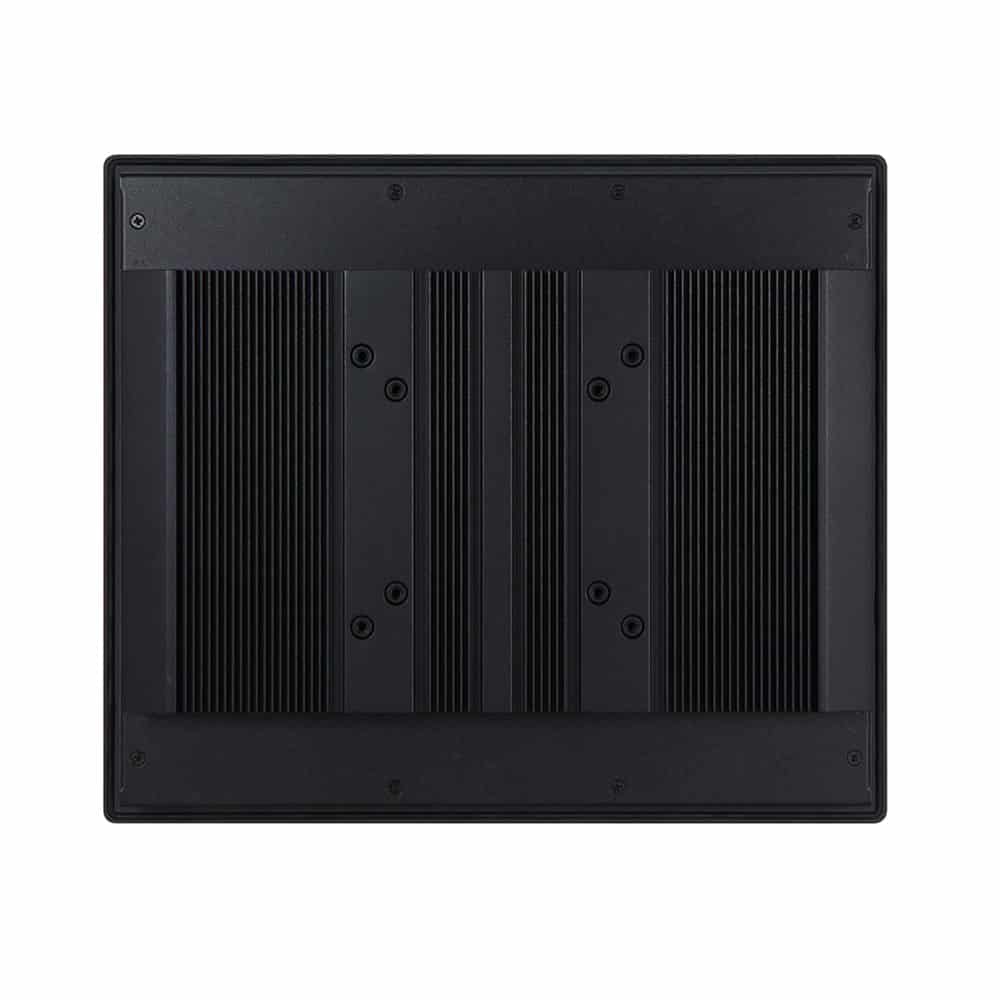

Mounting:	VESA Mount 75 x 75& 100 x 100; Panel Mount
Weight:	Weight (Kg)(N): FUDA3-S1022: 3.5 Kg FUDA3-S1222: 3.9 Kg FUDA3-S1522: 5.1 Kg
Weight:	Weight (Kg)(G) FUDA3-S1022: 5.8 Kg FUDA3-S1222: 10.3 Kg FUDA3-S1522: 7.8 Kg
Power Supply:	DC 12 ~ 24V input with 3-pin Terminal Block Connector
Power Consumption (Max):	Maximum: FUDA3-S1022: 33.5W (12V); 33.6W (24V) FUDA3-S1222: 40.9W (12V); 39.4W (24V) FUDA3-S1522: 40.5W (12V); 40.2W (24V)
Power Requirement:	Minimum: FUDA3-S1022: 11.8W (12V); 14W (24V) FUDA3-S1222: 12W (12V); 12.3W (24V) FUDA3-S1522: 11.2W(12V); 12W (24V)
Storage Temperature:	-25°C ~ 60°C / -40°C ~ 85°C (20 ~ 90% non-condensing)
Drop:	Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard
Vibration:	1.0G (SSD) and 0.5G (HDD) , Power on ; 2.16G, Packaged; 5~500Hz, IEC 60068-2-6
Shock:	15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
IP Protection:	IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificates:	CE/FCC Class A, UKCA, EN 62368-1, EN 61000-6-2 , EN 61000-6-4
