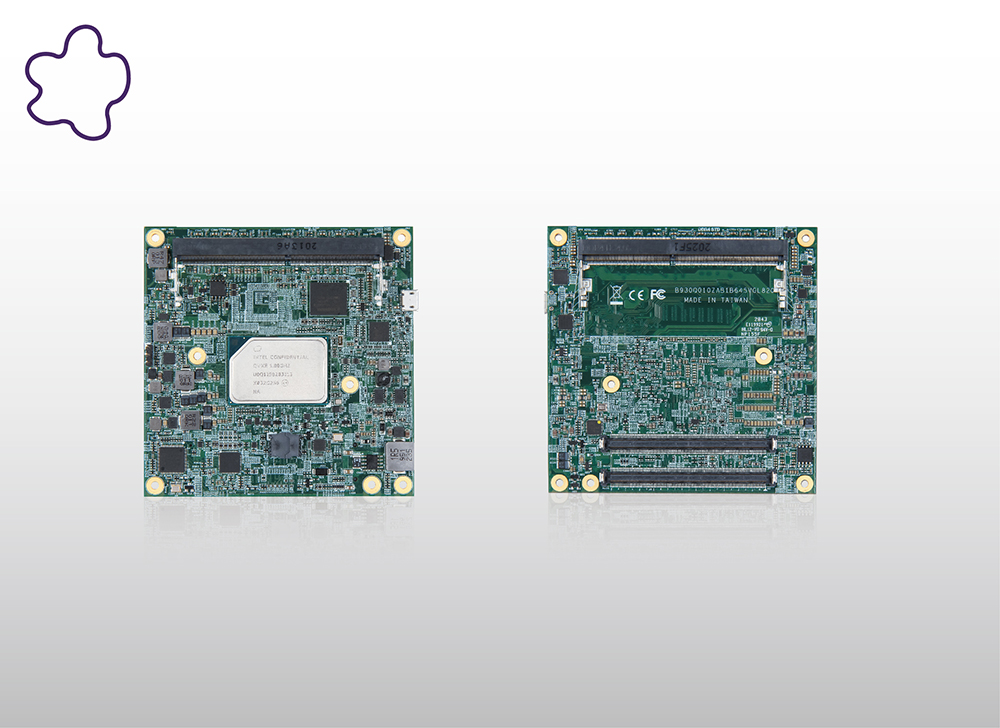

Nieuw Vennep, Netherlands, September 7th, 2021 Portwell (www.portwell.eu) a world-leading innovator for Industrial PC (IPC) and embedded computing solutions, and an IoT Solutions Titanium Partner of the Intel Partner Alliance, announces the release of the PCOM-B645VGL, a COM Express Type 6 Compact (95mm x 95mm) module based on the 10nm Intel Atom x6000E Series/Pentium/Celeron Processors (formerly Elkhart Lake platform), supports up to 4 cores with 4.5W—12W TDP and integrates the Intel Gen 11 UHD Graphics Engine with triple displays support in 4K resolution. The PCOM-B645VGL COM Express module includes wide range of optional I/O flexibility like Gen 3 PCI-Express with mature eco-system. The PCOMB645VGL is designed to enable application using Type 6 COM Express products to rapidly upgrade their systems without changing existing carrier boards or entire computer system and minimize the changes in software. This latest offering provides a boost to the performance of customers' existing systems and prolongs service life for another 10+ years, maximizing their return on investment.
High Speed I/O for Fast Data Transmission
The PCOM-B645VGL COM Express module supports up to 32GB DDR4 3200MT/s SDRAM on two 204- pin SO-DIMM sockets with integrated In-Band ECC (IBECC) feature that allows more affordable standard memory to be used instead of higher cost ECC memory (ECC or Non-ECC can be configured by BIOS), and up to 3.0 GHz in turbo mode, increasing cost-performance effectiveness. It also offers 2x USB 3.2 Gen 2 (10Gb/s), 2.5GbE with the support of Intel Time Sensitive Networking (TSN) and Time Coordinated Computing (TCC) for real-time computing and control capability, and 6 x PCI Express x1 Gen 3 (8.0GT/s) expansion interfaces. According to Sid Huang, Portwell's product manager describes, this is the first time PCIe Gen 3 available in the lower-power processors, and they could fulfill most applications that need great expandability and higher throughput such as Wi-Fi, Bluetooth, NVMe module and more. In addition, PCOMB645VGL also supports triple 4K high resolution display including DP/HDMI, LVDS/eDP and VGA and delivers up to 2x faster graphics performance compared to previous generation.
Efficient Upgrade and Effective Energy Management
“When designing the PCOM-B645VGL, we applied the successful modular computing concept of our COM Express form factor and came out with an even more compact, efficient and economical combination.” said by Sid Huang. “The ultra-low power Intel Atom processor x6000E family is housed on the PCOM-B645VGL module board. In this design,” He explains, “we are able to maximize Computer-On-Module (COM) technology to produce a unit that not only outputs under 4.5W~12W for fan-less applications, but also supports a wide -40ºC to 85ºC industrial temperature range and wide voltage input from 9V to 18V. The PCOM-B645VGL conserves energy resources, minimizes carbon impact and keeps its energy budgets under control.” Overall, the compact and rugged PCOM-B645VGL is ideal for mission critical application in harsh environments, and applications such as industrial automation, factory automation, process control, embedded system for IIoT, edge computing, manufacturing, intelligent gateway, transportation.
Design and Customization Services for Broad Applications
The Computer-on-module has been enhanced by Portwell in response to market demand for an even lower power platform to take advantage of the Intel Celeron/Pentium/Atom processors compact design. Since its initial inception, Portwell’s expanding Intel Atom processor-based COM portfolio has now grown to include industrial temperature range support. Portwell’s versatile COM Express modules adapt to these changes by enabling designers to partition commodity host-processors from proprietary baseboards, thereby minimizing current and future design risks during the initial phase of development. This design of separating the CPU-upgradable module from system specific I/O carrier boards further safeguards development investments and lowers total cost of ownership. In addition, Portwell can also provide services to clients on the carrier board design and development, review schematics and BIOS customization. At Portwell, we strive to create superior products for our customers
