1U Rackmount Network Appliance
  • Intel® Xeon® D-1800/D-1700 Series SoC
  • 4x DDR4 2933MHz RDIMMs up to 256GB
  • 6x 2.5GbE Copper ports with 2 pairs bypass
  • 2x 25GbE SFP28 Fiber ports
  • 2x 2.5” HDD/SSD, 1x M.2 Key M 2280
  • 2x M.2 Key B 3052 for 4G/5G/LTE module
  • On-board TPM 2.0 for security
We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

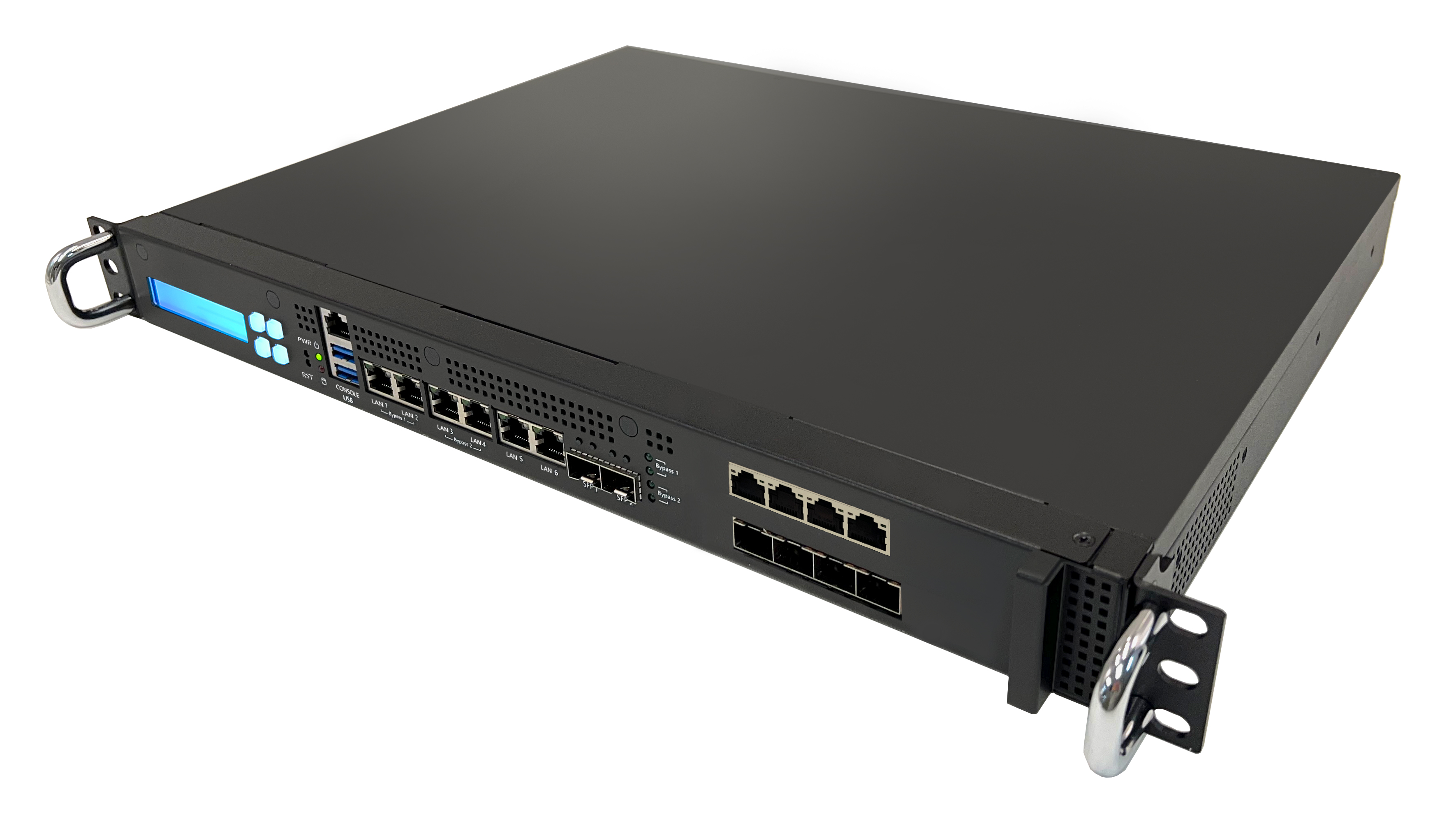

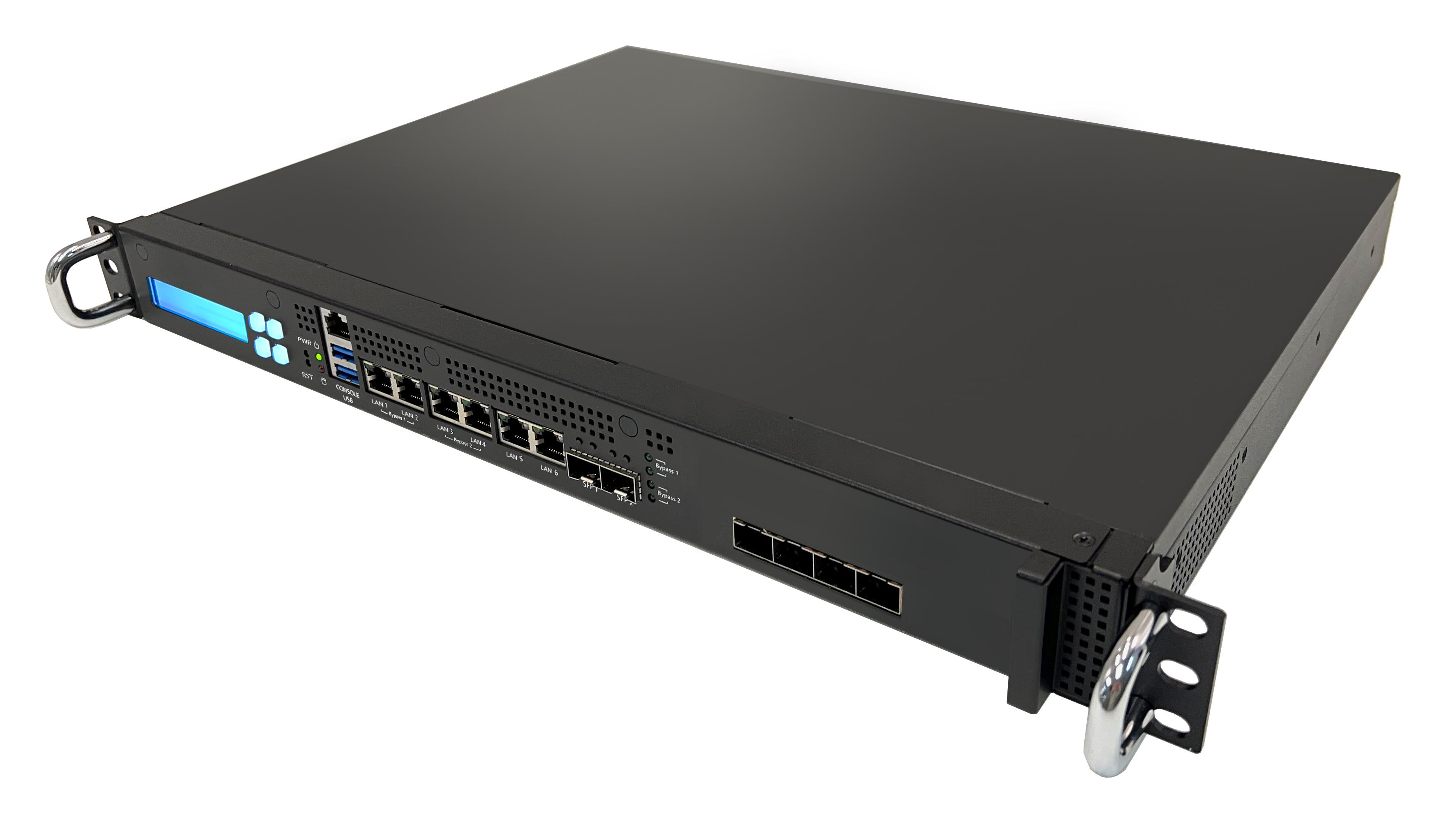

Portwell's PNSR-5000 is a 1U Rackmount network appliance powered by the Intel® Xeon® D-1800 and D-1700 processors (codenamed Ice Lake-D LCC), featuring up to 10 cores, PCIe Gen 4 and more high speed I/Os.

The PNSR-5000 supports two channels DDR4 RDIMM/UDIMM (up to 2933MHz) and maximum memory capacity up to 256GB. With 16 PCI Express Gen 4 lanes, the PNSR-5000 can support 2 NIC modules, support multiple Ethernet module bays for flexible port configuration; such as 1/10/25/40 Gigabit fiber, Gigabit copper with BYPASS function or not. The OCP 3.0 and standard PCIe convertible slot design makes expansions more flexible and easier. PNSR-5000 also natively supports two 10/25GbE SFP+/SFP28 with up to 50 Gigabit throughput and six 2.5GbE copper on-board with BYPASS function.

The strong I/O elements of PNSR-5000 include a console port, two USB 3.2 Gen 1 ports, a Graphic LCD module with keypad (4 keys), LEDs for power/ HDD/ Bypass/ SFP28 ports. In addition, the PNSR-5000 also supports two 2.5” SATA HDDs/SSDs, on-board one M.2 2280 for network storage application and two M.2 3052 slots for 4G/5G/LTE wireless modules.
