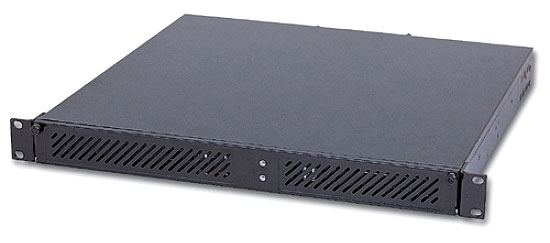

PRC-1194
19" 1U Height industrial rack-mount P4 chassis
  • Single power supply with higher +12V output for Pentium® 4 processor
  • Cooling tunnel design for expiring heat generated by CPU
  • Power cable routed beneath the cooling tunnel to avoid disturbance of air path
  • Two PCI expansion slots for adding more functions to system
PRC-1194, 19” 1U Rack-mount chassis with 3-slot (2xPCI) PICMG backplane and 250W PFC power supply.
Construction:Heavy-duty steel
Drive_Bay_internal:2x 3.5" HDD
Drive_Bay_external:External: NB CD-ROM x1 (or equivalent CD-RW / DVD-ROM) + NB FDD x1 Internal: 3.5" HDD x2
Cooling_Fan:One 12cm ball-bearing fan
Indicator:Power on/off x1, HDD x1
Switch:Power on/off x1, System reset x1
Connector:Two USB connectors on the front panel, reserved one COM port cutout
Standard_Color:Black
Dimension:481 x 429 x 44 mm
Weight:Net: 10 kg; Gross: 13 kg
Backplane:PBP-03P2X: 3-slot (2xPCI) PICMG backplane
Input Voltage:90V ~ 264V AC, full range
Input Frequency:47 ~ 63Hz
Input Current:6A@115V, 3A@230V
Efficiency:> 65%
MTBF:105,405 hrs
EMI_Safety_Approval:UL, cUL, TVU, CE, FCC
Temperature_Humidity:Operating: 0°C  ~ 50°C , 20 ~ 85%RH Storage: -20°C  ~ 70°C , 10 ~ 90%RH
Operating Temperature:0°C ~ 55°C
Storage Temperature:-20°C to 80°C
Relative_Humidity:5% ~ 95°%, non-condensing
Vibration:"5~7 Hz: 0.5"" double amplitude displacement 7~2000 Hz: 1.5g acceleration"
namecodedescriptionavailability
PRC-1194/BLACKAC1-2697

19" Rack Mount, 1U, Black, 4 Drive Bay

MP
PRC-1194-03P2X-A2501/BACA-2054

19" Rack Mount, 1U, Black, 4 Drive Bay, 3 Slot BP, 250W PSU

MP
PRC-1194-P13/BPRC-1194-P13/BACA-2054

19" Rack Mount, 1U.Black, PRC-1194-P13/B

PRC-1194-P13-03V-2501PJACA-3899

19" Rack Mount, 1U, Black, 4 Drive Bay, 3 Slots BP, 250W PSU

MP
