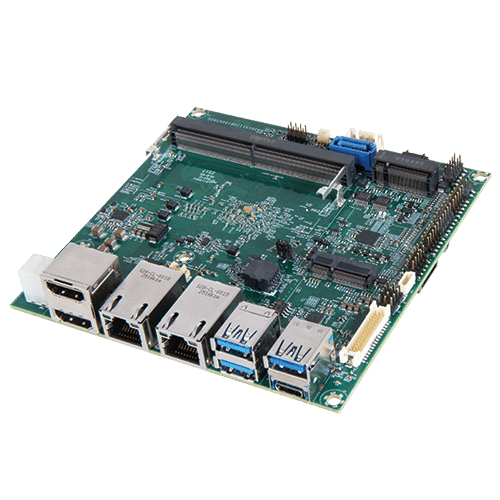

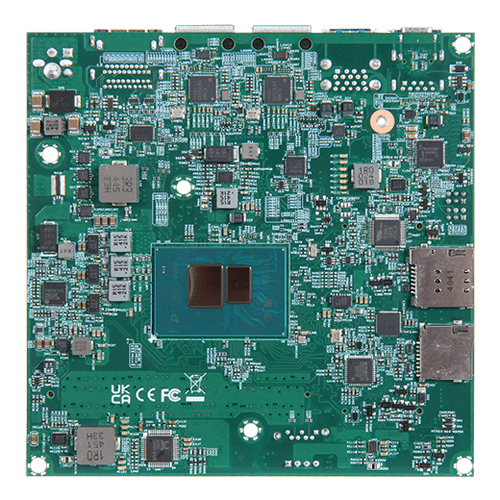

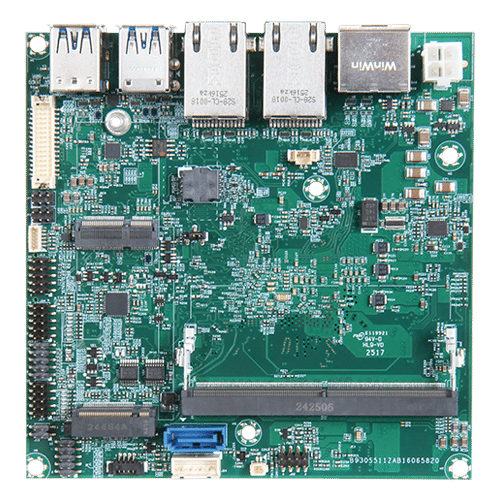

NANO-6065 is a Nano-ITX embedded board powered by Intel® Core™ Processor N-series, Intel® Processor N-series (formerly Twin Lake), and Intel Atom® x7000RE Series Processors (formerly Amston Lake). Designed for low power consumption and high efficiency, the platform supports a range of advanced Intel® technologies.

These include Intel® Gaussian & Neural Accelerator (GNA) for AI workloads, Intel® Image Processing Unit (IPU) for enhanced visual input, and Intel® Smart Sound Technology (SST) for high-quality audio processing—among other features that enable intelligent edge computing. With its compact form factor and rich I/O, the NANO-6065 is an ideal foundation for building robust IoT solutions across medical, retail, and digital signage applications.

• Specifications

CPU:	Intel Atom® x7835RE Processor (8 / 3.6 GHz, 6 MB, 12 W) Intel® Processor N150 (4 / 3.6 GHz, 6 MB Intel® Smart Cache Intel® Core™ 3 Processor N355 (8 / 3.9 GHz, 6 MB Intel® Smart Cache
Firmware:	AMI UEFI BIOS
Memory:	- 1x DDR5 4800MT/s SO-DIMM up to 16GB - Support In-Band ECC
Storage:	- 1x SATA III - 1x Micro SD socket
Watchdog Timer:	Programmable Watchdog Timer, time out period from 0.5 sec to 254.5 secs
Expansion:	- 1x M.2 E Key 2230 (USB/ PCIe) - 1x M.2 B Key 3052/2280 (USB/ PCIe/ SATA)
Audio:	- HDA controller integrated in Intel® SoC - Realtek ALC897 HDA codec - On board pin header (line-in, line-out, mic-in)
Ethernet:	- 2x Intel® 2.5GbE Controller - 2x RJ45 connectors on rear I/O
Serial Interface:	- 2x RS-232/422/485 on board pin header (selectable via BIOS)
Other:	- TPM 2.0 on board - 8x GPIO
USB:	- 3x USB 3.2 Gen2 Type A on rear I/O - 1x USB 3.2 Gen2 Type C on rear I/O (Supports DP 1.4a display output / USB device mode)
Graphic Interface:	- HDMI: 2x HDMI port on rear I/O (HDMI 2.0b, 4096x2160 @ 60Hz) - DP: Type C port on rear I/O (DP 1.4, 4096x2304 @ 60Hz) - *LVDS: 1x LVDS on board connector (*Optional, available upon request with MOQ requirement)
Graphic Controller:	Intel® Graphics with up to 32 Eus
Dimension:	120mm(L) x 120mm(W), 4.72"(L) x 4.72"(W)
Power:	DC 12-24V input
Relative Humidity:	- Operating temperature: 0°C~60°C (SKU:N355 & N150) - Operating temperature: -40°C~85°C (SKU:X7835RE) - Storage Temperature: -40°C~85°C - Relative Humidity: 5~95%, non-condensing
