WADE-8172

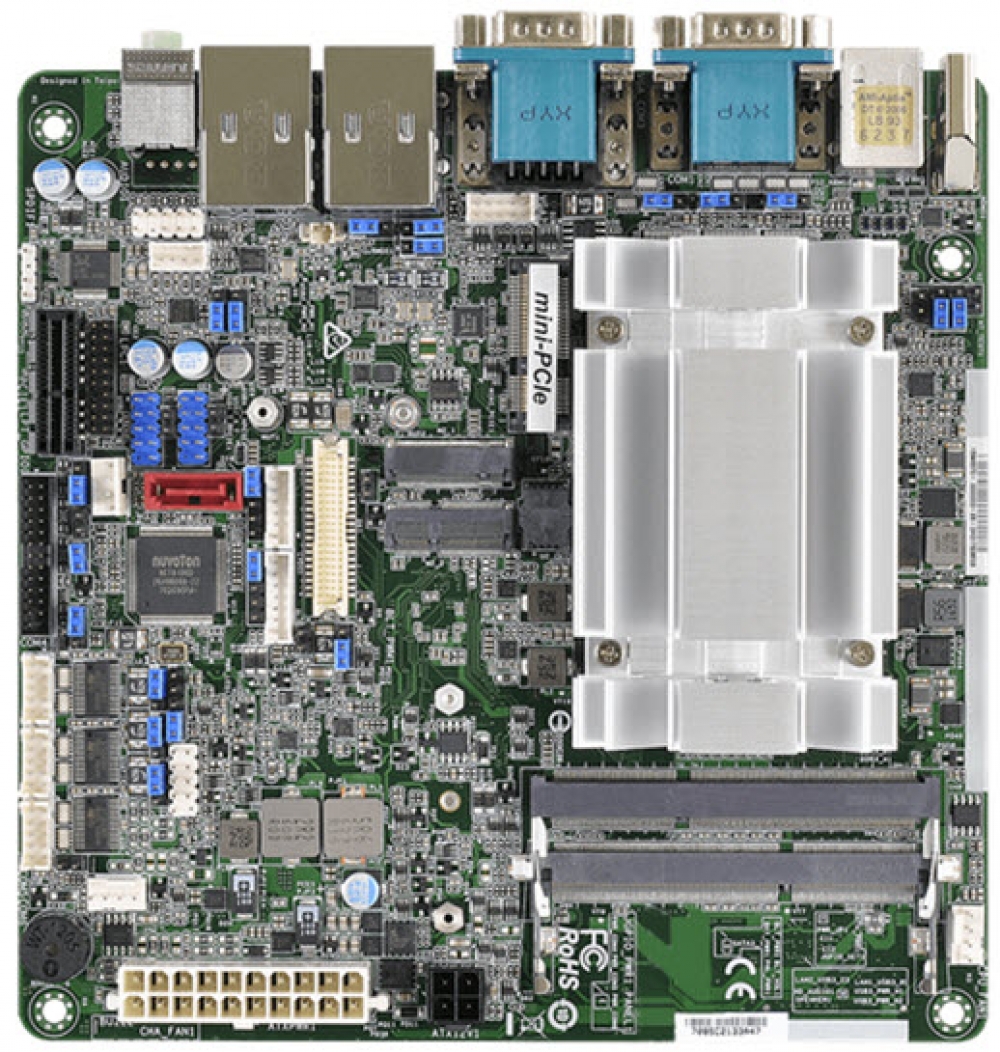

Intel® Celeron® Processor N3350 Based Mini-ITX Board with VGA, HDMI, LVDS, Dual GbE, USB 3.0, SATA III, Mini PCIe, M.2
  • Intel® Apollo Lake SoC Processor
  • Up to 8GB Dual Channel DDR3L 1333/1600MHz, 2 x SO-DIMM
  • 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
  • 4 xUSB 3.0, 4 x USB 2.0, 1 x SATA3 port
  • Supports 1x mini-PCIe, 2x M.2 socket(KEY M & KEY E)
Mini-ITXIntel
WADE-8172 is based on Intel® Celeron® processor N33350. With dual-channel DDR3L memory and rich I/O sets, WADE-8172 empowers energy-efficient solutions for point-of-sale (POS) and industrial automation applications.
CPU: Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W)
Technology:x86
Format:Mini-ITX
Chipset:SoC (System-On-Chip)
DRAM:Up to 8 GB DDR3L 1060/1333 MHz memory (non-ECC) on 2x204-pin, SODIMM socket
Graphic Controller:Integrated Intel® Generation 9 Graphics, Supports DirectX 12, OpenGL 4.2, OpenCL 2.0
Display Interface:VGA: resolution up to 1920x1200, DVI: resolution up to 1920x1200, DP: resolution up to 2560x1600, LVDS: resolution up to 1600x1200
Storage:1x SATA III ports, 1x M.2 socket (KEY M 2260/2280) with SATA signal for SSD
Network:2x RJ45 connectors on rear I/O (Realtek®  RTL8111G)
Expansion:1x PCIe x1 slot, - 1x Half size Mini-PCIe(support PCIe & USB signal)
Bus Interface: 1x PCIe x1 slot (Gen2, 5GT/s), 1x M.2 socket (KEY E 2230) with PCIe x1 and USB(shared) for Wireless, 1x full/half size Mini PCIe socket with PCIe x1 and USB(shared)
Serial Interface:1x RS232 port on rear I/O, 1x RS232/422/485 selectable port on rear I/O, 2x RS232 with header
USB:1x USB 3.0 Ports on rear I/O, 2x USB 2.0 Ports on rear I/O, 2x USB 2.0 Ports on board
Audio:Intel® High DefinitionAudio interface Realtek® ALC887 High DefinitionAudio, 1x jumbo jack support Line-out/Mic-in
Miscellaneous:Programmable watchdog timer, time out period from 1 sec to 255 secs., Hardware monitoring - Temperature (CPU & System), Voltages (CPU Vcore, 12V, 5V, 3.3V, RAM)
Firmware:Phoenix(EFI) BIOS
Power Requirement:12 - 24V DC input or ATX power input
Operating Temperature:0°C - 60°C
Storage Temperature:-20~80˚C
Dimensions:170x170 mm
namecodedescriptionavailability
WADE-8172-N3350AB1-3F78

Mini-ITX ESB with Intel Atom N3350, DDR3L SO-DIMM/ LVDS/VGA/HDMI/COM/Audio/USB, 2xGbE

MP
